- Page 1 VT-M2M-C335 VT-M2M-C335 User’s Manual Vantron Technology www.vantrontech.com All Rights Reserved...
- Page 2 VT-M2M-C335 Revision History: Version Description Date V1.0 First release 2018.6.5 V2.0 release 2018.9.26 V3.0 release 2019.3.1 All Rights Reserved...
-
Page 3: Table Of Contents
1.7 Precautions ..........................5 1.8 Safety Instructions for Power Cables and Accessories ............... 5 2 Overview ............................7 2.1 Introduction ..........................7 3 VT-M2M-C335 Hardware Instructions ..................... 8 3.1 Product Appearance ........................8 3.2 Specifications ..........................9 3.3 Dimension ..........................11 3.4 Interface Description ........................ -
Page 4: Foreword
Vantron reserves all rights of this manual, including the right to change the content, form, product features, and specifications contained herein at any time without prior notice. -
Page 5: Limitation Of Liability/Non-Warranty
1.5 Limitation of Liability/Non-warranty For direct or indirect damage to this device or other devices of Vantron caused by failure of conforming to this manual or the safety instructions on device label, Vantron assumes neither warranty nor legal liability even if the device is still under warranty. - Page 6 Do not try cleaning exposed electronic components unless with a dust collector. Support for special fault: Power off and contact technical support personnel of Vantron in case of the following faults: The device is damaged. The temperature is excessively high.
-
Page 7: Overview
VT-M2M-C335 2 Overview 2.1 Introduction Thank you for choosing Vantron. It is our commitment to provide our valued customers with the embedded devices equipped with the state-of-the-art technology and the best product services. Vantron’s M2M products are based on the most advanced ARM and Intel Atom processors and have low-power consumption and high integration. -
Page 8: Vt-M2M-C335 Hardware Instructions

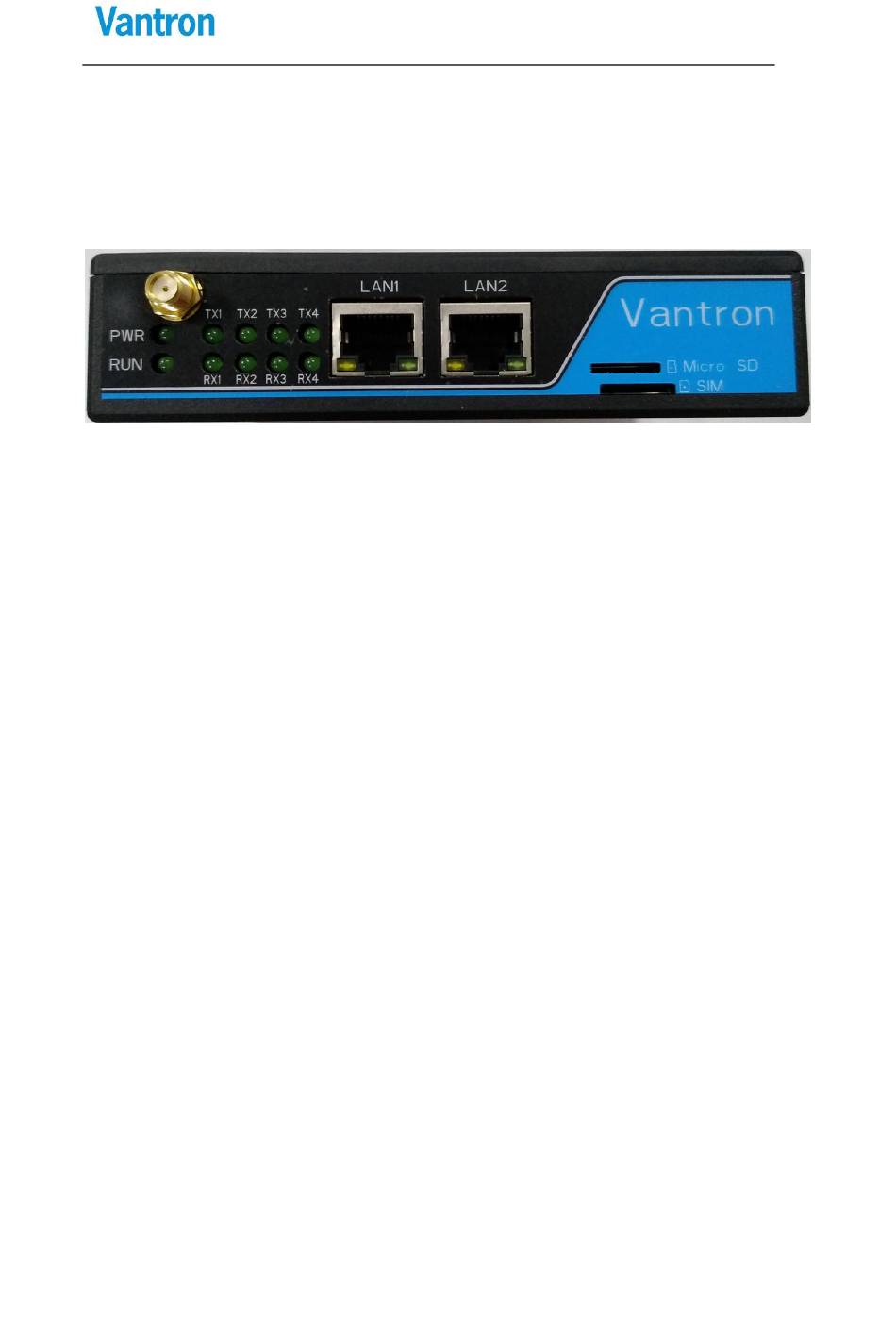

VT-M2M-C335 3 VT-M2M-C335 Hardware Instructions 3.1 Product Appearance Front View Left View Right View All Rights Reserved... -
Page 9: Specifications
VT-M2M-C335 3.2 Specifications Features ■ CPU: TI, AM335x Series, ARM Cortex-A8, 32‑Bit RISC Microprocessor, Support wide operating frequency range from 275MHz to 1GHz ■ DDR3L 800MHz, 1GB, EMMC 4.5,16GB ■ 1xMicro SD Card ■ 2x100-BaseT Ethernet ■ 4G Module with SIM slot,(or 3G Module with SIM slot) ■... - Page 10 VT-M2M-C335 Control Button of Restored to Default setting, Reset Button Linux Software Applications Provide SDK Input Wide Range (12-48V), 3x3.81mm Green Terminal Power Consumption 1.8W Average (without 4G,GPS,LORA,WLAN,BT) Dimensions Install Brackets Mechanical Weight 0.95Kg (1.3Kg package Kit) Enclosure Sheet Metal with Black Color Operating:-20°C ~ +80°C...
-
Page 11: Dimension
VT-M2M-C335 3.3 Dimension All Rights Reserved... -
Page 12: Interface Description
VT-M2M-C335 3.4 Interface Description 10/100M ETH SD Card WIFI Antenna USIM Slot 232/485 Port DEBUG PWR Conn Renew RS232 All Rights Reserved... -
Page 13: User Interface(Rs485 Optional)
VT-M2M-C335 3.4.1 User Interface(RS485 Optional) PIN1 PIN2 PIN3 PIN4 PIN5 PIN6 PIN7 PIN8 PIN9 PIN10 PIN11 PIN12 485_1-/TX 485_1+/RX 485_2- 485_2+ 485_3- 485_3+ 485_4- 485_4+ 3.4.2 3.5mm Debug Port(AM3352) Description TXD(232) RXD(232) All Rights Reserved... -
Page 14: Tips
Vantron assumes no responsibility of possible missing contents and information, errors in contents, citations, examples, and source programs. Vantron reserves the right to make necessary changes to this manual without prior notice. No part of this manual may be reprinted or publicly released in for... - Page 15 Address: 440 Boulder Court, Suite 300 Pleasanton, CA 94566 Tel: 916-202-7042 Email: sales@vantrontech.com China Office: Chengdu Vantron Technology, Ltd Address: 6th floor, 1st building, No.9, 3rd WuKe East Street, WuHou District, Chengdu, P.R. China 610045 Tel: 86-28-8512-3930/3931, 8515-7572/6320 Email: sales@vantrontech.com.cn...
