- Page 1 VT-M2M-APL Win10 User’s Manual VT-M2M-APL Win10 User’s Manual Chengdu Vantron Technology Ltd. Co. www.vantrontech.com.cn All Rights Reserved www.vantrontech.com.cn...
- Page 2 VT-M2M-APL Win10 User’s Manual Revision History: Version Date Description V1.0 2019-10-16 First release V1.1 2019-12-11 Adjust the layout of this user manual Add chapter 1: Understanding BIOS Add chapter 2: Use Win10 OS Add chapter 3: Using my tablet www.vantrontech.com.cn...
-
Page 3: Table Of Contents
VT-M2M-APL Win10 User’s Manual Table of Contents Chapter 1 Understanding BIOS ......................4 1.1 BIOS ........................... 4 1.1.1 How to enter BIOS configuration page ..............4 1.1.2 Check BIOS version....................5 1.1.3 How to upgrade BIOS firmware ................5 Chapter 2 Use Win10 OS ........................6 2.1 How to install Win10 system .................... -
Page 4: Chapter 1 Understanding Bios
VT-M2M-APL Win10 User’s Manual Chapter 1 Understanding BIOS 1.1 BIOS BIOS is the first program executed after power on. It is in the middle level of hardware and system. As a part of power on, BIOS needs to initialize hardware devices including CPU and memory, save hardware settings for operating system installation and loading. -
Page 5: Check Bios Version
VT-M2M-APL Win10 User’s Manual 1.1.2 Check BIOS version There are two ways to check BIOS version. Check under windows Under operating system, press key “Win+R” using USB keyboard, and input string “msinfo32” and click “OK”. Then you will see some information about this system: Check under BIOS setup menu Press ”ESC”... -
Page 6: Chapter 2 Use Win10 Os
VT-M2M-APL Win10 User’s Manual Chapter 2 Use Win10 OS Our tablet can support all the operating systems listed in the table below. This paper mainly introduces the use of win10 system. OS Vendor Supported OS Microsoft Windows 10 Enterprise(64-bit), IoT Core(32/64-bit) -
Page 7: Installation
VT-M2M-APL Win10 User’s Manual 2.1.2 Installation Step 1: Insert win10 installation USB disk into target tablet, and then power on tablet. Step 2: Press ESC to enter BIOS configuration and select boot manager function page. Step 3: Select the win10 installation disk we made before to boot. -
Page 8: Chapter 3 Using My Tablet

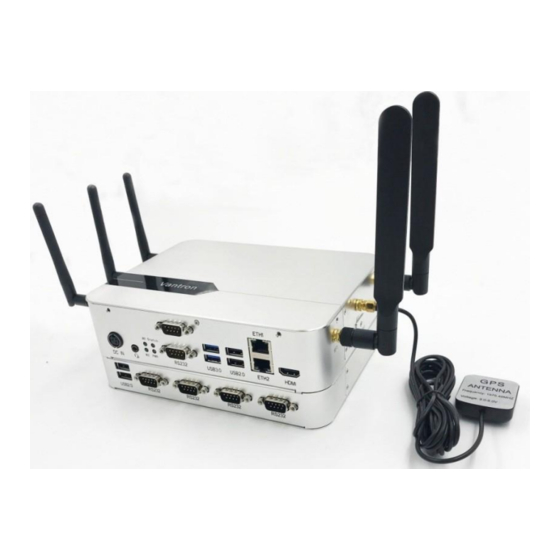

VT-M2M-APL Win10 User’s Manual Chapter 3 Using My Tablet 3.1 Front View ① DC-in Power Connector ⑧ USB2.0 Connector ⑮ RF2 : WIFI Antenna ② Headphone Connector ⑨ ETH Connector ⑯ RF4 : LORA Antenna ③ Wireless Indicate LED ⑩... -
Page 9: Right View
VT-M2M-APL Win10 User’s Manual 3.2 Right View ① System Reset Button ② SIM Card Slot 3.3 Interface Device Name Description HDMI The maximum support resolution is 3840x2160@30Hz Audio Using sound chip ALC269, and support 1xMic, 1xHeadphone PCIE Support 2xPCIE slot: Support WLAN module: Intel 8265 ... -
Page 10: Device&Drivers
VT-M2M-APL Win10 User’s Manual 3.4 Device&Drivers The following table describes all drivers that need to be installed on the current tablet. These drivers can be found under “Win10 Driver” of release package Device Description/Version Driver Path Chipset 10.1.17570.8068 \Win10 Driver\Chipset\chipset-10.1.17570.8068-public-mup.zip Graphic 24.20.100.6286... -
Page 11: Chapter 4 Function Usage And Test
VT-M2M-APL Win10 User’s Manual Chapter 4 Function Usage and Test 4.1 Secure Boot Note: The system must be UEFI mode if you want to use secure boot function. 4.1.1 Enable Secure Boot Please plug in USB keyboard before you enabling the secure boot function. -
Page 12: Disable Secure Boot
VT-M2M-APL Win10 User’s Manual Then it will pop up a dialog to remind you that system will reset. And click “OK”, system will auto restart. At this point, enabling the secure boot function has been completed.If you want to check secure boot status, please refer to 4.1.3. -
Page 13: Check Secure Boot Status
VT-M2M-APL Win10 User’s Manual At this point, disabling the secure boot function has been completed.If you want to check secure boot status, please refer to 4.1.3. 4.1.3 Check Secure Boot Status We have two ways to check secure boot status: Check under BIOS Setup menu ... -
Page 14: Com Test
VT-M2M-APL Win10 User’s Manual 4.2 COM test Our motherboard contains 6 serial devices, the list of serial ports under Device Manager is as follows: Note： After you install the system, maybe serial port number order is not necessarily the same as in my picture as follows, Please refer to the actual installation. -
Page 15: Wdt Test
VT-M2M-APL Win10 User’s Manual Note: COM5, COM7 and COM8 are virtual com port which come from EC20. UART tool location: Demo tool: \SW Guide\COM test\TestCommPC V2.3.2.exe 4.3 WDT test We can enable watchdog support under BIOS setup. Enter Setup Utility => Advance =>SIO SCH3114 Enable WDT (default is Disabled), and set time unit and counter. - Page 16 VT-M2M-APL Win10 User’s Manual After you installing the system, maybe serial port number order is not necessarily the same as in my picture as follows, Please refer to the actual installation. Quectel USB AT port (COM5) is used to send AT commands to EC20.
-
Page 17: Dial Up
VT-M2M-APL Win10 User’s Manual After setting finished, click “OPEN” button to start to receive GPS information. 4.5 Dial up Our motherboard use mobile module: Quectel EC20 EC20: Support FDD-LTE/TDD-LTE/WCDMA/TD-SCDMA/CDMA2000/GSM network. Note: The EC20 supports automatic dialing, so you only need to insert the micro SIM Card, and power on the system, then you can surf the internet. -
Page 18: Reset Button
VT-M2M-APL Win10 User’s Manual 4.6 Reset button Our motherboard has a system reset button next to the SIM Card slot on the right whose purpose is for reset system. System will be restart when pressed. www.vantrontech.com.cn...
