- Page 1 VT-M2M-APL PLUS VT-M2M-APL PLUS User’s Manual Chengdu Vantron Technology Ltd. Co. www.vantrontech.com All Rights Reserved...
- Page 2 VT-M2M-APL PLUS Revision History: Version Description Date V1.0 First release October 8, 2019 V1.1 Add some description October 10, 2019 V1.2 Correct some description October 12, 2019 V1.3 Add optional description December 13, 2019...
-
Page 3: Table Of Contents
VT-M2M-APL PLUS Table of Contents Part I：Hardware Platform ..............3 Foreword ..................4 Copyright Notice ..............4 Notes ................4 Statement ................5 Disclaimer ................5 Limitation of Liability/Non-warranty ........5 Safety Instructions ..............6 Precautions ................6 Safety Instructions for Power Cables and Accessories ..... 7 Cleaning Instructions ............... - Page 4 VT-M2M-APL PLUS 3.5.2 RS232/RS485/RS422 Connector ....... 18 3.5.3 D Sub-9 RS232 Connector ........18 3.5.4 Antenna description ..........19 Operation Notice ..............21 3.6.1 Change SIM Card ............. 21 3.6.2 Power Supply ............21 3.6.3 VESA Install .............. 21 Tips .................... 22...
-
Page 5: Part I：hardware Platform
VT-M2M-APL PLUS Part I：Hardware Platform... -
Page 6: Foreword
1.1 Copyright Notice While all information contained herein have been carefully checked to assure its accuracy in technical details and printing, Vantron assumes no responsibility resulting from any error or features of this manual, or from improper uses of this manual or the software. Please contact our technical department for relevant operation solutions if there is any problem that cannot be solved according to this manual. -
Page 7: Statement
1.5 Limitation of Liability/Non-warranty For direct or indirect damage to this device or other devices of Vantron caused by failure of conforming to this manual or the safety instructions on device label, Vantron assumes neither warranty nor legal liability even if the device is still under warranty. -
Page 8: Safety Instructions
VT-M2M-APL PLUS unit can be installed outdoor. 1.6 Safety Instructions Keep and comply with all operation instructions, warnings, and information. Pay attention to warnings on this device. Read the following precautions so as to decrease the danger of injury, electric shock, fire, or any damage to the device. -
Page 9: Safety Instructions For Power Cables And Accessories
Proper power source only Start only with power source that satisfies voltage label and the voltage necessary according to this manual. Please contact technical support personnel of Vantron for any uncertainty about the requirements of necessary power source. Use tested power source This product still contains a button... -
Page 10: Overview
VT-M2M-APL PLUS Overview 2.1 Introduction Thank you for choosing Vantron. It is our commitment to provide our valued customers with the embedded devices equipped with the state-of-the-art technology and the best product services. Vantron’s M2M products are based on the most advanced ARM、Intel Atom and Intel APL processors and have low-power consumption and high integration. -
Page 11: Product Series
VT-M2M-APL PLUS 2.2 Product Series 2.2.1 Product Order Coding Rule Order Code VT-M2M-APL-D-4G-111-GWLP-C Version: W: Extended Temperature C:Commercial temperature Wireless Module Option: G:4G , W: WiFi, L: LORA, P: GPS 1:16GB EMMC 1:16GB SSD 1:320GB HD DDR Memory Size: 2G: 2GB, 4G: 4GB, 8G: 8GB... -
Page 12: Ordering Information
VT-M2M-APL PLUS 2.2.2 Ordering Information Order Examples: ATOM APL Dual core Processor, 4GB LPDDR4, 16GB/16GB/320GB, VT-M2M-APL-D-4G-111-GWLP-C 4G, WiFi, LORA,GPS, Commercial temperature Accessories: Install Mechanical tools,1pc Power Adapter with locked connector (Optional),1pc 4G Antenna(Optional),2pc WiFi &BT Antenna(Optional),2pc LORA Antenna(Optional),1pc GPS Antenna(Optional),1pc... -
Page 13: M2M-Apl Hardware Instructions

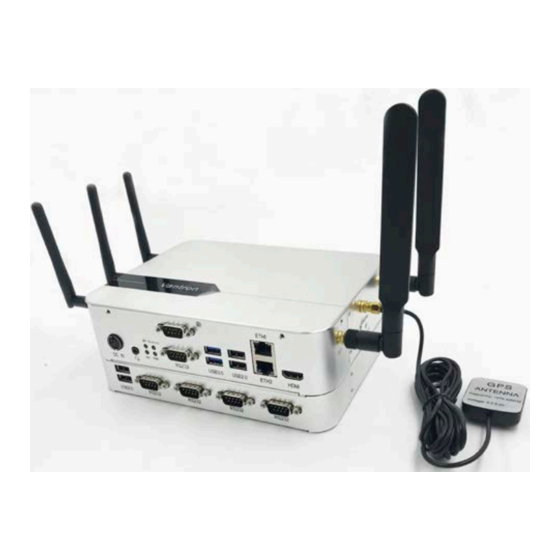

VT-M2M-APL PLUS M2M-APL Hardware Instructions 3.1 Product Appearance Front Side View... - Page 14 VT-M2M-APL PLUS Overlook Side View View for all optional embedded modules and antennas...
-
Page 15: Specifications
VT-M2M-APL PLUS 3.2 Specifications Specifications Intel® APL,N3350/2.4GHz , Dual core Processor,6W Processor (optional N3450/2.2GHz Quad core; N4200/2.4GHz Quad core) On Board LPDDR4 1600MT/s 4GB(optional On Board 8GB) Memory 16GB EMMC(optional up to 64GB) ROM Internal 16GB SSD(optional up to 2TB) - Page 16 VT-M2M-APL PLUS Audio 1xHeadphone with Mic 3.5mm 1xRS232/422/485 (Full function, DB9) COM Port 5xRS232 ((Full function, DB9) 4xIndicate LED Alarm Buzzer Out Supported Control Reset Button Security security TPM module on board Linux, Windows 10 Software Applications SDK Available Input...
-
Page 17: Interface Instructions
VT-M2M-APL PLUS 3.3 Interface Instructions 3.3.1 Front View 3.3.2 Overlook View... -
Page 18: Dimension
VT-M2M-APL PLUS 3.4 Dimension... -
Page 19: Interface Description
VT-M2M-APL PLUS 3.5 Interface Description Connectors and Antennas DC Power Input 12~36V Headphone with Mic Wireless Indicate LED SATA and Power Indicate LED RS232/RS485/RS422 RS232 Connector USB3.0 Connector USB2.0 Connector ETH Connector HDMI Connector WWAN Primary Antenna WIFI Antenna GPS Antenna... -
Page 20: Rs232/Rs485/Rs422 Connector
VT-M2M-APL PLUS 3.5.2 RS232/RS485/RS422 Connector Location Definition Definition DCD1/422TX+/485_A RXD1/422TX-/485_B TXD1/422RX+ DTR1/422RX- DGND (ground pin) DSR1 RTS1 CTS1 The Connector can be defined to RS232、RS485 or RS422 by BIOS set. 3.5.3 D Sub-9 RS232 Connector Location Definition Definition... -
Page 21: Antenna Description
VT-M2M-APL PLUS 3.5.4 Antenna description 4G Antenna Location : Electrical Properties Frequency 700-2700MHz Impedence 50 Ohm Nominal V.S.W.R 1.8:1 Max Return Loss -10 dB Max Radiation Omni-directional Gain(Peak) 5.0 dBi Cable Loss 2.3dB/m Max@2450Mhz Polarization Linear,Vertical Adimitted Power Connector SMA Male... - Page 22 VT-M2M-APL PLUS WLAN&BT Antenna Location : LORA Antenna Location : GPS Antenna Location :...
-
Page 23: Operation Notice
VT-M2M-APL PLUS 3.6 Operation Notice 3.6.1 Change SIM Card Remove the shield, push the SIM Card into the Slot, install the shield. 3.6.2 Power Supply Please make sure using adapter in the accessory, or the power is not reversed when powered by other adapter. -
Page 24: Tips
VT-M2M-APL PLUS Tips Waste Disposal It is recommended to disassemble the device before abandoning it in conformity with local regulations. Please ensure that the abandoned batteries are disposed according to local regulations on waste disposal. Do not throw batteries into fire (explosive) or put in common waste canister. - Page 25 In the aim of avoiding accidents as far as possible, it is not allowed to replace the system or change components unless with permission and certification. Please contact the technical department of Vantron or local branches for help. Pay attention to caution signs.
- Page 26 Vantron reserves the right to make necessary changes to this manual without prior notice. No part of this manual may be reprinted or publicly released in forms of photocopy, tape, broadcast, e-document, etc.
- Page 27 VT-M2M-APL PLUS Any modification to the product is not permitted unless authorized by Vantron. It’s not allowed to disassemble the product, it is not allowed to replace the system or change components unless with permission and certification. Please contact the technical support department of Vantron or local branches for help.
- Page 28 Address: 440 Boulder Court, Suite 300, Pleasanton, CA 94566 Tel: +1 916-202-7042 Email: sales@vantrontech.com China Office: Chengdu Vantron Technology, Ltd Address: 6th Floor, 1st Building,No.9, 3rd WuKe East Street, WuHou District, Chengdu, P.R. China 610045 Tel: 86-28-8512-3930/3931, 8515-7572/6320 Email: sales@vantrontech.com.cn...
