PHASE 5: ELECTRICAL WIRING BETWEEN SECTIONS (sizes 05-06-07)
Make the connections shown in the figure.
10
SIZE 5
• 1x - 4-pole SGN + AL fan connector;
• 1x - 3-pole connector fan supply.
10

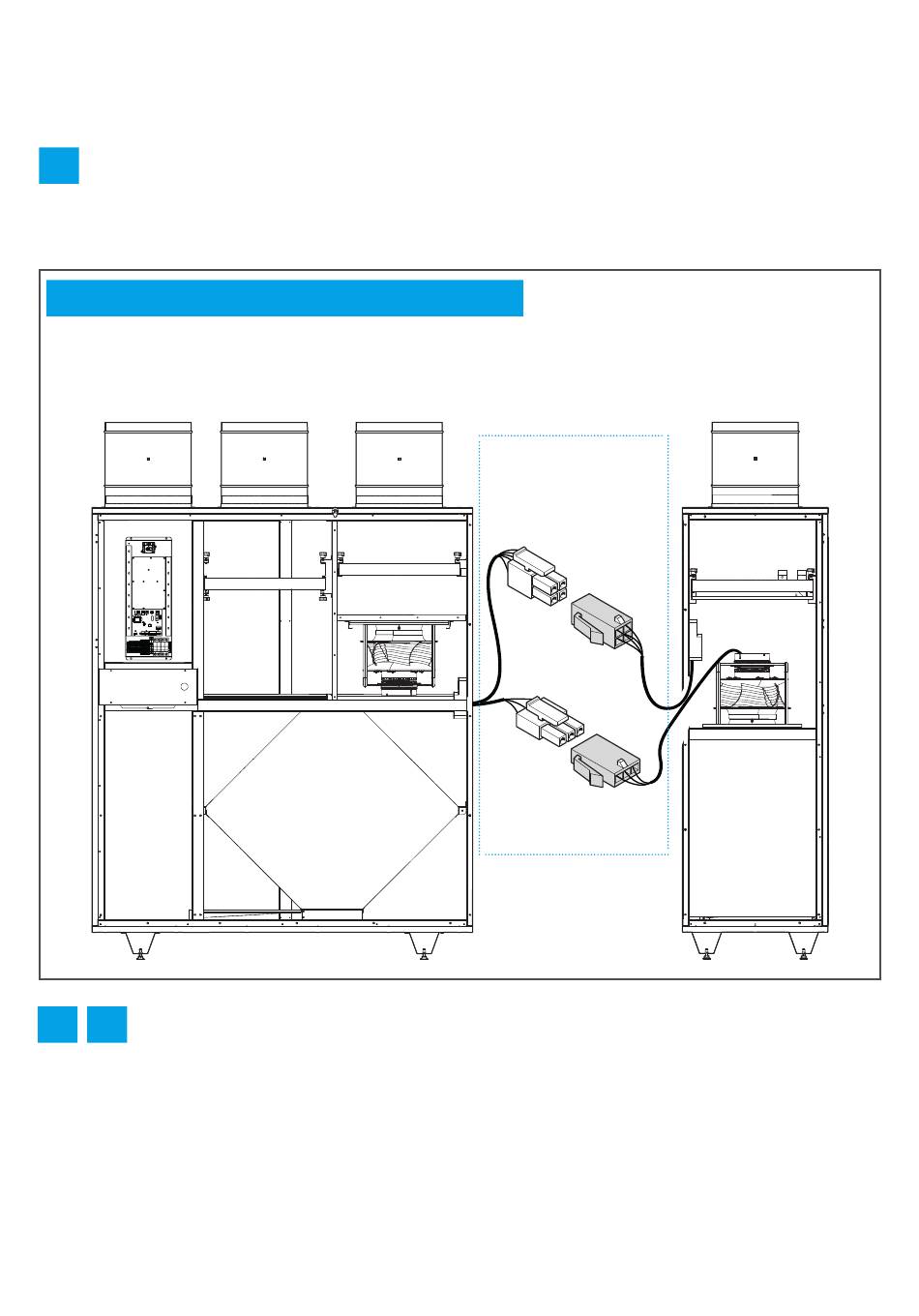

SIZE 5: electrical connections between sections
11 12
SIZES 6-7
• 1x - 4-pole SGN + AL fan connector;
• 1x - 3-pole connector fan supply;
• 4x- 2-pole connector:
• 3x- 3-pole connector:
• 12x- return temperature;
• 11x- outside temperature.
28
B
2
Supply filter pressure switch, Return filter pressure switch, Fan alarm, Return alarm
Supply fan signal, Return fan signal, Recirculation damper
These connections are
made within section B1
SGN + AL
4 pole fan
3 Pole connector
fan supply
B
1
