Dorner 2100 Series Setup, Operation & Maintenance Manual
  1. Manuals
  2. Brands
  3. Dorner Manuals
  4. Accessories
  5. 2100 Series
  6. Setup, operation & maintenance manual

Dorner 2100 Series Setup, Operation & Maintenance Manual

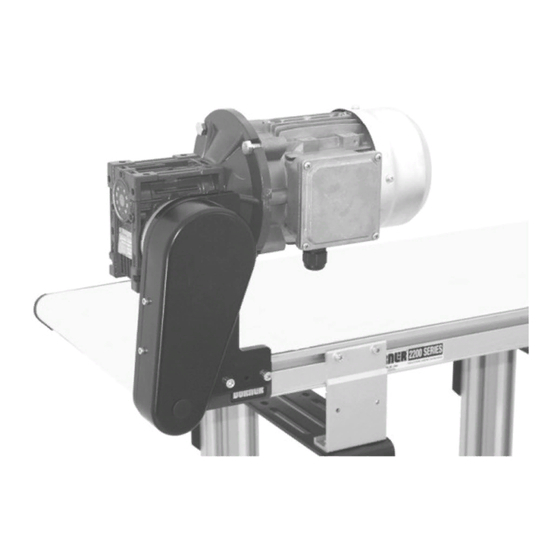

Top mount drive package for light load 50 hz gearmotors
Hide thumbs Also See for 2100 Series:
Table of Contents

Advertisement

Quick Links

Download this manual
for Light Load 50 Hz Gearmotors
Introduction
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2100, 4100, 6100 Series
Top Mount Drive Package
. . . . . . . . . . . . . . . . . . . .
Set-up, Operation
& Maintenance Manual

Table of Contents

2
Preventative Maintenance & Adjustment
2
Required Tools
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
3
3
4
4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . .
. . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . .
. . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . .
851-298 Rev. A
6
6
6
6
7
7
9
10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 2100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Dorner 2100 Series

Summary of Contents for Dorner 2100 Series

  • Page 1: Table Of Contents

    Set-up, Operation & Maintenance Manual 2100, 4100, 6100 Series Top Mount Drive Package for Light Load 50 Hz Gearmotors Table of Contents Warnings – General Safety ....Preventative Maintenance &...

  • Page 2: Warnings - General Safety

    Dorner’s Limited Warranty applies. D Accessories may be shipped loose. See accessory in- Dorner reserves the right to make changes at any time structions for installation. without notice or obligation. 2100, 4100, 6100 Series Top Mount Drive Package for Light Load 50 Hz Gearmotors SOMM 851-298 Rev.

  • Page 3: Product Description

    Fixed Speed Output Shaft Type = Parallel Shaft Mount Style = Top Mount Language Code = CE English 2 = 2100 Series Conveyor 4 = 4100 Series Conveyor 6 = 6100 Series Conveyor * See “Ordering and Specifications” Catalog for details.

  • Page 4: Installation

    Typical components (Figure 2) Driven Pulley Cover M4 Socket Head Screws (4x) Timing Belt M6 Socket Head Screws (2x) Figure 2 2100, 4100, 6100 Series Top Mount Drive Package for Light Load 50 Hz Gearmotors SOMM 851-298 Rev. A Dorner Mfg. Corp.
  • Page 5 Wrap timing belt (M) around driven pulley (J) and drive pulley (R). Install driven pulley (J) onto Figure 8 conveyor shaft. 2100, 4100, 6100 Series Top Mount Drive Package for Light Load 50 Hz Gearmotors SOMM Dorner Mfg. Corp. 851-298 Rev. A...

  • Page 6: Timing Belt Tensioning

    Install cover (K of Figure 9) with four (4) screws (L). tensioner screw to 12 Nm. Tighten screws to 4 Nm. 2100, 4100, 6100 Series Top Mount Drive Package for Light Load 50 Hz Gearmotors SOMM 851-298 Rev. A Dorner Mfg. Corp.

  • Page 7: Drive Or Driven Pulley Replacement

    (Figure 15). Loosen terminals U1, W1 and ground and remove wires. Figure 15 Loosen cord grip (Y of Figure 15) and remove cord. 2100, 4100, 6100 Series Top Mount Drive Package for Light Load 50 Hz Gearmotors SOMM Dorner Mfg. Corp. 851-298 Rev. A...
  • Page 8 D For a three phase motor, reverse step 1 on this page. re-installation, see steps 5 through 8 on page 5. Figure 17 2100, 4100, 6100 Series Top Mount Drive Package for Light Load 50 Hz Gearmotors SOMM 851-298 Rev. A Dorner Mfg. Corp.

  • Page 9: Service Parts

    Service Parts NOTE: For replacement parts other than those shown on this page, contact an authorized Dorner Service Center or the factory. Item Part No. Part Description Gearmotor, 22 W, 230 Volts, 144 RPM, 62Z008PL421 50 Hz, 1-Phase, 8:1 Gearmotor, 20 W, 230Volts, 41 RPM,...

  • Page 10: Return Policy

    Authorization Number to reference. There will be a 15% restocking charge on all new items returned for credit where Dorner was not at fault. These will not be accepted after 60 days from original invoice date. The restocking charge covers inspection, cleaning, disassembly, and reissuing to inventory.

This manual is also suitable for:

4100 series6100 series

Table of Contents
