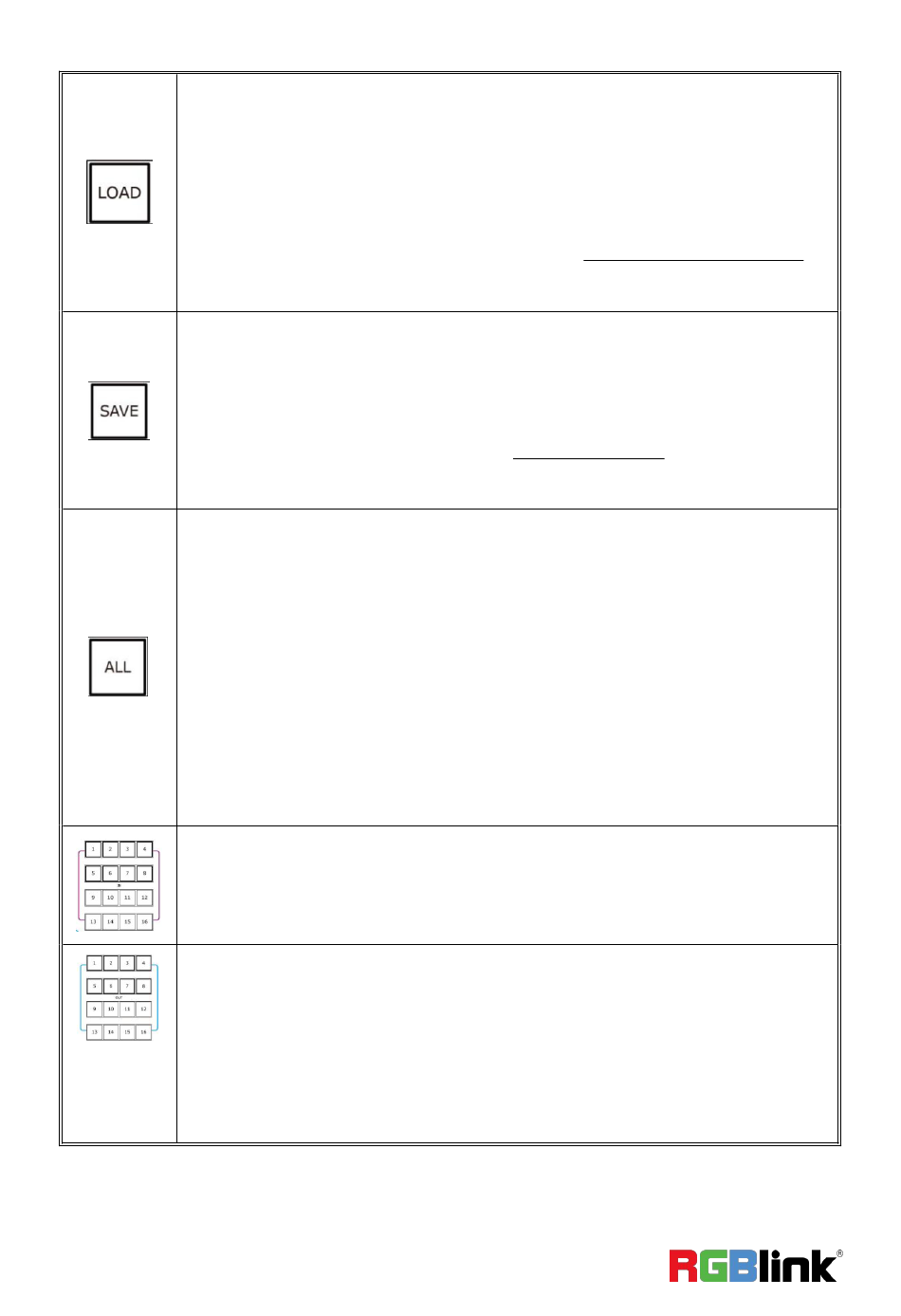

1.Push LOAD button to trigger Scene Switch Mode in standby mode. Press OUT
1-16 to load saved presets. (Notice: only ONE scene can be selected at the same
time)
LOAD Light on if Scene Switch Mode is triggered. Push LOAD button again to
return to Matrix Mode. (more details please refer to 3.1.4.4 Scene Switch Mode)
2.Used as direction key "Left" under menu operation.
1.Push SAVE button to trigger OSD Mode in standby mode. Press IN 1-16 to load
OSD 1 or OUT 1-16 to load OSD 2 to selected output port.
SAVE Light on if OSD Mode is triggered. Push SAVE button again to return to
Matrix Mode. (more details please refer to 3.1.4.2 OSD Mode)
2.Used as direction key "Down" under menu operation.
1.Default to enter the Matrix Mode after power on.
2.Initial state: All input and output button lights are OFF. Users need to choose one
input button first and then the corresponding output button light will be ON. Users
can press other output buttons for matrix switch.
3.Non-initial state ( matrix has been switched): One input has been selected, and
the corresponding output button light is ON. Users can press other output buttons
for matrix switch.
4Used as direction key "Right" under menu operation.
1. Indicate Input Ports 1-16 under Matrix Mode and Switch Mode.
2. Indicate Page 1-16 under Scene Mode.
3. Press IN 1-16 to load OSD 1 to selected output port under OSD Mode.
1. Indicate Output Ports 1-16 under Matrix Mode and Switch Mode.
2. Indicate Scene 1-16 under Scene Mode.
3. Press OUT 1-16 to load OSD 2 to selected output port under OSD Mode.
4. Used as Numeric Keys under menu control; 1-9 indicate number 1-9, 10
indicates number 0.
