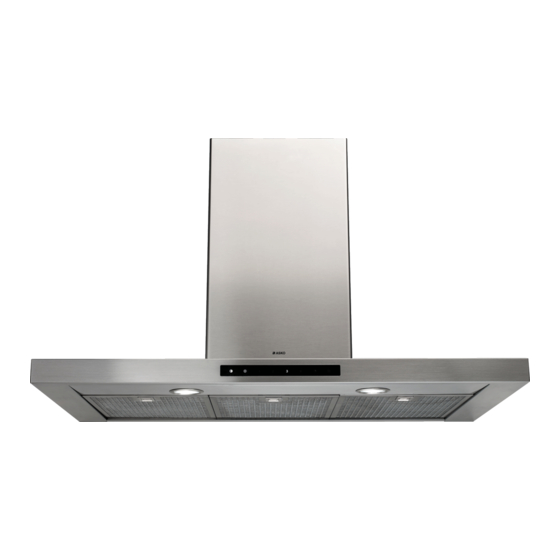

- Page 1 OPERATING INSTRUCTIONS CW4934S / 4000 Cooker hood EN (AU) (NZ)
-
Page 2: Table Of Contents
Contents Pictograms used ........Maintenance ..........Safety ............Cleaning ............Your cooker hood ........Lighting ............Dear customer! ..........Installation ..........Description user interface ....................Operation ............ Preparations for installation ......Switching the light on and off ...... Built-in ............Switching extraction on and off .... -
Page 3: Pictograms Used
Pictograms used The following symbols are used throughout the manual and they have the following meanings: INFORMATION! Information, advice, tip, or recommendation WARNING! Warning general danger ELECTRIC SHOCK! Warning danger of electric shock HOT SURFACE! Warning danger of hot surface DANGER OF FIRE! Warning danger of fire... -
Page 4: Safety
Safety WARNING! READ CAREFULLY AND KEEP FOR FUTURE REFERENCE! Safe use The manufacturer cannot be held liable for any damage resulting from failure to follow the safety instructions and warnings. Damage caused by incorrect connection, incorrect fitting, or incorrect use is not covered by the warranty. WARNING! This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,... - Page 5 Safety Local regulations concerning the discharge of air have to be fulfilled. Never use a steam cleaner for cleaning the appliance. Only clean the appliance when switched off. The steam of a steam cleaner could reach the conducting parts and cause an electrical short.
- Page 6 Safety DANGER OF FIRE! There is a risk of fire if the instructions for cleaning or replacing grease filters and/or carbon filters are not followed. Through grease deposits in the metal grease filter. Never work with open flame under the appliance (eg. flambéing). Always use the appliance with the metal grease filter.
-
Page 7: Your Cooker Hood
Your cooker hood Dear customer! Welcome to our growing ASKO family! We are proud of our appliances. We hope that this appliance will be an appreciated and dependable aid for many years to come. Please read the operating instructions before use. They include general tips, information about the settings and adjustments you can make, and the best way to take care of your appliance. -
Page 8: Operation
Operation Switching the light on and off 1. Short touch the lighting key. The light switches on at maximum strength. 2. Press and hold the lighting button for approximately 3 seconds to dim the lighting strength. 3. To set the lighting back to maximum strength, quickly press and release the lighting button. -
Page 9: Clean Air Function
Operation NOTE! The timer function cannot be activated when the intensive setting is switched on. Clean Air function The Clean Air function allows you to freshen the air in your kitchen for a maximum of 24 hours at level 1. 1. - Page 10 Operation Grease filter The filter indicator will light up after 100 operating hours. The grease filters should then be cleaned. Carbon filter The filter indicator will flash after 200 operating hours. The carbon filter should then be replaced. Reset the filter indicator 1.
-
Page 11: Maintenance
Maintenance Cleaning WARNING! Important! For all maintenance, first, switch off the mains power to the cooker hood by pulling the plug out of the socket or by turning off the home's master switch. The hood needs to be cleaned regularly, both inside as well as outside (at least as often as the grease filter). Do not use abrasive cleaning products. -
Page 12: Lighting
Maintenance Replacing the carbon filter 1. The grease filters should first be removed before replacing the carbon filter. 2. Slot the notches at the back of the filter in the specially designed opening of the cooker hood. NOTE! The carbon filter must always be used if the cooker hood does not have an outlet. Using a carbon filter creates more sound than when using the cooker hood with an outlet. -
Page 13: Installation
Installation Safety regulations WARNING! This appliance should only be connected by a registered installer. Always follow the installation instructions in the installation manual provided. Check the appliance for transport damage. Do not connect a damaged appliance. Faulty parts may only be replaced by original parts. The manufacturer can only guarantee that original parts meet safety requirements. - Page 14 Installation The appliance should not be connected to the mains via a multi-plug adapter or extension cable, as the safe use of the equipment cannot be guaranteed. WARNING! Extraction hoods and other appliances that extract cooking vapours can affect the safe operation of appliances that burn gas or other fuel (including those in other rooms) by backflowing combustion gases.
- Page 15 Installation If the safety instructions and warnings are not followed, the manufacturer cannot be held responsible for any resulting damage. If you decide to discontinue using the appliance because of a fault, we recommend you cut off the cable after removing the plug from the plug socket.
-
Page 16: Preparations For Installation
Installation Preparations for installation Electrical connection This appliance is manufactured in class I; it must therefore be connected max. 120 cm to the earth system. Make sure the supply voltage ratings correspond with those stated on the appliance data plate. The connection to the mains is carried out as follows: BROWN = L phase BLUE = N zero... -
Page 17: Built-In
Installation Appliance dimensions Built-in... - Page 18 Installation Recirculation...
- Page 19 Installation...
- Page 20 Installation...
-
Page 21: Environmental Aspects
Environmental aspects Tips for energy-efficient cooking with hoods Use a low extractor setting and use the highest setting (boost) if necessary. A well-ventilated kitchen makes the range hood more efficient. Clean filters regularly and replace filters when needed to keep the filter efficiency high, as a saturated filter cannot perform and leads to longer usage times. -
Page 22: Your Notes
897930 We reserve the right to make changes.
