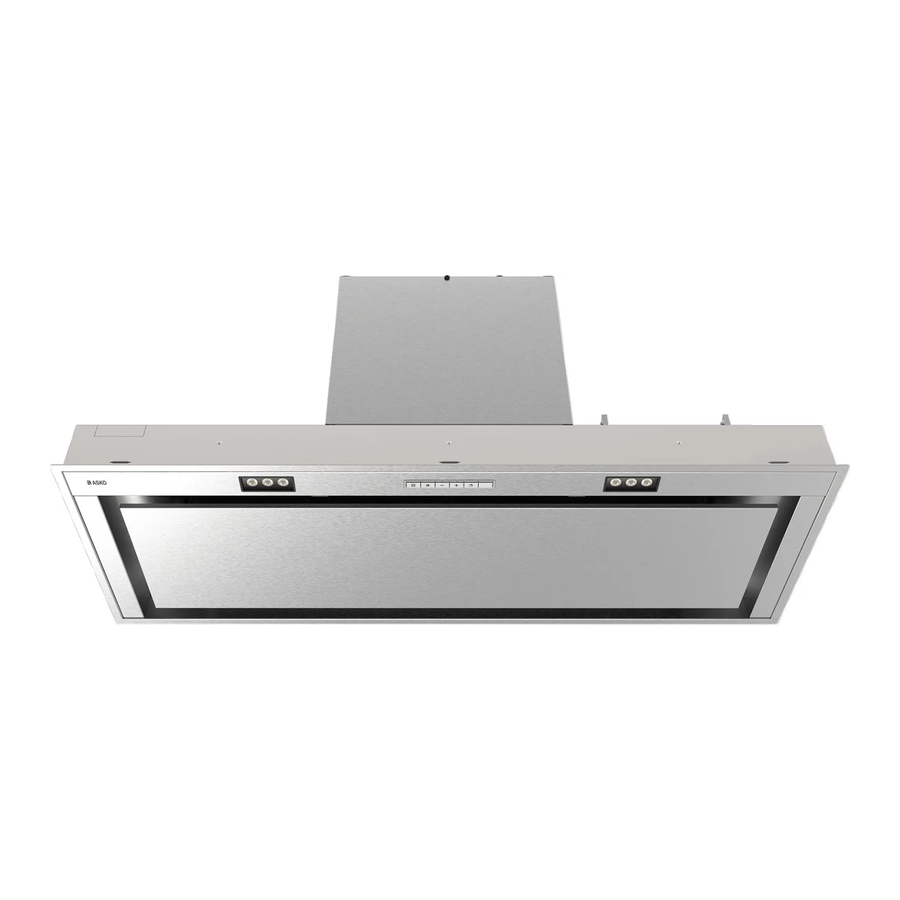

Asko CBB761S Instructions For Use Manual

Hide thumbs Also See for CBB761S:

Advertisement

Quick Links

instructions for use
COOKER HOOD
CBB761S
CBB861S

Advertisement

loading
Need help?

Need help?

Do you have a question about the CBB761S and is the answer not in the manual?

Questions and answers

Related Manuals for Asko CBB761S

Summary of Contents for Asko CBB761S

  • Page 1 COOKER HOOD CBB761S CBB861S...
  • Page 2 Instructions for use EN 3 - EN 17 Pictograms used Important information EN 2...

  • Page 3: Table Of Contents

    CONTENTS Your cooker hood Introduction Description hood Description button control Operation Cleaning filters Description remote control Operation Cleaning filters Maintenance Cleaning Lighting Battery of the remote Technical data Environmental aspects EN 3...

  • Page 4: Your Cooker Hood

    YOUR COOKER HOOD Introduction On reading these user manuals you will soon become familiar with the features of this appliance. Please read the appliance’s safety and maintenance instructions. Please retain the operating and installation instructions as these may be useful for future reference. Please read the separate safety instructions prior to use.

  • Page 5: Use

    Description hood 1. Button control 2. LED spot 3. Edge extraction panel 4. Grease filter 5. Magnet Description button control 6. Filter reset button, signals when filters require cleaning 7. Filter indicator 8. Lighting button, switches on/off and dims the lighting 9.
  • Page 6 Operation Switching extraction on and off • Press the ‘+’ button. The cooker hood will switch on at the lowest setting. • Press the ‘+’ button again for a higher fan setting. Press and hold the ‘+’ button for 1 second to select the highest setting (boost). •...
  • Page 7 • Switch off the timer function by pressing a random button (except the one for lighting). The cooker hood can be used in extraction mode or recirculation mode. The air extraction capacity is adapted to the selected mode. The hood will start up in the default extraction mode. Is has to be reset for recirculation mode.
  • Page 8 Switching the light on and off • Quickly press and release the light button. The light switches on at maximum strength. • Press and hold the lighting button to set the lighting strength. • To turn off the light, quickly press and release the light button while the light is on.
  • Page 9 Description remote control The remote control is available as an accessory for this cooker hood and is not included with this appliance. 1. Timer function 2. Increase light intensity 3. Colder light temperature 4. Decrease light intensity 5. Decrease air extraction capacity 6.
  • Page 10 Buttons must be pressed and held. This is to prevent functions from being accidentally switched on or off. Operation Pairing the remote This remote control must be paired to the cooker hood before first use. • Start up the appliance (power on). Press and hold the -’and ‘+ for 3 seconds.
  • Page 11 Switch on boost setting • Press and hold the ‘+’ key for at least 1 second. The boost setting is switched on for 10 minutes. The speed level 4 indicator will flash during this period. The original extraction setting will be reactivated after this period. •...
  • Page 12 Switching off recirculation mode • When the light and fan are off, simultaneously hold the timer key and the light key until the filter indicator lights up for 3 seconds and then turns off. Clean Air function The Clean Air function allows you to freshen the air in your kitchen for a maximum of 24 hours at level 1.
  • Page 13 Changing the colour lighting temperature You can adjust the lighting temperature. • Press and hold the light key for 1 second. The light switches on at maximum strength. • Press the ‘C’ key to make the light ‘colder’ or press the ‘W’ key to make the light ‘warmer’.

  • Page 14: Maintenance

    MAINTENANCE Cleaning Important! For all maintenance, first switch off the mains power to the cooker hood by pulling the plug out of the socket or by turning off the home's master switch. The hood needs to be cleaned regularly, both inside as well as outside (at least as often as the grease filter).
  • Page 15 MAINTENANCE Removing cassette filter Switch off the motor and lighting. Pull the edge extraction panel carefully out of the magnetic seal. Tilt the edge extraction panel downwards. Open the filter’s access latch. Support the filter with your hand. Remove the filter from the hood. Cleaning The filters can be cleaned in the dishwasher.
  • Page 16 MAINTENANCE Active carbon filters: The regenerable active carbon filter must be washed by hand with neutral cleaning products, or in the dishwasher at a maximum temperature of 65 °C (the washing should be done without any plates, dishes, cups, etc. in the machine). Do not use washing detergent. Remove the excess water without damaging the filter, remove the holder and let the filter dry in the oven for at least 40 minutes at a maximum temperature of 70 °C.

  • Page 17: Technical Data

    TECHNICAL DATA EU Product Sheet Data determined according to: Standard EN61591 and Commission Regulations (EU) no. 65/2014 and (EU) no. 66/2014. CBB761S CBB861S Trademark ASKO ASKO Type of model BU70BA-ADC01 BU90BA-ADC01 Annual Energy Consumption (AEC 36.1 kWh/a 36.8 kWh/a hood...

  • Page 18: Environmental Aspects

    ENVIRONMENTAL ASPECTS Tips for energy-efficient cooking with hoods • Use a low extractor setting and use the highest setting (boost) if necessary. • A well-ventilated kitchen makes the range hood more efficient. • Clean filters regularly and replace filters when needed to keep the filter efficiency high, as a saturated filter cannot perform and leads to longer usage times.
  • Page 19 EN 19...
  • Page 20 The instructions for use can also be found on our website: www.asko.com en (02-20)
