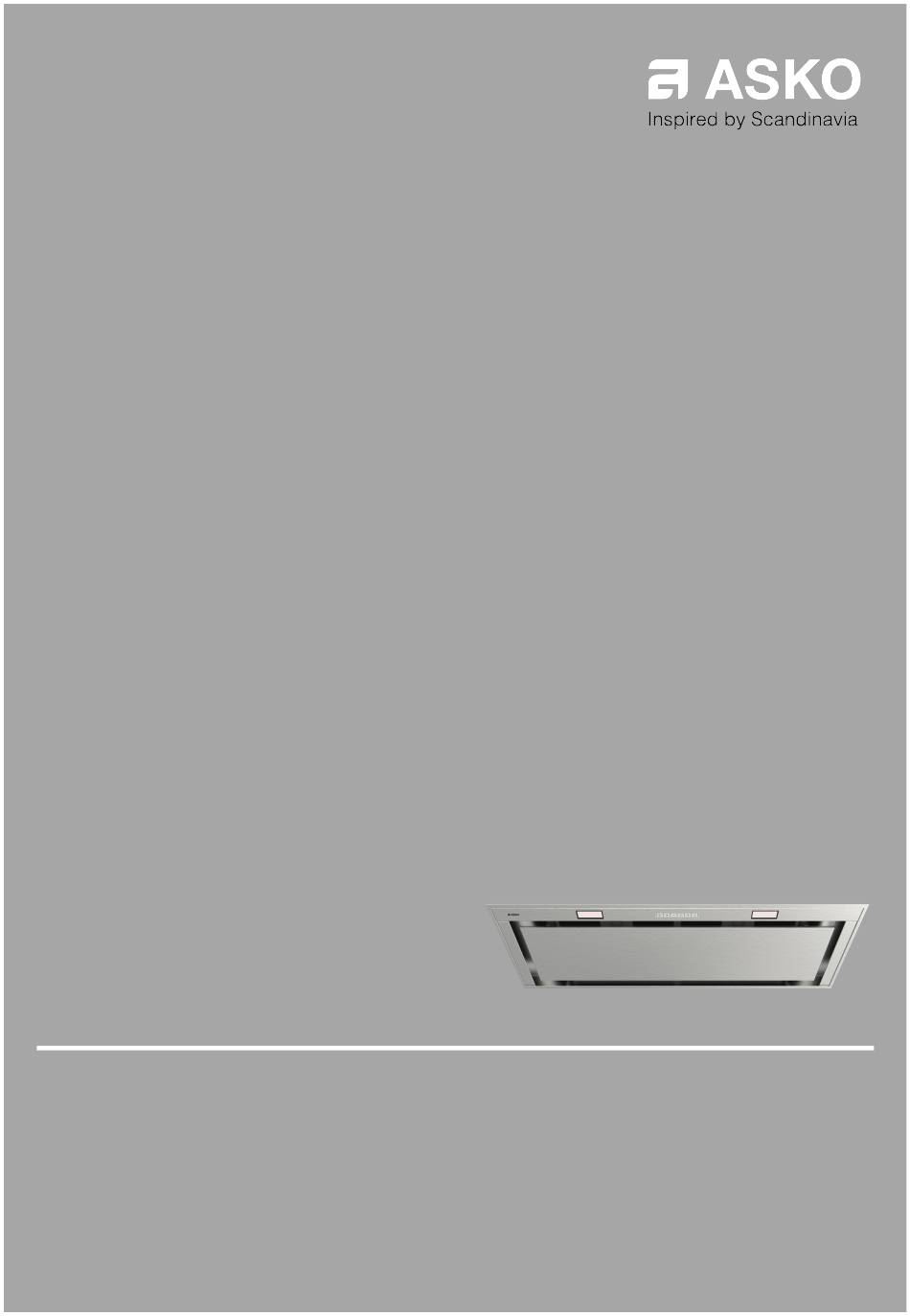

INSTRUCTIONS FOR USE
Cooker hood
EN
CBB761SC
CBB861SC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CBB761SC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asko CBB761SC

Summary of Contents for Asko CBB761SC

  • Page 1 INSTRUCTIONS FOR USE CBB761SC Cooker hood CBB861SC...

  • Page 2: Table Of Contents

    Contents Pictograms used ........Switching off recirculation mode ....Safety ............Clean Air function ......................Switching the light on and off ...... Your cooker hood ........Changing the colour lighting temperature ..Dear customer! ..........Wi-Fi connectivity ........Description hood ......... Wi-Fi/ConnectLife-app .........

  • Page 3: Pictograms Used

    Pictograms used The following symbols are used throughout the manual, and they have the following meanings: INFORMATION! Information, advice, tip, or recommendation WARNING! Warning general danger ELECTRIC SHOCK! Warning danger of electric shock HOT SURFACE! Warning danger of hot surface DANGER OF FIRE! Warning danger of fire...

  • Page 4: Safety

    Safety WARNING! READ CAREFULLY AND KEEP IT FOR FUTURE REFERENCE! Safe use This appliance is only designed for household use. CAUTION: Accessible parts may become hot when used with cooking appliances. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the...
  • Page 5 Safety Do not use the cooker hood if the grease filter has not been fitted properly! Do not lean against the cooker hood. Never use the cooker hood as a working surface unless this is indicated explicitly. Grease and oil are inflammable when overheated. Remain in the cooking area when preparing meals.
  • Page 6 Safety The light emitted by LED lights is very dazzling and can damage the eyes. Do not look directly into the switched on LED lights for longer than 100 seconds. When washing grease filters in the dishwasher it is recommended to use a short, non-intensive programme.

  • Page 7: Your Cooker Hood

    Your cooker hood Dear customer! Welcome to our growing ASKO family! We are proud of our appliances. We hope that this appliance will be an appreciated and dependable aid for many years to come. Please read the operating instructions before use. They include general tips, information about the settings and adjustments you can make, and the best way to take care of your appliance.

  • Page 8: Description Hood

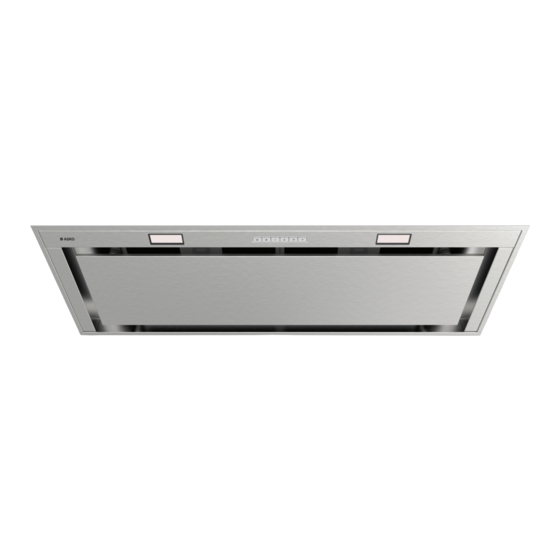

    Your cooker hood Description hood 1. Button Control 2. LED spot 3. Edge extraction panel 4. Grease filter 5. Magnet Description button control 1. Filter reset button 2. Filter indicator, signals when filters require cleaning 3. Lighting button, switches on/off and dims the lighting 4.

  • Page 9: Operation

    Operation Switching extraction on and off 1. Press the + (plus) button. The cooker hood will switch on at the lowest setting. 2. Press the + (plus) button again for a higher fan setting. Press and hold the + (plus) button for 1 second to select the highest setting (boost).

  • Page 10: Switching On Recirculation Mode

    Operation TIP! On delivery, this cooker hood is set for exhaust air to the outside. The hood can also be set to recirculation use (the air is blown back into the room after filtration through grease filters and a combi-filter). With an RMS kit (recirculation modification set), the air will first be cleaned by the grease filters, and then odours will be filtered by the combi-filter.

  • Page 11: Switching The Light On And Off

    Operation Switching the light on and off 1. Shortly press and release the light button. The light switches on at maximum strength. 2. Press and hold the lighting button to set the lighting strength. 3. To turn off the light, shortly press the light button while the light is on. The lighting changes from maximum to minimum strength and vice versa.

  • Page 12: Remote Control

    Remote control Description remote control NOTE! The remote control is available as an accessory for this cooker hood and is not included with this appliance. 1. Timer function 2. Increase light intensity 3. Colder light temperature 4. Decrease light intensity 5.

  • Page 13: Switching Extraction On And Off

    Remote control Switching extraction on and off 1. Press and hold the ‘Fan’ key on the remote for 1 second. The cooker hood will switch on at the lowest setting. 2. Press the ‘+’ key again for a higher fan setting. Press and hold the ‘+’ key for 1 second to select the highest setting (boost).

  • Page 14: Switching On Recirculation Mode

    Remote control TIP! The cooker hood can be used in extraction mode or recirculation mode. The air extraction capacity is adapted to the selected mode. The hood will start-up in the default extraction mode. It has to be reset for recirculation mode. With an RMS kit (Recirculation modification set) the air will first be cleaned by the grease filters and then odours will be filtered by the charcoal filter.

  • Page 15: Switching The Light On And Off

    Remote control Switching the light on and off 1. Press and hold the light key for 1 second. The light switches on at maximum strength. 2. Press and hold the ‘increase light’ or ‘decrease light’ key to set the lighting intensity. 3.

  • Page 16: Wi-Fi Connectivity

    Wi-Fi connectivity Wi-Fi/ConnectLife-app The appliance is fitted with a Wi-Fi module that allows the appliance to connect to a mobile device such as a smartphone or tablet. It offers to monitor the appliance status via the mobile device. NOTE! The monitoring function via mobile device shall not be used to replace the personal supervision of the cooking process directly on the appliance.
  • Page 17 Wi-Fi connectivity First steps to set up the Wi-Fi connectivity: 1. Check the “Requirements” as described above. 2. The hood and lights must be switched off. 3. Press the Wi-Fi button for three seconds. The Wi-Fi indicator will blink 3 times. 4.
  • Page 18 Wi-Fi connectivity Connection Setup Mode The appliance must be connected to the Cloud for the application to monitor and control the appliance remotely. Speed level 2 indicator and Wi-Fi indicator will light up. Touch the timer key to enable 'Connection Setup Mode'. Speed level 2 indicator will flash. This mode will be disabled automatically after 5 minutes.
  • Page 19 Wi-Fi connectivity Remote control mode switch on and off To be able to change function settings remotely, the appliance must be switched on and the ConnectLife-app must be enabled. Speed level 4 indicator and Wi-Fi indicator will lit static. Remote control mode is only available if the Wi-Fi connectivity setup has been performed. Touch the timer key to enable 'Remote control'.
  • Page 20 Wi-Fi connectivity Press the Wi-Fi button for 3 seconds. The Wi-Fi indicator is on. Press the Wi-Fi button to turn off Wi-Fi. The Wi-Fi indicator will turn off. After 3 seconds it will return to the Wi-Fi menu. Press the '-' (minus) button for 3 seconds to exit the Wi-Fi menu. Displaying the Wi-Fi status: Wi-Fi module disabled: Wi-Fi indicator is off.

  • Page 21: Maintenance

    Maintenance Cleaning WARNING! Important! For all maintenance, first, switch off the mains power to the cooker hood by pulling the plug out of the socket or by turning off the home's master switch. The hood needs to be cleaned regularly, both inside as well as outside (at least as often as the grease filter). Do not use abrasive cleaning products.
  • Page 22 Maintenance Removing cassette filter 1. Switch off the motor and lighting. 2. Pull the edge extraction panel carefully out of the magnetic seal. Tilt the edge extraction panel downwards. 3. Open the filter’s access latch. Support the filter with your hand. 4.

  • Page 23: Filter Indication

    Maintenance Active carbon filters The regenerable active carbon filter must be washed by hand with neutral cleaning products, or in the dishwasher at a maximum temperature of 65 °C (the washing should be done without any plates, dishes, cups, etc. in the machine). Do not use washing detergent. Remove the excess water without damaging the filter, remove the holder and let the filter dry in the oven for at least 40 minutes at a maximum temperature of 70 °C.

  • Page 24: Battery Of The Remote

    Maintenance Battery of the remote NOTE! When the batteries are replaced the pairing connection will remain. Replace the batteries in time, as the receiving distance will be shortened if the voltage of the battery is too low. Don’t forget to remove the batteries if you don’t use the remote for a long time. Don’t leave the remote lying upside down on a conductive surface.

  • Page 25: Technical Data

    Technical data EU Product Sheet Data determined according to: Standard EN61591 and Commission Regulations (EU) no. 65/2014 and (EU) no. 66/2014. CBB761SC CBB861SC Trademark ASKO ASKO Type of model BU70BA-DDC02 BU90BA-DDC02 Annual Energy Consumption (AEC ) [kWh/a] 36.1 36.8 hood...

  • Page 26: Eu Product Fiche

    Wi-Fi module Operating frequency range 2412 - 2472 MHz (16 channels) Maximum output power 17.7 dBm EIRP average (calculated) Maximum antenna gain 2.7 dBi Hereby, ASKO declares that the radio equipment type Cooker hood is in compliance with Directive 2014/53/EU.

  • Page 27: Installation

    Installation Safety regulations WARNING! This appliance should only be connected by a registered installer. Always follow the installation instructions in the installation manual provided. Check the appliance for transport damage. Do not connect a damaged appliance. Faulty parts may only be replaced by original parts. The manufacturer can only guarantee that original parts meet safety requirements.
  • Page 28 Installation WARNING! Never open the casing of the appliance. Disconnect the appliance from the mains supply before starting any repair work. We advise you to wear protective gloves when assembling the cooker hood because of the possible sharp edges. The distance between the lowest point of the cooker hood and the supporting surface for the cooking vessels gas hob should be at least 65 cm.

  • Page 29: Preparations For Installation

    Installation Preparations for installation...

  • Page 30: Appliance Dimensions

    Installation Appliance dimensions Built-in...
  • Page 31 Installation...
  • Page 32 Installation...

  • Page 33: Environmental Aspects

    Environmental aspects Tips for energy-efficient cooking with hoods Use a low extractor setting and use the highest setting (boost) if necessary. A well-ventilated kitchen makes the range hood more efficient. Clean filters regularly and replace filters when needed to keep the filter efficiency high, as a saturated filter cannot perform and leads to longer usage times.

  • Page 34: Your Notes

    864635 We reserve the right to make changes.
