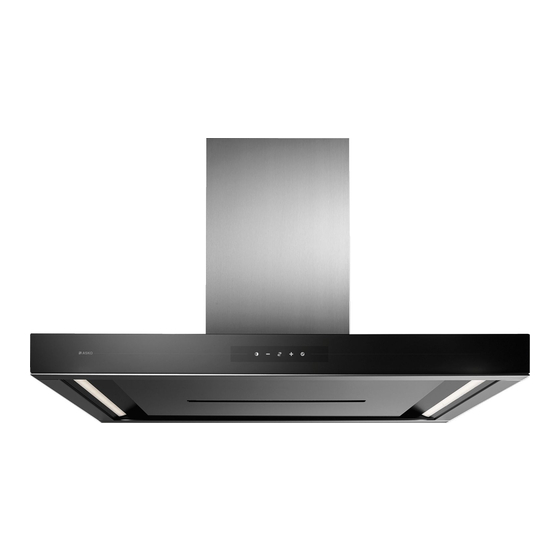

- Page 1 Instructions for use Cooker hood CW4930G / WS90CNTHJ CW41230G / WS12CNTHJ CI41230G / ES12CNTIJ...
- Page 2 Instructions for use EN 3 - EN 14 Pictograms used Important information Tipp...
- Page 3 CONTENTS Your cooker hood Introduction Description Operation Cleaning filters Maintenance Cleaning Lighting Technical specifications Appendix Disposal EN 3...
- Page 4 YOUR COOKER HOOD Introduction On reading these user manuals you will soon become familiar with the features of this appliance. Please read the appliance’s safety and maintenance instructions. Please retain the operating and installation instructions as these may be useful for future reference. Please read the separate safety instructions prior to use.
- Page 5 Description 1. Switching on/off and dimming the lighting 2. Reducing air extraction capacity and switching off 3. Cleaning filter indicator 4. Proximity sensor 5. Display status 6. Proximity sensor 7. Switching on and increasing air extraction capacity 8. Timer function indicator EN 5...
- Page 6 Operation Switching extraction on and off • Press the ‘+’ key. The cooker hood will switch on at the lowest setting. • Press the ‘+’ key again to set a higher extraction setting. Press and hold the ‘+’ key for 2 seconds to select the highest setting (boost) (see switching on boost setting).
- Page 7 Changing the colour temperature Choose the temperature colour of the light from warm to cold. • Press and hold the lighting key. Press the ‘+’ key to make the light ‘colder’ or press the ‘-’ key to make the light ‘warmer’. Switch on boost setting: •...
- Page 8 Active mode • The proximity sensor detects a user standing in front of the hood and will illuminate the icons. After 3 seconds the lighting will automatically switch on. Disable the active mode • Simultaneously press the ‘+’ and ‘timer’ key for 3 seconds. The active mode is disabled.
- Page 9 MAINTENANCE Cleaning Important! For all maintenance first switch off the mains power to the cooker hood by pulling the plug out of the socket or by turning off the home's master switch. The hood needs to be cleaned regularly, both inside as well as outside (at least in the same frequency as the grease filter cleaning).
- Page 10 MAINTENANCE Removing cassette filter Switch off the motor and lighting. Push in the locking lugs at the front behind the glass plate and pull the glass plate carefully out of the seal. Tilt the glass plate downwards. Open the filter’s access hatch. Remove the filter from the hood.
- Page 11 MAINTENANCE Active carbon filters: The regenerable active carbon filter must be washed by hand with neutral cleaning products, or in the dishwasher at a maximum temperature of 65 °C (the washing should be done without any plates, dishes, cups, etc. in the machine). Remove the excess water without damaging the filter, remove the holder and let the filter dry in the oven for at least 15 minutes at a maximum temperature of 100 °C.
- Page 12 TECHNICAL SPECIFICATIONS CW4930G CW41230G Hood type Type / Approval Wall / WS90CNTHJ Wall / WS12CNTHJ Control type Touch control Touch control Width 90 cm 120 cm Supply 220-240 V, 50/60 Hz 220-240 V, 50/60 Hz Voltage, Frequency Power 177,6 W...
- Page 13 TECHNICAL SPECIFICATIONS CI41230G Hood type Type / Approval Island / ES12CNTIJ Control type Touch control Width 120 cm Supply 220-240 V, 50/60 Hz Voltage, Frequency Power 179 W Power motor 170 W Power lights 2 x LED 4,5 W Level 1 272 m³/h, 45 dB(A), 70 Pa Air flow, Noise, Pressure Level 2...
- Page 14 APPENDIX Disposal Disposal of packaging and appliance Sustainable materials have been used during manufacture of this appliance. This appliance must be disposed of responsibly at the end of its life cycle. Ask your local authorities for more information about how to do this. The appliance packaging is recyclable.
- Page 15 EN 15...
- Page 16 *712267* 712267...
