HOMCOM HOME GYM Assembly Instruction Manual page 6

Step 1 – Assembly Instructions.

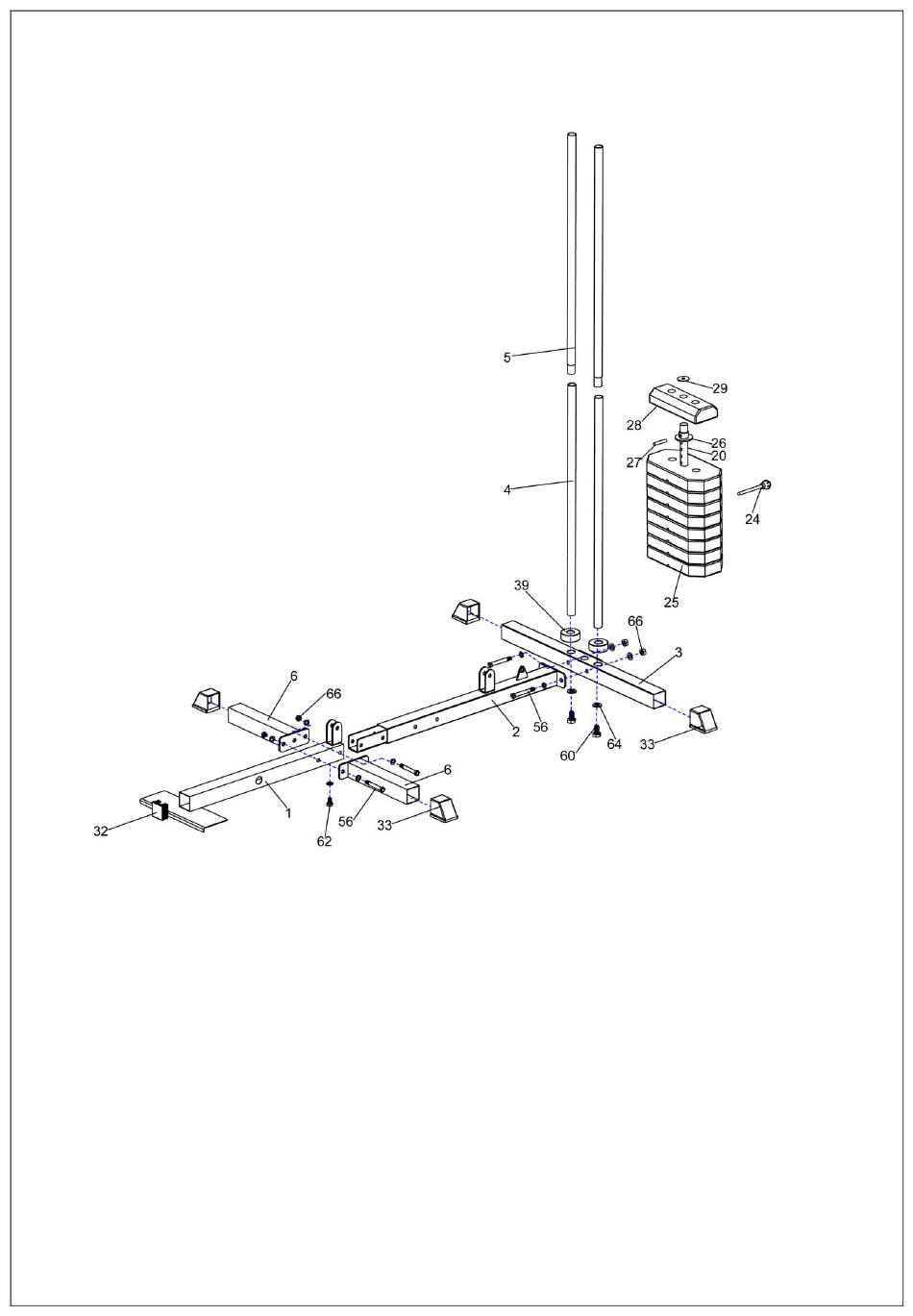

Assembly of the base frame and weight stack
1) Insert the guide tubes (down)(4-2pcs) to the back base tube (3), secured with hex bolt (60-
2pcs) and washer (64-2pcs).Screw together middle base tube (2) and the back base tube (3),
secured with hex bolt (56-2pcs), washer (64-4pcs) and nylon nut (66-2pcs).
2) Insert the middle base tube (2) into the Front base tube(1),then attach Bilateral Tube(6) to
the Front base tube(1), secured with hex bolt (56-2pcs), washer (64-4pcs), nylon nut (66-
2pcs),washer(63-1pc) and hex bolt(62-1pc).
3) Slide both guide tubes (4-2pcs) into the rubber rings (39-2pcs).
4) Place the weight stacks (25-8pcs) into the guiding tubes (4-2cps). Mark sure the groove
downward.
5) Install black fixing bushing (26) into selector bar (20). Let fixing pin (27) go through the
hole of black fixing bushing and first hole of selector bar , then attach to the bottom slot of
top plate (28). The put selector bar (20) into the weight stacks (26). Attach the black washer
(29) on the middle hole of top plate (28).
6) Insert the guide tubes(up) (5-2pcs) into the guide tubes(down) (4-2pcs).
