HOMCOM HOME GYM Assembly Instruction Manual page 12

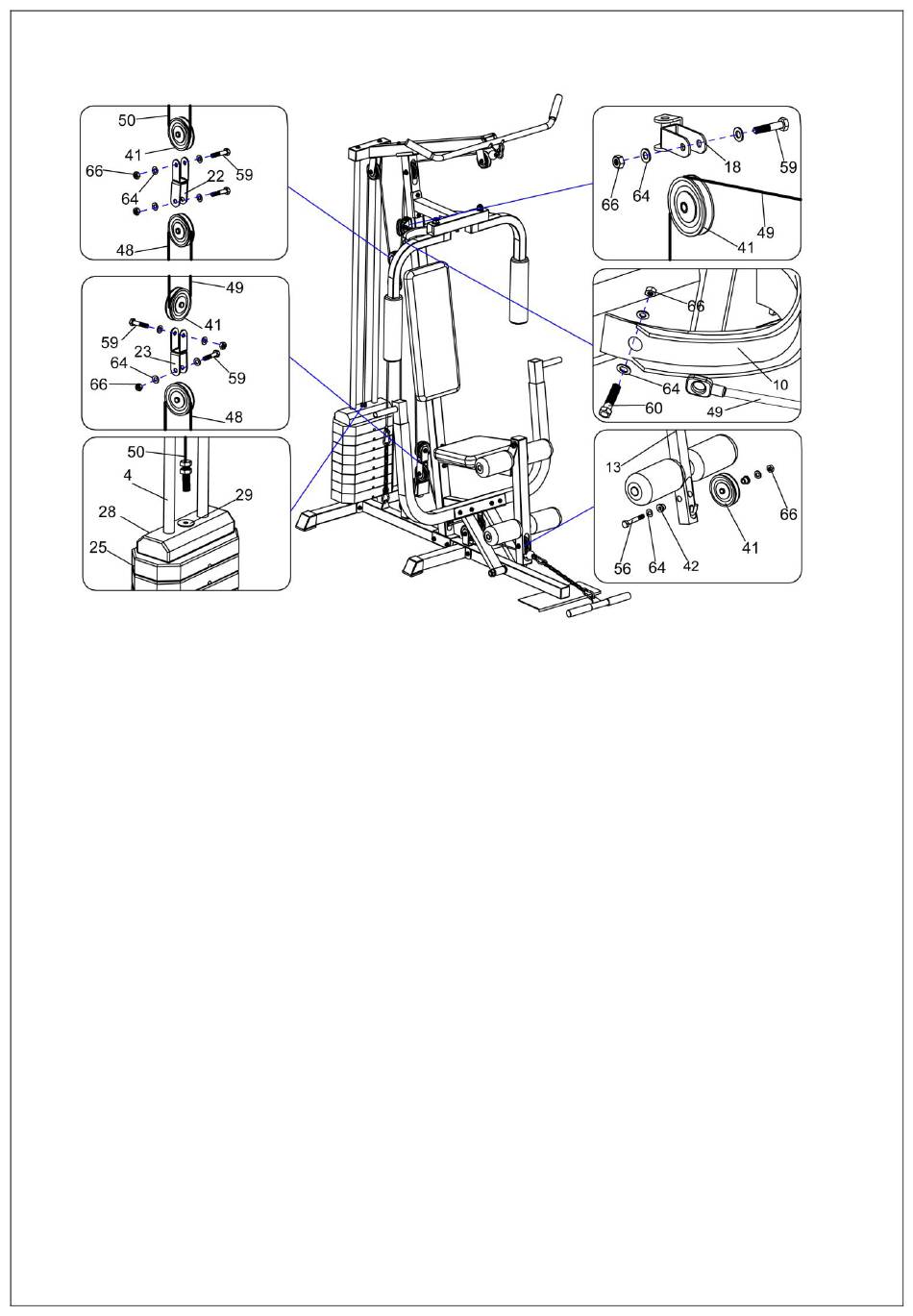

Assembly of the wire cables and pulleys
Cable 48 assembly: Start at No.6 to put cable first then assembly pulley and follow
Cable 49 assembly: Start at fixing cable 49 on right butterfly arm, and put cable first
Cable 50 assembly: Start at No.1 to put cable first then assembly pulley and follow
Please make sure all pulleys can turn and cables are tight.
PS: Please adjust and tighten the threaded bolt of cable 50 to selector bar (20) if the
cables became not tight enough after work out.
NOTE:
IF YOU FIND THAT THE CABLES ARE NOT LONG ENOUGH, USE THE
CHAIN AS AN EXTENSION WITH POTHHOOK AS CONNECTORS.
ARROW to go around No.7, 8 ,9,10,11 and 5. And finally use snap
hook (44) to connect cable 48 and chain (45) together to fix.
then assemble pulley on No.13 then follow ARROW to go around
No.12 up to No.14 to fix cable 49 on left butterfly arm.
ARROW to go around No.2, 3 and 4. And finally let the front
threaded bolt of cable 50 to go through big washer (29) then
thread into the head of the selector bar (20) to lock together.
11
