Part Numbers
Global Part Number
European Part Number

User Manual and Add-Ons

Find the documents via the
Part #
MAN1032
EXL6 & XL6 Prime User Manual
MAN1142
Rechargeable Battery Manual
HE-BAT019
Rechargeable 3.6V Lithium Battery
HE-XCK
Programming Cables
2 channel Analog Output I/O option kit,
HE-XDAC
selectable 0-10V, +/-10V, 4-20mA.
4 channel Analog Output I/O option kit,
HE-XDAC107
selectable 0-10V, +/-10V, 4-20mA.
HE-XKIT
Blank I/O Board
Adapter, RJ45 (8P8C) male to 8-pos-
HE200MJ2TRM
ition terminal strip.
Ferrite core for filtering out electrical
HE-FBD001
noise.

Battery Maintenance

The EXL6 has an advanced battery system that uses a
rechargeable lithium battery. The battery powers the real
time clock when power is removed, and it is needed for
register data retention. Manual MAN1032 via the
mentation Search
for more details on battery replacement.

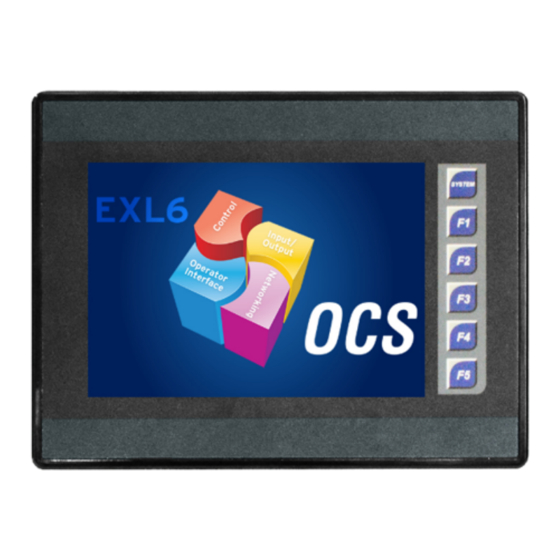

EXL6 Datasheet - Model 3
12 DC In, 12 DC Out, 2 - 12-bit Analog In
MAN1170-21-EN_EXL6_Mod3
HE-EXL1E3
HEXT371C113
Documentation
Search.
Description
Docu-

Table of Contents

Page 1
1
1
2
2
2
2
2
3
3
3
4
4
4
4
5
5
5
5
5
6
6
6
6
6
7
7
7
7
7
8
8
8
8
9
9
9
9
9

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXL6 3 and is the answer not in the manual?

Questions and answers

Related Manuals for HORNER EXL6 3

Summary of Contents for HORNER EXL6 3

  • Page 1: Table Of Contents

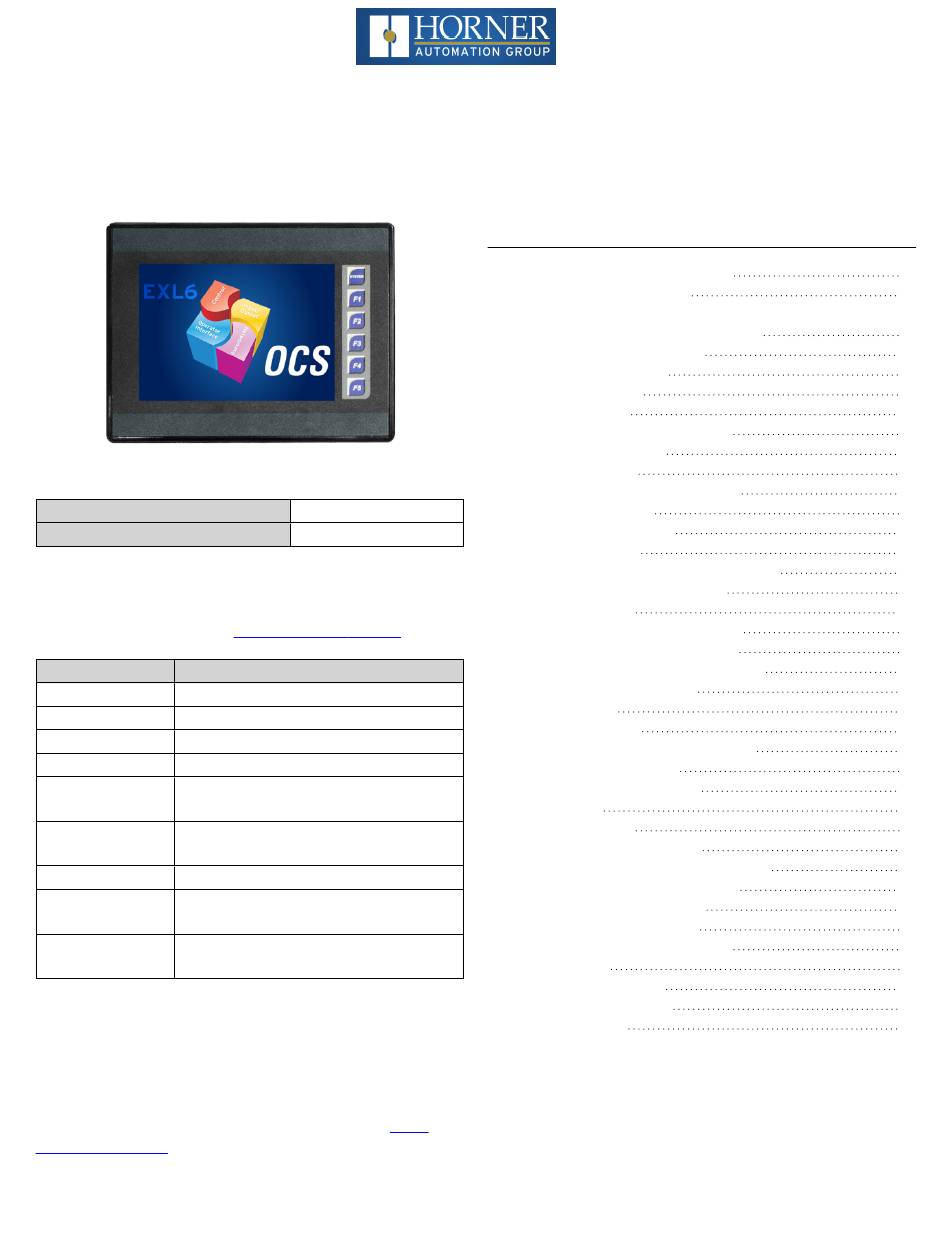

    EXL6 Datasheet - Model 3 12 DC In, 12 DC Out, 2 – 12-bit Analog In MAN1170-21-EN_EXL6_Mod3 Table of Contents User Manual and Add-Ons Battery Maintenance TECHNICAL SPECIFICATIONS General Specifications Control and Logic User Interface Connectivity CONTROLLER OVERVIEW Overview of OCS Power Wiring Part Numbers MODEL 3 SPECIFICATIONS...

  • Page 2: Technical Specifications

    TECHNICAL SPECIFICATIONS General Specifications User Interface Required Power Display Type 5.77” VGA TFT (450 nit typical) 420mA @ 12VDC 230mA @ 24VDC (Steady State) Resolution 640 x 480 Required Power 25A for < 1ms @ 24VDC, DC Color 16-bit (65,536) (Inrush) switched Screen Memory...

  • Page 3: Controller Overview

    CONTROLLER OVERVIEW Overview of OCS Power Wiring NOTE: The Primary Power Range is 10VDC to 30VDC. Primary Power Port Pins Signal Description Ground Frame Ground Input Power Supply Ground Input Power Supply Voltage DC Input / Frame Solid/Stranded Wire: 12-24 awg (2.5-0.2mm) Strip length: 0.28”...

  • Page 4: Model 3 Specifications

    Wiring: Model 3 MODEL 3 SPECIFICATIONS Digital DC Input Analog Inputs 12 Including 4 Configurable HSC Number of Inputs per Module Inputs Channels Commons per Module 0 – 10VDC Input Voltage Range 12VDC / 24VDC Input Ranges 0 – 20mA Absolute Max. Voltage 30VDC Max.

  • Page 5: Wiring: Inputs And Outputs

    Wiring: Model 3 WIRING: INPUTS AND OUTPUTS Jumper Settings for Model 3 Analog Inputs Information Raw input values for channels 1-4 are found in the registers as Integer- type data with a range from 0 – 32000. Analog inputs may be filtered digitally with the Filter Con- stant found in the Cscape Hardware Configuration for Ana- log Inputs.

  • Page 6: J1 Wiring - Digital In / Analog In

    Wiring: Model 3 J1 Wiring - Digital In / Analog In Built-In I/O The I/O is mapped into OCS Register space, in three sep- arate areas: Digital/Analog I/O, High-Speed Counter I/O, and High-speed Output I/O. Digital/Analog I/O location is fixed starting at 1, but the high-speed counter and high- speed output references may be mapped to any open register location.

  • Page 7: Communications

    COMMUNICATIONS Serial Communication Dip Switches MJ1/2 Serial Ports MJ1/2 Independent Serial Ports MJ1: RS-232 w/Full Handshaking MJ2: RS-485 Half-Duplex MJ1 PINS MJ2 PINS SIGNAL DIRECTION SIGNAL DIRECTION DIP Switches NAME FUNCTION DEFAULT GROUND GROUND MJ3 RS-485 ON = +5V @ +5V @ Termination Terminated 60mA...

  • Page 8: Dimensions & Installation

    DIMENSIONS & INSTALLATION Dimensions & Panel Cutout Installation Procedure 1. Carefully locate an appropriate place to mount the OCS. Be sure to leave enough room at the top of the unit for insertion and removal of the microSD™ card. 2. Carefully cut the host panel per the diagram, cre- ating a 31.9mm x 175.0mm, with a +1mm/-0mm opening into which the OCS may be installed.

  • Page 9: Safety & Maintenance

    This device must accept any interference received, includ- ing interference that may cause undesired operation. Technical Support North America 1 (317) 916-4274 (877) 665-5666 www.hornerautomation.com techsppt@heapg.com Europe +353 (21) 4321-266 www.hornerautomation.eu technical.support@horner-apg.com Page 9...
