Part Numbers
Global Part Number
European Part Number
User Manual and Add-Ons
Find the documents via the Documentation Search.
Part #
MAN0964
XL4 & XL4 Prime User Manual
HE-BAT013
CR2032 Lithium Battery
HE-XCK
Programming Cables
2 channel Analog Output I/O option kit,
HE-XDAC
selectable 0-10V, +/-10V, 4-20mA.
4 channel Analog Output I/O option kit,
HE-XDAC107
selectable 0-10V, +/-10V, 4-20mA.
HE-XKIT
Blank I/O Board
Adapter, RJ45 (8P8C) male to 8-pos-
HE200MJ2TRM
ition terminal strip.
Ferrite core for filtering out electrical
HE-FBD001
noise.
Backup Battery
The XL4 Prime uses a Renata CR2032 lithium battery to
run the Real Time Clock. The battery life is 7-10 years.

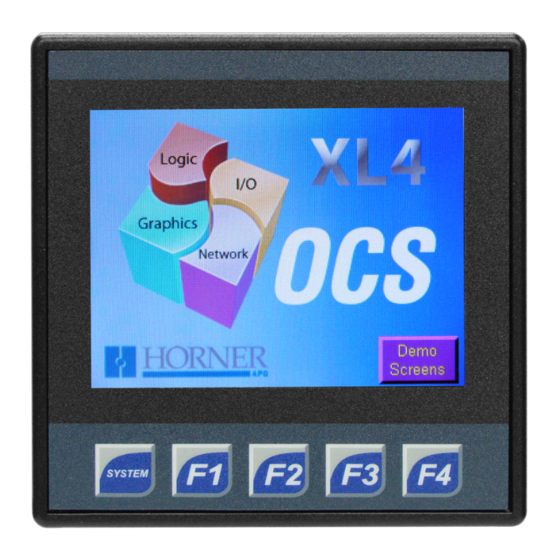

XL4 Prime - Model 2
12 DC In, 6 Relay Out, 4 - 12-bit Analog In
MAN1320-21-EN_XL4P_Mod2
HE-XPC1E2
HEXP251C112
Description
Table of Contents
Page 1
1
1
1
2
2
2
2
2
2
3
3
3
4
4
4
4
5
5
5
5
5
5
6
6
6
6
6
7
7
7
7
7
8
8
8
8
9
9
9
9
9
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for HORNER HE-XPC1E2
Summary of Contents for HORNER HE-XPC1E2
-

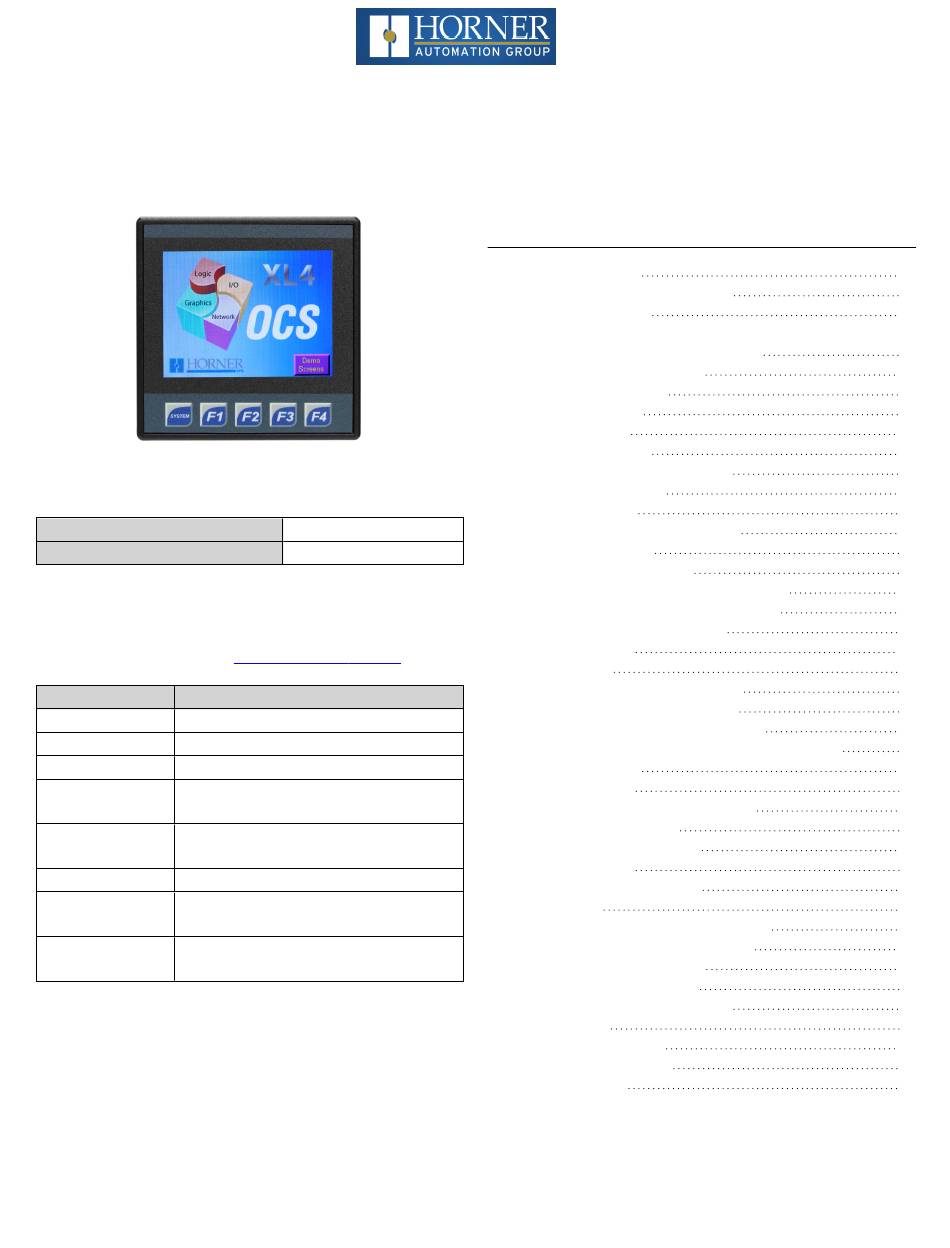

Page 1: Table Of Contents
Backup Battery TECHNICAL SPECIFICATIONS General Specifications Control and Logic User Interface Connectivity USB Webcams CONTROLLER OVERVIEW Part Numbers Overview of OCS Power Wiring MODEL 2 SPECIFICATIONS Global Part Number HE-XPC1E2 Digital DC Input European Part Number HEXP251C112 Digital Relay Outputs Analog Inputs, Medium Resolution WIRING: INPUTS AND OUTPUTS User Manual and Add-Ons Analog Inputs Information Digital Inputs Find the documents via the Documentation Search. Relay Life Jumper Settings for Model 2 Part # Description Back Panel Torque Ratings... -
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS General Specifications User Interface Typical P ower B ack- Display T ype 3.5” T FT Color 407mA @ 10V (4.07W) 192mA @ 24V (4.61W) light 100% Screen B rightness 640cd/m2 ( nits) Power B acklight @ Resolution QVGA ( 320 x 2 40) 167mA @ 24V (4.01W) Color 16-bit ... -
Page 3: Controller Overview
CONTROLLER OVERVIEW Overview of OCS Power Wiring NOTE: The Primary Power Range is 10VDC to 30VDC. Primary Power Port Pins Signal Description Ground Frame Ground Input Power Supply Ground Input Power Supply Voltage DC Input / Frame Solid/Stranded Wire: 12-24 awg (2.5-0.2mm) Strip length: 0.28” (7mm) Torque, Terminal Hold-Down Screws: 4.5 – 7 in-lbs (0.50 – 0.78 N-m) DC- is internally connected to I/O V-, but is isolated from CAN V-. A Class 2 power supply must be used. Power Up 1. ... -
Page 4: Model 2 Specifications
Wiring: Model 2 MODEL 2 SPECIFICATIONS Digital DC Input Analog Inputs, Medium Resolution 12 i ncluding 4 c onfigurable H SC Number o f C hannels Inputs p er M odule inputs Input R anges 0-10VDC, 0 -20mA, 4-20mA Commons ... -
Page 5: Wiring: Inputs And Outputs
Wiring: Model 2 WIRING: INPUTS AND OUTPUTS Analog Inputs Information Relay Life Raw input values for channels 1-4 are found in the registers as Integer- type data with a range from 0 – 32000. Analog inputs may be filtered digitally with the Filter Con- stant found in the Cscape Hardware Configuration for Ana- log Inputs. Valid filter values are 0-7 and act according to the following chart: WARNING: Exposure to some chemicals may degrade the sealing proper- ties of materials used in the Tyco relay PCJ. Cover/Case & Base: Mistubishi engineering Plastics Corp. 5010GN6-30 or 5010GN6-30 M8 (PBT) Sealing Material: Kishimoto 4616-50K (I part epoxy resin) Jumper Settings for Model 2 Data Values Input Mode: Data Format, 1 2-bit I NT: 0-20mA, ... -
Page 6: J1 Wiring - Digital In / Analog In
Wiring: Model 2 J1 Wiring - Digital In / Analog In Wiring Details Solid/Stranded Wire: 1 2-24 awg (2.5-0.2mm2). Strip Length: 0 .28” (7mm). Torque, Terminal Hold-Down Screws: 4 .5 – 7 in-lbs (0.50 – 0.78 N-m). BUILT-IN I/O The I/O is mapped into OCS Register space, in three sep- arate areas – Digital/Analog I/O, High-Speed Counter I/O, and High-speed Output I/O. Digital/Analog I/O location is fixed starting at 1, but the high-speed counter and high- speed output references may be mapped to any open register location. NOTE: The 0V terminals are internally connected. Digital and Analog I/O Functions Digital ... -
Page 7: Communications
COMMUNICATIONS Serial Communication CAN Communications MJ1/2 Serial Ports 2 Serial Ports on 1 Module Jack (8posn) MJ1: RS-232 w/Full Handshaking MJ2: R S-485 Half-Duplex CAN Pin Assignments SIGNAL DESCRIPTION MJ1 PINS MJ2 PINS CAN Ground – Black SIGNAL DIRECTION SIGNAL DIRECTION CN_L CAN Data Low – Blue SHLD Shield Ground – None CN_H CAN Data High – White GROUND GROUND +5V @ +5V ... -
Page 8: Dimensions & Installation
DIMENSIONS & INSTALLATION XL4 & XL4 Prime Dimensions Installation Information The XL4/XL4 Prime utilizes a clip installation method to ensure a robust and watertight seal to the enclos- ure. Please follow the steps below for the proper installation and operation of the unit. This equipment is suitable for Class I, Division 2, Groups A, B, C and D or non-hazardous locations only. Digital outputs shall be supplied from the same source as the operator control station. Jumpers on connector JP1 shall not be removed or replaced while the circuit is live unless the area is known to be free of ignitable concentrations of flam- mable gases or vapors. WARNING- The USB ports are for operational main- tenance only. D o not leave permanently connected unless area is known to be non-hazardous. Installation Procedure 1. Carefully locate an appropriate place to mount the OCS Be sure to leave enough room at the top of the ... -
Page 9: Safety & Maintenance
This device complies with Part 15 of the FCC Rules. Operation is aging voltage potential between the laptop and controller. subject to the following Ensure the controller a nd laptop are grounded for max- two conditions: imum protection. Consider using a USB isolator due to 1. This device may not cause harmful interference. voltage potential differences as a preventative measure. 2. This device must accept any interference received, includ- ing interference that may cause undesired operation. Technical Support North America 1 (317) 916-4274 (877) 665-5666 www.hornerautomation.com techsppt@heapg.com Europe +353 (21) 4321-266 www.hornerautomation.eu technical.support@horner-apg.com Page 9...
