MODEL A BUILT-IN I/O: 12 DIGITAL IN, 12 DIGITAL OUT, 4 ANALOG IN/RTD IN, 2 ANALOG OUT
MODEL R BUILT-IN I/O: 12 DIGITAL IN, 6 RELAY OUT, 2 PWM OUT, 4 ANALOG IN/RTD IN, 2 ANALOG OUT

1 TECHNICAL SPECIFICATIONS

1.1 General

Primary Pwr.
24VDC +/- 20%
Range
Typical power
140mA @ 24VDC
Backlight 100%
170mA @ 19.2VDC
Power
105mA @ 24VDC
Backlight Off
135mA @ 19.2VDC
30mA ˂ 1ms
Inrush Current
Battery backed;
Real Time Clock
lithium coin cell CR2450
Clock Accuracy
+/- 90 Secs/Month
Relative Humidity
5 to 95% Non-condensing
Operating Temp.
-10°C to +60°C
Storage Temp.
-20°C to +70°C
Weight
360g
Mounting Clips
4 composite type
Housing Material
Polycarbonate, UL rated
Panel Seal
Silicone rubber
100% Recyclable
Packaging
paper fiber materials
Controller,
3 x I/0 connectors,
Included in Box
4 x mounting clips,
1 x power connector, Quick
Reference Guide

1.2 User Interface

4.3" 65k Color
Display
Transmissive
Resolution
480 x 272 pixels
Backlight
White LED
20,000 hrs to reach
Backlight Lifetime
50% brightness
Yes, software
Backlight Control
controlled (ON/OFF)
User-Programmable
250
Screens/Pages
No. of Objects/Screens
30
Screen Memory
256kB
Keypad
Slide Keys (Touch)
Tactile Feedback
Optional Sound
Number of Keys
Slide Keys (Touch)
Unit 1 Centrepoint, Centre Park Road, Cork, T12 H24E, Ireland. | (p) +353 21 4321 266 (f) +353 021 4321 826 | www.horner-apg.com
Please visit our website for a complete listing and to learn more about certified Horner Automation products.
This document is the property of Horner Automation Group, and is subject to change.

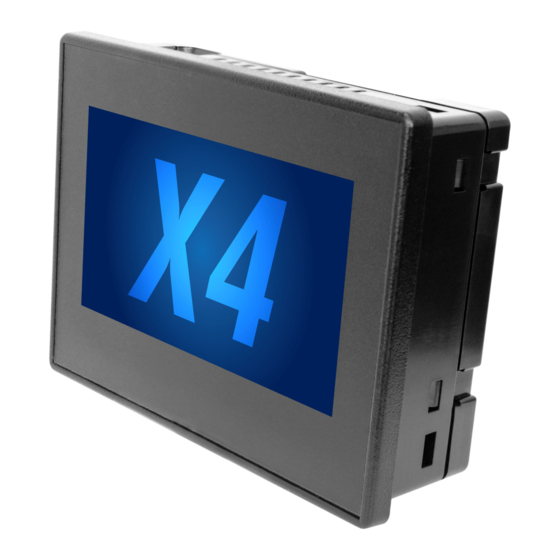

X OCS MODEL: HE-X4

1.3 Connectivity

Serial Ports
1 x RS232, 1 x RS485
On-board, software
485 Terminations
controlled
USB mini-B
Slave only
USB Programming
Yes
Support
USB Type
USB 2.0
CAN Hardware
CAN 2.0
CAN Port Connector
RJ45 (Red)
CAN Port Speeds
125kB, 250kB, 500kB,
Support
1Mb/sec.
On-board, software
CAN Port Termination
controlled
CAN Protocols
CsCAN
microSD (SDHC, SDXC
IN FAT32 format,
Removable Memory In
support for 32GB max.
Application Updates,
Datalogging, more)
1.4 Control & Logic
Control Language
Advanced ladder logic
Support
Full IEC 61131-3 languages
Logic Program Size
256kB
Non-Retentive Memory
128kB
Internal Storage
16Mb
Memory
Total Program
2.5Mb
Memory
Logic Scan Rate
0.4ms/kB
%I (Digital Inputs)
1024
%Q (Digital Outputs)
1024
%AI (Analog Inputs)
256
%AQ (Analog
256
Outputs)
%M (Retentive Bits)
1024
%T (Temporary Bits)
1024
%R (Retentive Registers)
5000
%D (Display Bits)
250
%K (Key Bit)
4
%S (Status Bits)
16
%SR (System Registers) 192
page 1 of 7

1.5 I/O Connections

Removable 3.5 m
Terminal Type
color-coded
I/O Options
None
Remote I/O
Serial, CAN, Ethernet

1.6 Testing

Shock
IEC 60068-2-27
Vibration
IEC 60068-2-6
Washdown
NEMA 4X
USA:
https://hornerauto-
mation.com/certifications/
Certifications
Europe:
http://www.
(UL/CE)
horner-apg.com/en/support/
certification.aspx

1.7 Inputs/Outputs Model Overview

MODEL R
DC In
12
DC Out
2
Relays
6
HS In
4
HS Out
2
mA In/RTD
4
mA Out
2
There are four high-speed inputs of the total DC Inputs.
There are two high-speed outputs of the total DC outputs.
Model A supports sourcing outputs. Model R DC outputs are
sinking with integral pull up resistors.
technical specifications continued on next page...
g.com
g.com
g.com
g.com
g.com
g.com
MAN1138-03-EN-EU
MODEL A
12
12
4
2
4
2
