Summary of Contents for Lantronix M/E-TX-FX Series

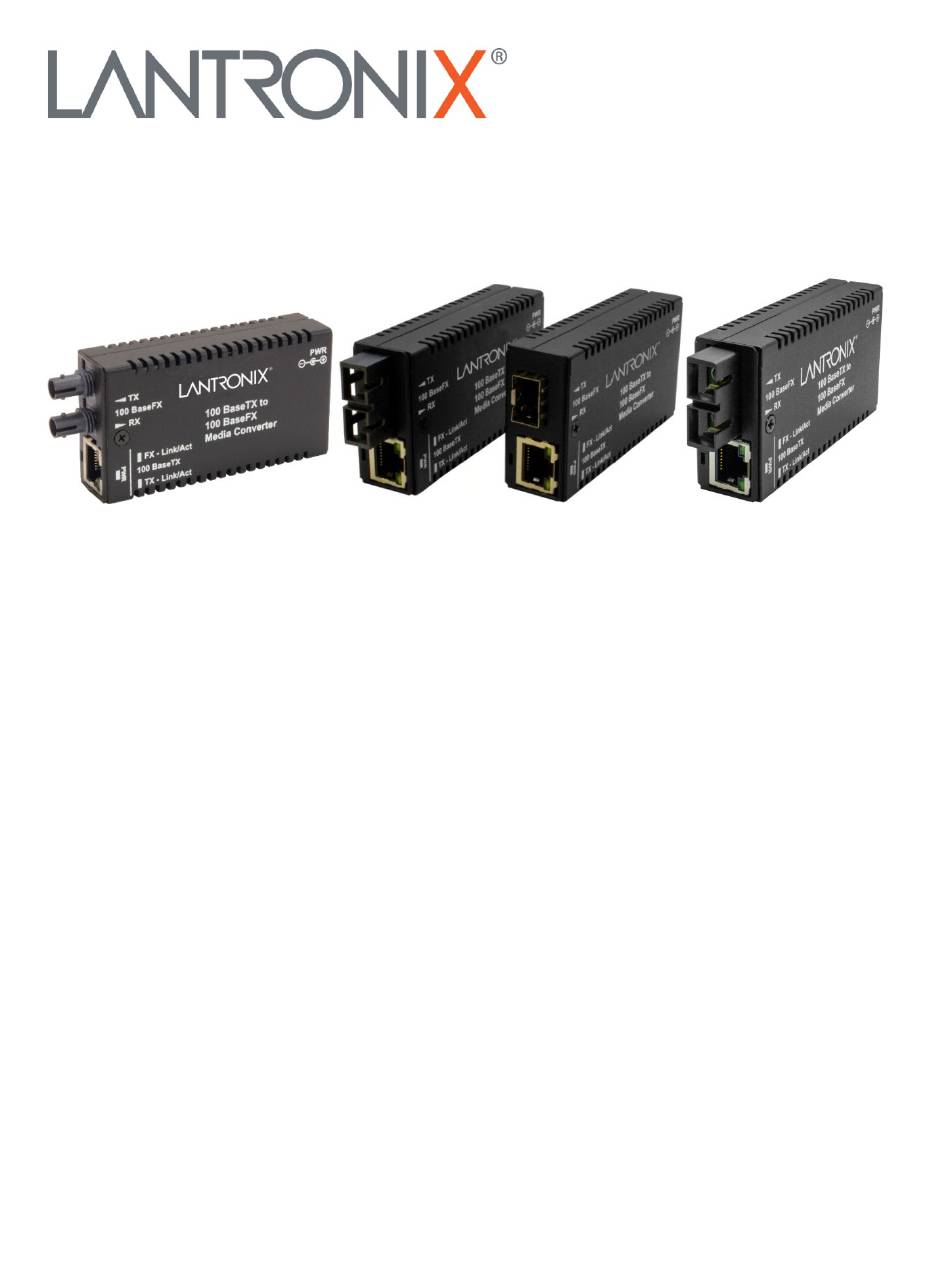

- Page 1 M/E-TX-FX Series Mini Fast Ethernet Media Converters User Guide Part Number 33517 Revision C January 2023...
-
Page 2: Revision History
Intellectual Property © 2022, 2023 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries. All other trademarks and trade names are the property of their respective holders. -
Page 3: Table Of Contents
Far-End Fault (Always ON) ________________________________________________________________________ 11 Fiber Optics _________________________________________________________________________________________ 12 Cable Specifications _______________________________________________________ 11 Copper Cable________________________________________________________________________________________ 12 Contact Us _______________________________________________________________ 13 4 Troubleshooting Declaration of Conformity _________________________________________________________________________ 14 Compliance Information _____________________________________________________ 14 FCC Regulations ____________________________________________________________________________________ 14 Canadian Regulations ______________________________________________________________________________ 14 M/E-TX-FX Series User Guide... -
Page 4: Introduction
Introduction Product Description Lantronix M/E-TX series of Fast Ethernet stand-alone Mini media converters provide cost effective media conversion between 100Base-TX ports and 100Base-FX ports. With its fixed configuration, deployments are just plug-and-play, and its small size makes it ideal for locations where space is limited. Operating at Layer 1, the physical layer, data is passed through the converter at line speed, making it ideal for applications where low latency is essential. -
Page 5: Features
Media Dependent Interface (MDI) leads, the power source, connector, and cable attached to the barrel power connector must meet the isolation requirement specified in IEEE802.3-2005. Failure to observe this warning could result in an electrical shock. M/E-TX-FX Series User Guide... - Page 6 Failure to observe this warning could result in an eye injury or blindness. WARNING: Use of controls, adjustments, or the performance of procedures other than those specified herein could result in hazardous radiation exposure. The information in this user guide is subject to change. M/E-TX-FX Series User Guide...
-
Page 7: Installation
• Wear an ESD wrist grounding strap before handling any module or component. If you do not have a wrist strap, maintain grounded contact with the system unit throughout any procedure requiring ESD protection. Copper and Fiber Ports The figure below shows the front panel of the M/E-TX-FX-01 media converters. M/E-TX-FX Series User Guide... -
Page 8: Connect The Fiber Cable
3. Connect the fiber cable to the other device (another media converter, hub, etc.) as follows: Connect the male TX cable connector to the female RX port. • Connect the male RX cable connector to the female TX port. • M/E-TX-FX Series User Guide... -
Page 9: Connect The Twisted-Pair Copper Cable
SKU. For example: M/E-TX-FX01-NA = North America, -LA = Latin America, -EU = Europe, -UK = United Kingdom, -SA = South Africa, -JP = Japan, -OZ = Australia, and -BR = Brazil. M/E-TX-FX Series User Guide... -
Page 10: Power Up The Media Converter
3. Verify that the media converter is powered up by observing the lit power indicator LED on the front panel. DC Power See the Lantronix SPS-2460-SA DC external power supply user guide for powering the media converter. M/E-TX-FX Series User Guide... -
Page 11: Operation
Far-End Fault (Always ON) When a fault occurs on an incoming fiber link, the media converter transmits a Far-End Fault signal on the outgoing fiber link. Cable Specifications Cable physical characteristics must meet or exceed IEEE 802.3 specifications. ™ M/E-TX-FX Series User Guide... -
Page 12: Fiber Optics
Pins 1&2 and 3&6 are the two active pairs in an Ethernet network. • • Use only dedicated wire pairs for the active pins: (e.g., blue/white & white/blue, orange/white & white/orange, etc.) Do not use flat or silver satin wire. • M/E-TX-FX Series User Guide... -
Page 13: Troubleshooting
• Tech Support : +1 (800) 526-8766, Tel: +1 (949) 453-3990, or https://www.lantronix.com/technical-support/ • Contact Us : https://www.lantronix.com/about-us/contact/ • Warranties : Lantronix Limited Warranty Policy, Extended Warranties Note that this manual may provide links to third party websites for which Lantronix is not responsible. M/E-TX-FX Series User Guide... -
Page 14: Compliance Information
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables aux appareils numériques de la Class A prescrites dans le Règlement sur le brouillage radioélectrique édicté par le ministère des Communications du Canada. M/E-TX-FX Series User Guide... - Page 15 Suite250 Irvine, CA 92618, USA Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support https://www.lantronix.com/technical-support/. Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. M/E-TX-FX Series User Guide...
