1. Interface of power line : Plug in AC 100
~ 120V, 8A / AC 220 ~ 240V, 4A 50 ~ 60 Hz
power supply
2. TX I---TX VI : 6 channels infrared
radiator interface (adopt coaxial cable BNC
connector)
3. URGENT mode / FREE mode : Urgent
Connection

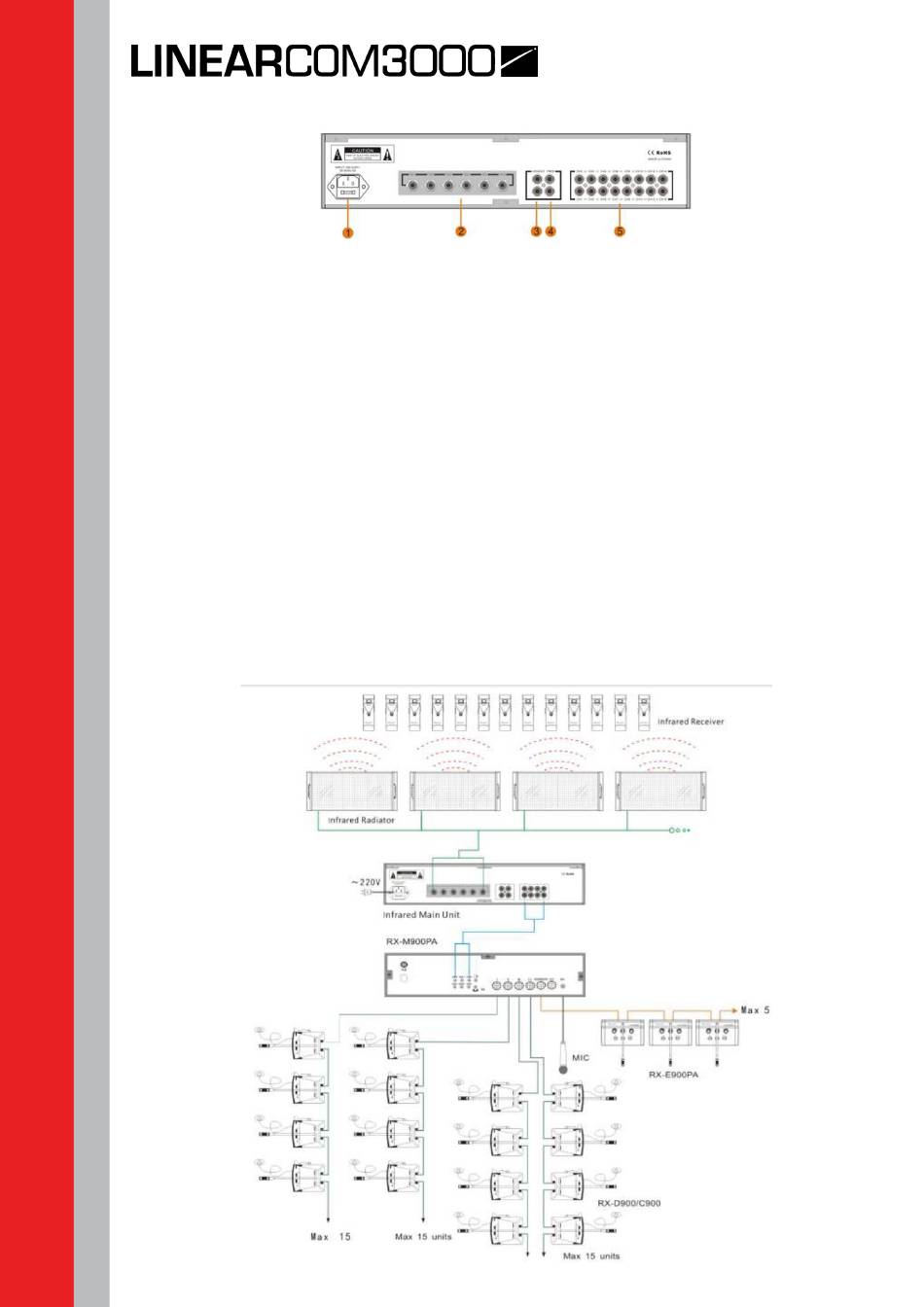

Typical system connection includes :
1) To interpretation conference system
2) To digital conference system
3) To external audio sources
4) To emergency signal input
5) To free mode audio input
To interpretation conference system
Interpretation system controller can be connected via audio input on infrared controller.
11
mode audio output / free mode audio output
4. FREE mode : Free mode audio output
5. MEETING mode : Conference channel
audio selection (CH00---CH15) match with
interpretation main unit channel (4 channels
is CH00-CH03 / 8 channels is CH00-CH07 /
32 channels is CH-00-CH31)
