Description
Demonstration circuit 1889A features the
µModule
regulator, a tiny high performance high
®
efficiency step-down regulator. The LTM4624EY has an
operating input voltage range of 4V to 14V and is able to
provide an output current of up to 4A. The output voltage
is programmable from 0.6V to 5.5V. The LTM4624EY is
a complete DC/DC point-of-load regulator in a thermally
enhanced 6.25mm × 6.25mm × 5.01mm BGA package
requiring only a couple capacitors and a resistor. Output
performance summary
PARAMETER
Input Voltage Range
Output Voltage, V
OUT
Maximum Continuous Output Current
Default Operating Frequency
Efficiency

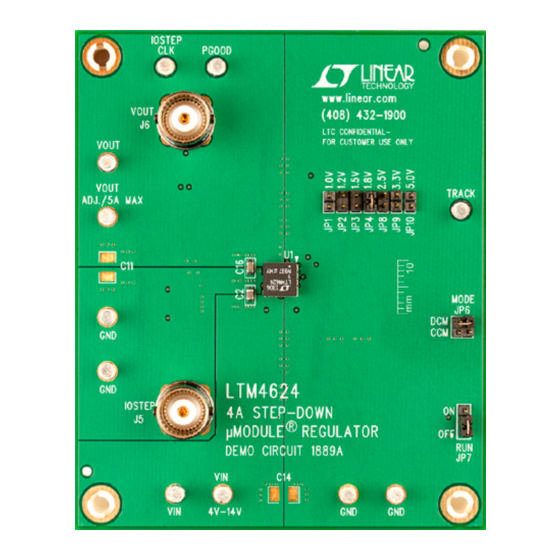

BoarD photo
Arrow.com.
Downloaded from
DEMO MANUAL DC1889A
LTM
4624EY
voltage tracking is available through the TRACK/SS pin for
®
supply rail sequencing. The LTM4624 data sheet must be
read in conjunction with this demo manual prior to working
on or modifying demo circuit 1889A.
Design files for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology, the Linear logo and µModule are registered trademarks of
Linear Technology Corporation. All other trademarks are the property of their respective owners.
Specifications are at T
CONDITIONS/NOTES
Jumper Selectable
Derating is Necessary for Certain operating
Conditions. See Data Sheet for Details
V
= 12V, V
= 1.8V, I
= 4A
IN
OUT
OUT
4A Step-Down µModule
= 25°C
A
VALUE
4V – 14V
1.0V
, 1.2V
, 1.5V
DC
DC
5V
DC
4A DC
1MHz
83.6% See Figure 2
LTM4624EY
Regulator
, 1.8V
, 2.5V
, 3.3V
,
DC
DC
DC
DC
dc1889af
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Linear Technology LTM4624EY
Summary of Contents for Linear Technology LTM4624EY
- Page 1 DC/DC point-of-load regulator in a thermally enhanced 6.25mm × 6.25mm × 5.01mm BGA package L, LT, LTC, LTM, Linear Technology, the Linear logo and µModule are registered trademarks of requiring only a couple capacitors and a resistor. Output Linear Technology Corporation.
-
Page 2: Quick Start Procedure
Demonstration circuit 1889A is an easy way to evaluate the 5. Once the proper output voltage is established, adjust performance of the LTM4624EY. Please refer to Figure 1 the load current within the 0A to 4A range and observe for test setup connections and follow the procedure below. - Page 3 DEMO MANUAL DC1889A Quick start proceDure CCM Efficiency vs Load Current CCM Efficiency vs Load Current 3.3V 3.3V 2.5V 2.5V 1.8V 1.8V 1.5V 1.5V 1.2V 1.2V LOAD CURRENT (A) LOAD CURRENT (A) Figure 2. Measured Supply Efficiency at 12V and 5V 50mV/DIV 10mV/DIV OUT(STEP)
-
Page 4: Parts List
CAP., X5R, 0.1µF, 25V, 10%, 0603 AVX, 06033D104KAT RES., CHIP, 90.9k, 1/16W, 1%, 0603 VISHAY, CRCW060390K9FKEA RES., CHIP, 10Ω, 1/16W, 1%, 0603 VISHAY, CRCW060310R0FKEA I.C., LTM4624EY, BGA LINEAR TECH., LTM4624EY#PBF Additional Demo Board Circuit Components CAP., X5R, 22µF, 25V, 10%, 7343 SANYO, 25TQC22MV C11, C14 CAP., 1210, OPTION... -
Page 5: Schematic Diagram
