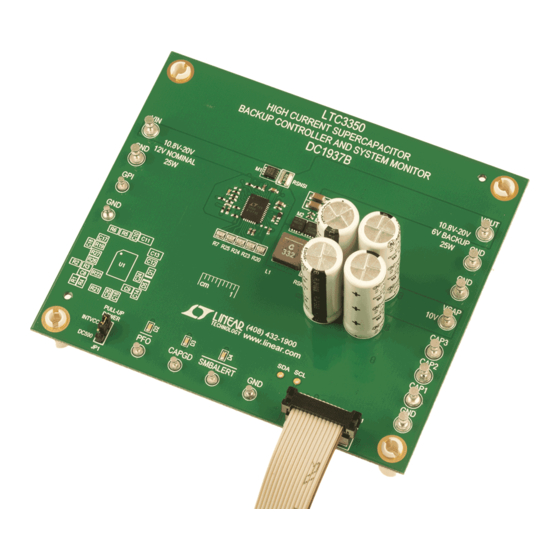

Linear Technology LTC3350 Manual

High current supercapacitor backup controller and system monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

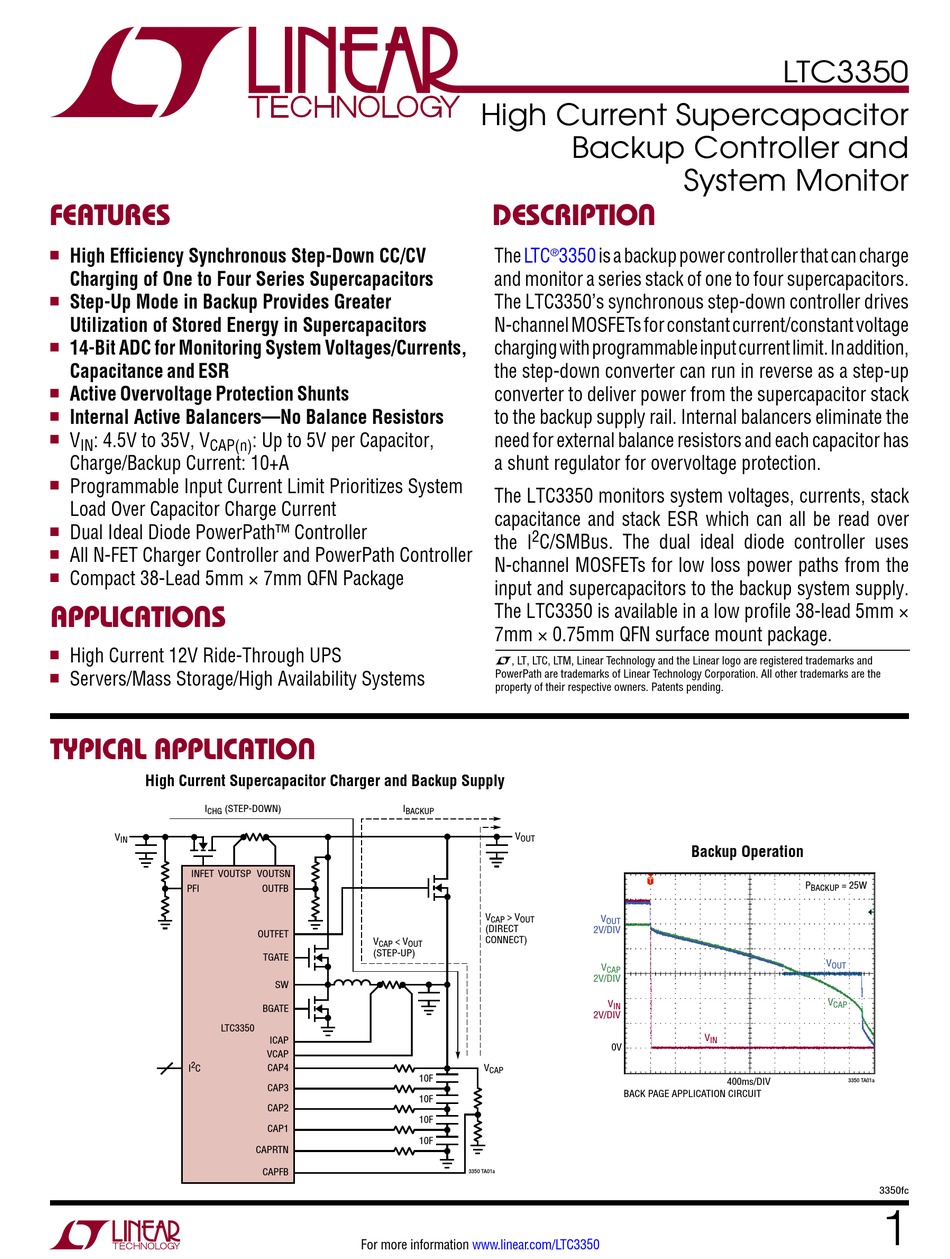

FeaTures

High Efficiency Synchronous Step-Down CC/CV
n
Charging of One to Four Series Supercapacitors
Step-Up Mode in Backup Provides Greater
n
Utilization of Stored Energy in Supercapacitors
14-Bit ADC for Monitoring System Voltages/Currents,
n
Capacitance and ESR
Active Overvoltage Protection Shunts
n
Internal Active Balancers—No Balance Resistors
n
V
: 4.5V to 35V, V
n
IN
CAP(n)
Charge/Backup Current: 10+A
Programmable Input Current Limit Prioritizes System
n
Load Over Capacitor Charge Current
Dual Ideal Diode PowerPath™ Controller
n
All N-FET Charger Controller and PowerPath Controller
n
Compact 38-Lead 5mm × 7mm QFN Package
n

applicaTions

High Current 12V Ride-Through UPS
n
Servers/Mass Storage/High Availability Systems
n

Typical applicaTion

High Current Supercapacitor Charger and Backup Supply
I
(STEP-DOWN)
CHG
V
IN
INFET VOUTSP VOUTSN
PFI
LTC3350
2
I
C
: Up to 5V per Capacitor,
I
BACKUP
OUTFB
OUTFET
V
< V
CAP
OUT
(STEP-UP)
TGATE
SW
BGATE
ICAP
VCAP
CAP4
10F
CAP3
10F
CAP2
10F
CAP1
10F
CAPRTN
CAPFB
For more information
High Current Supercapacitor
Backup Controller and

DescripTion

The
LTC
3350
is a backup power controller that can charge
®
and monitor a series stack of one to four supercapacitors.
The LTC3350's synchronous step-down controller drives
N-channel MOSFETs for constant current/constant voltage
charging with programmable input current limit. In addition,
the step-down converter can run in reverse as a step-up
converter to deliver power from the supercapacitor stack
to the backup supply rail. Internal balancers eliminate the
need for external balance resistors and each capacitor has
a shunt regulator for overvoltage protection.
The LTC3350 monitors system voltages, currents, stack
capacitance and stack ESR which can all be read over
2
the I
C/SMBus. The dual ideal diode controller uses
N-channel MOSFETs for low loss power paths from the
input and supercapacitors to the backup system supply.
The LTC3350 is available in a low profile 38-lead 5mm ×
7mm × 0.75mm QFN surface mount package.
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
PowerPath are trademarks of Linear Technology Corporation. All other trademarks are the
property of their respective owners. Patents pending.
V
OUT
V
> V
V
CAP
OUT
OUT
(DIRECT
2V/DIV
CONNECT)
V
CAP
2V/DIV
V
IN
2V/DIV
0V
V
CAP
BACK PAGE APPLICATION CIRCUIT
3350 TA01a
www.linear.com/LTC3350
LTC3350
System Monitor
Backup Operation
P
= 25W
BACKUP
V
OUT
V
CAP
V
IN
400ms/DIV
3350 TA01a
3350fc
1
