• Many work modes, suitable for different situation.
• Conference mode : Receivers could receive independence channel signal 2U.
• Emergency mode : All receivers could receive exterior alarm signal.
• Free mode : All receivers could receive exterior music signal.
• 2U international standard design could be put in 19 inch rack cabinet.
• Dimension : 432 x 350 x 90 mm.
• Color : Dark, grey.
• Weight : 8 kg.
Technical parameter of digital infrared receiver
Channel
Modulation mode
Carrier frequency
Frequency respond
Distortion
SNR
Working voltage
Input level
Output impedance
Emergency audio input
Free audio input
Digital signal output
LCD display
Dimension
Weight
Color
Installation

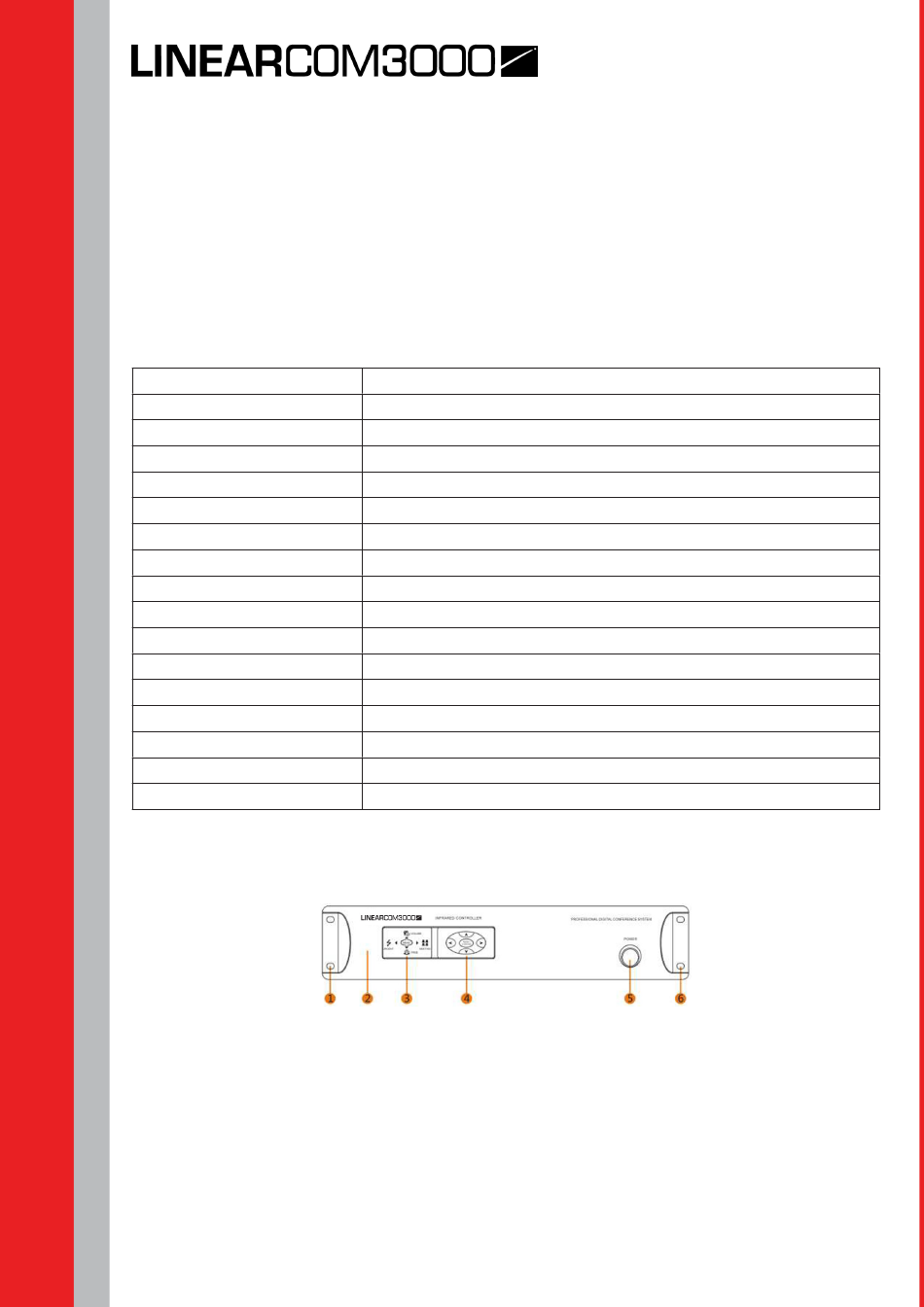

Function and interface instruction of infrared main unit panel
1. Mounting hole of 19 inch rack cabinet
2. Front panel, aluminium alloy
3. LCD display, can adjust lightness and
contrast
10
32 CH
Digital wireless base station
2-8 MHz
30-20000 Hz
<0.2%
>90 dB
AC 110 / 220V
2V p-p
75 Ohm
RCA socket x2
RCA socket x2
BNC socket x6
2.8 inch display
432 x 90 x 350 mm
8 kg
Black, grey
19 inch rack cabinet
4. Five-dimensional operation, control keys
5. Power switch with power indicator light
6. Mounting hole of 19 inch rack cabinet
