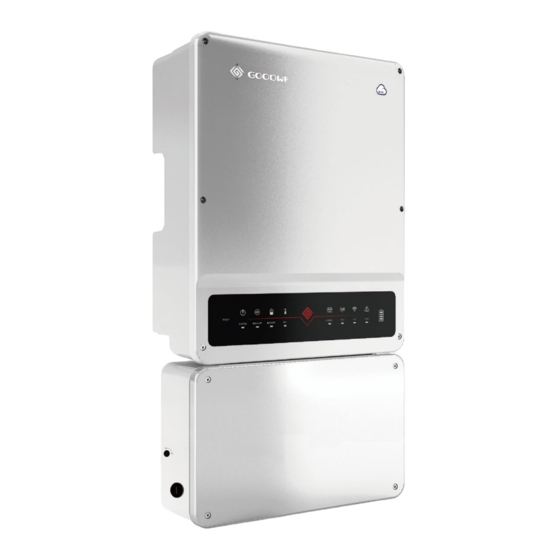

- Page 1 Quick Installation Guide AC-Coupled Inverter A-BP Series GW5000A-BP GW6000A-BP GW7000A-BP GW7600A-BP GW8600A-BP GW9600A-BP V1.1-2022-12-30...
-
Page 2: Safety Precautions
• Strictly follow the installation, operation, and configuration instructions in this guide and user manual. The manufacturer shall not be liable for equipment damage or personal injury if you do not follow the instructions. For more warranty details, please visit https://en.goodwe.com/ warranty. Safety Disclaimer... - Page 3 Product: 1. Do not apply mechanical load to the terminals, otherwise the terminals can be damaged. 2. All labels and warning marks should be visible after the installation. Do not scrawl, damage, or cover any label on the device. 3. Do not touch the running equipment to avoid being hurt as its temperature may exceed 60℃.
- Page 4 LED Explanation Indicator Status Explanation ON = The system is ready. SYSTEM BLINK = The system is starting. OFF =The system is not working. ON = Back-up is ready / power available. BACK-UP OFF = Back-up is off / power not available. ON = The battery is charging.
-
Page 5: Product Introduction
02 Product Introduction Parts WiFi Reset Reload LED Indicators Battery Terminal Auto-transformer Terminal Back-up Terminal On-Grid Terminal Grounding (PE) Busbar Energy Meter CT Terminal Grounding (PE) Busbar WiFi Module... - Page 6 Dimensions 175mm 415mm 6.9in 16.3in 110mm 120mm 4.3in 4.7in 110mm 4.3in 140mm 5.5in A-BP Inverter 345mm 174mm 13.6in 6.9in 110mm 120mm 4.3in 4.7in 110mm 4.3in Auto Transformer...
-
Page 7: Inverter Installation
03 Inverter Installation A-BP Inverter N = Quantity depends on the inverter model. Auto Transformer... - Page 8 Space Requirements NEMA -31°F~140°F (-35°C~60°C) TYPE 4X 0%~95%RH 300mm 500mm 11.81in 19.69in 100mm 100mm 200mm 200mm 3.94in 3.94in 7.87in 7.87in 200mm 300mm 300mm 7.87in 11.81in 300mm 11.81in 11.81in Angle Requirements...
- Page 9 Inverter Installation A-BP Inverter Auto Transformer...
-
Page 10: Electrical Connection
04 Electrical Connection Preparations Before Electrical Connection... - Page 11 Battery Cable 18mm Φ: max 7.4mm (0.71in) (0.29in) 18mm Φ: max 7.4mm (0.71in) (0.29in) 18mm Φ: max 7.4mm (0.71in) (0.29in) 90℃ Copper, 6AWG 2.5~3 N·m...
- Page 12 On-Grid Cable 18mm Φ: max 7.4mm (0.71in) (0.29in) 18mm Φ: max 7.4mm (0.71in) (0.29in) 18mm Φ: max 7.4mm (0.71in) (0.29in) 90℃ Copper, 8-10AWG...
- Page 13 BACKUP Cable N L1 18mm Φ: max 7.4mm (0.71in) (0.29in) 18mm Φ: max 7.4mm (0.71in) (0.29in) 18mm Φ: max 7.4mm (0.71in) (0.29in) L1 L2 90℃ Copper, 8-10AWG...
- Page 14 CT Cable To Grid CT To CT Type One: CAN1 Battery (CAN1 Communication) CAN1...
- Page 15 Type Two: LG Battery (485 Communication) A-BP LG Battery CAN_H LG_EN+ EN GND LG_EN- ENABLE_H 485-1A RS485_H 485-1B RS485_L CAN_L LG_EN+ LG_EN- LG_EN+ LG_EN-...
- Page 16 Communication Module Auto-transformer (Optional) 18mm (0.71in) Φ: max 7.4mm L1/L2 (0.29in) 18mm (0.71in) Φ: max 7.4mm (0.29in) 18mm (0.71in) Φ: max 7.4mm (0.29in) 90℃ Copper, 8-10 AWG 22-24 AWG, 600V insulated 7mm(0.28in) L1 N L2 PE...
- Page 17 Wiring System A-BP Series (Full Backup) Grid Power Meter Meter CT Communication Automatic transfer Switch On-grid Output Breaker Back-up Output Breaker Main Breaker Battery Loads Power ON Turn on Power OFF Auto-transformer Turn off...
- Page 18 BMS Cable 22AWG(20~24AWG),600V insulated BAT+,BAT-,6AWG(6~12AWG) Auto-transformer AC[L1,N,L2],8AWG(8~12AWG) Auto-transformer Temp. sense [T1,T2] 22AWG(20~24AWG),600V insulated Ground Bus-bar AC BACKUP [L1,N,L2],8AWG(8~12AWG) AC Grid [L1,N,L2],8AWG(8~12AWG) Two Meter CTs Neutral Bus-bar...
- Page 19 A-BP Series (Partial Backup) Grid Power Meter Main Breaker Meter CT Communication AC Breaker AC Breaker Loads Back-up Breaker Battery 120V 240V Loads Loads Auto-transformer Power ON Turn on Power OFF Turn off...
- Page 20 BMS Cable 22AWG(20~24AWG),600V insulated BAT+, BAT-, 90℃, 6AWG Auto-transformer AC[L1,N,L2], 90℃, 8-10AWG Auto-transformer Temp. sense [T1,T2] 22AWG(20~22AWG), 600V insulated AC BACKUP [L1,N,L2], 90℃, 8-10AWG Neutral Bus-bar Two Meter CTs AC Grid [L1,N,L2], 90℃, 8-10AWG Ground Bus-bar...
- Page 21 Monitoring via SEMS Portal play SEMS Portal App Store SEMS Portal For more detailed instructions, scan the QR code below to see the user manual. SolarGo SEMS Portal WiFi Quick A-BP Series User Manual Installation Guide User Manual User Manual...
- Page 22 Official Website GoodWe Technologies Co., Ltd. No.90 Zijin Rd., New District, Suzhou, 215011, China www.goodwe.com service@goodwe.com Local Contacts 340-00762-00...
