1.5 Configuration examples for PROFIBUS

1.5

Configuration examples for PROFIBUS

Below, you will find examples of configurations in which the CM 1242-5 is used as a DP slave

and the CM 1243-5 is used as a DP master.

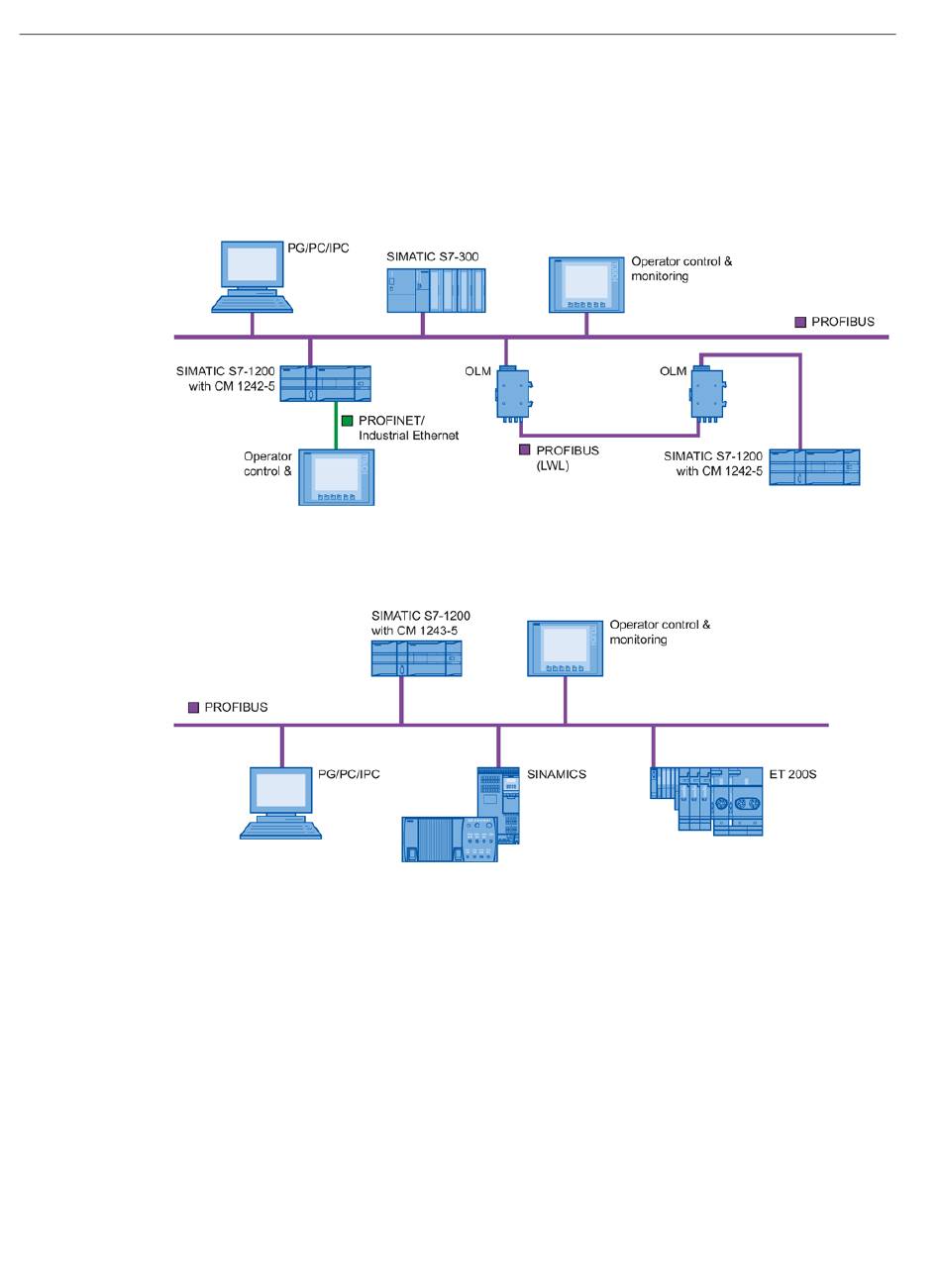

Figure 1-1

Figure 1-2

Configuration example with a CM 1242-5 as PROFIBUS slave

Configuration example with a CM 1243-5 as PROFIBUS master

Operating Instructions, 01/2023, C79000-G8976-C246-06

SIMATIC CM 1243-5
