Summary of Contents for Fieldmann FZR 4615-20LIBES

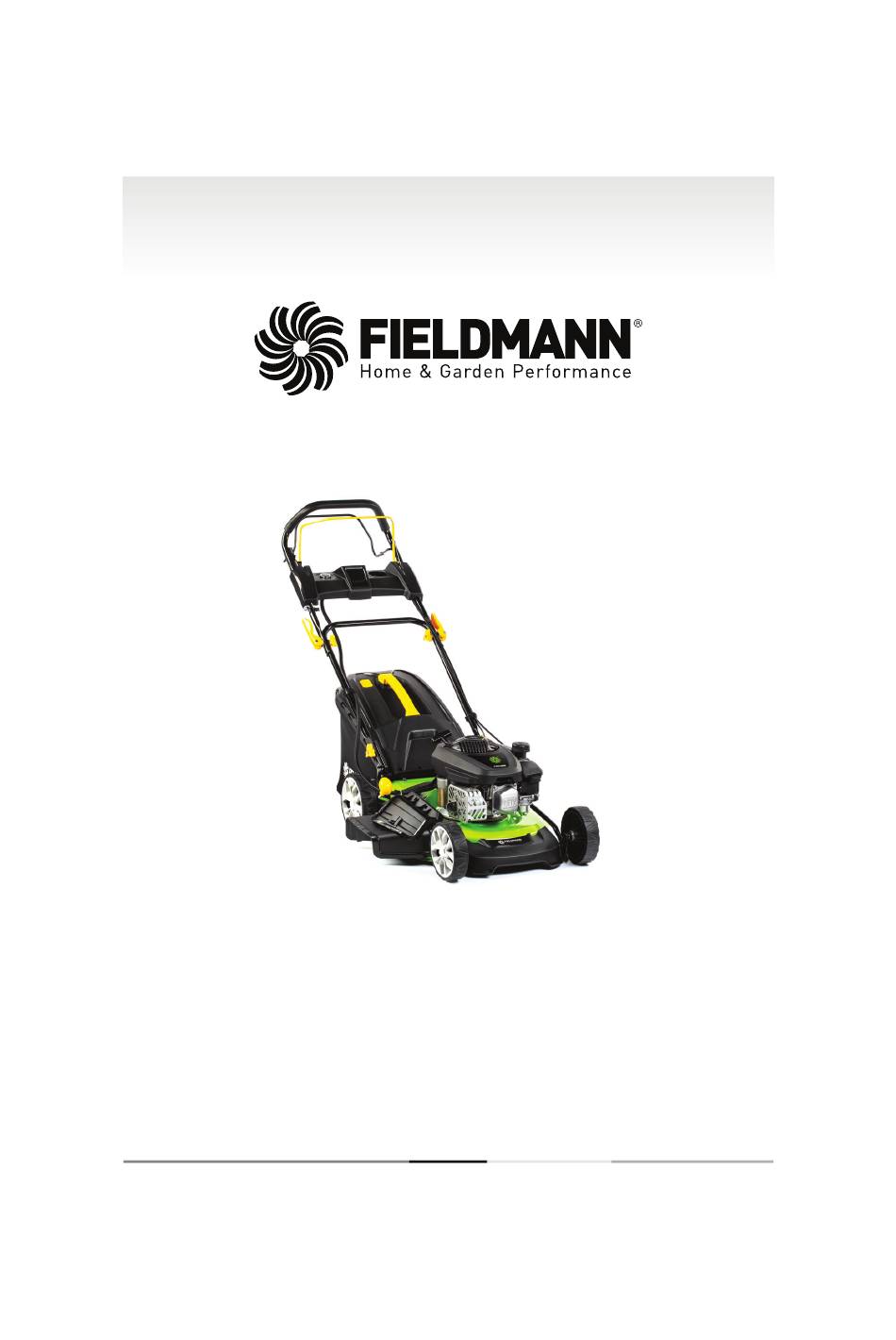

  • Page 1 FZR 4615-20LIBES...
  • Page 2 English ....................................3–20 Čeština ..................................... 21–38 Slovenčina ..................................39–56 Magyarul ..................................57–74 Polski ....................................75–92 FZR 4615-20LiBES...

  • Page 3: Table Of Contents

    Table of Contents Petrol Lawnmower INSTRUCTIONS FOR USE Thank you for purchasing this rotary petrol lawnmower. Before you start using it, please, carefully read this user's manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY REGULATIONS ..........................4 2.

  • Page 4: General Safety Regulations

    User manual. The user’s manual also contains operating, maintenance, and repair instructions. The manufacturer assumes no responsibility for accidents or damages arising from failure to comply with these instructions. FZR 4615-20LiBES...

  • Page 5: Explanation Of Instruction Labels On The Machine

    Explanation of instruction labels on the machine 2. EXPLANATION OF THE INSTRUCTION LABELS ON THE MACHINE Before putting into operation, please carefully read the user's manual. Keep other persons away from the work area. Attention, rotating blades! Protect yourself against the danger of injury to limbs.
  • Page 6 Always maintain a distance from moving parts. Travel along the slope on contours, not up and down. Conforms to all relevant European directives. Petrol is extremely flammable and therefore allow the engine to cool down for 2 minutes before adding more fuel. FZR 4615-20LiBES...

  • Page 7: Description Of The Lawnmower (Fig. 1)

    Description of the lawnmower | Assembly/Preparation 3. DESCRIPTION OF THE LAWNMOWER (Fig. 1) Fig. 1 9 10 1. Drive lever (clutch lever) 8. Starter handle 2. Brake lever /stop lever 9. Fuel tank cap 3. Start butt 10. Air filter 4.

  • Page 8: Assembly

    NOTE: Make sure the rope guide is on the right handle, when you stand behind the mower. Fig. 4 TIDY THE CONNECTION CORD Fig. 5 As shown in Fig. 5. Fix the connection cord to the handle. With the cord clip (supplied). Clip FZR 4615-20LiBES...
  • Page 9 Assembly ASSEMBLING THE GRASS BOX FIG6 Grass box cover Fig. 6 Fasten the upper cover and the lower cover together. NOTE: make sure that each buckle is fully buckled. Koš ASSEMBLING THE GRASS BOX ONTO THE MOWER As shown in Fig. 7 Fig.
  • Page 10 WARNING: Refuel in a well-ventilated area with the engine stopped. Do not smoke or allow flame or sparks in the area where the engine is refueled or where petrol is stored. Avoid repeated or prolonged contact with skin or inhalation of vapour. FZR 4615-20LiBES...

  • Page 11: Adjustment

    Assembly | Adjustment | Operation 1. Clean the area around the petrol filler cap before removing the Fuel filler neck cap. Remove the warning tag, check the fuel level. 2. Refill the tank if the fuel level is low. Fig. 12 3.
  • Page 12 NOTE: Install the spark plug carefully by hand, to avoid cross-threading. After the plug is seated tighten 1/8 to 1/4 turn with socket spanner of spark plug to compress the washer. 3. Pull the engine start/stop lever toward upper handle. 4. Operate the starter as described above. FZR 4615-20LiBES...
  • Page 13 Operation USING THE SELF-PROPELLED FUNCTION Fig. 18 As shown in Fig. 18 This unit equipped with self-propelled system . If you press the drive lever(clutch lever) , the clutch for the drive will be closed and the lawnmower will start to move with the engine running .

  • Page 14: Storing And Maintenance

    4. Install the air filter assembly onto the carburetor and secure with screw. NOTE: Do not use pressurized air or solvents to clean the filter. Pressurized air can damage the filter and solvents will dissolve the filter. FZR 4615-20LiBES...
  • Page 15 Storing and maintenance Fig. 21 Fig. 20 Fig. 22 CHANGING THE ENGINE OIL Tilt the lawnmower towards the oil filler , have a container ready to catch the oil and remove the dipstick . once the oil has been emptied , replace the dipstick and wipe clean any spillages. Refill with 400ml SAE30 oil or equivalent i.
  • Page 16 Performing routine maintenance correctly on your lawnmower will ensure you get years of trouble free use. Please keep this manual safe for future reference. It is recommended that the following maintenance schedule is adhered to. This will ensure the lawn-mower operated correctly and is safe to use. FZR 4615-20LiBES...

  • Page 17: Technical Specifications

    Storing and maintenance | Technical specifications 12hours of use 24hours of use 36hours of use Air filter clean Clean replace Spark plug check clean replace Engine oil Check Replace check The Engine oil should be changed after the fist 5 hours. TRANSPORT Empty the petrol tank Always let the engine run until it has used up the remainder of petrol in the tank.

  • Page 18: Disposal

    This product meets all the basic requirements of the applicable EU directives. Changes in the text, design and technical specifications may be made without prior notice and we reserve the right to make such changes. User manual in the original language. FZR 4615-20LiBES...

  • Page 19: Declaration Of Conformity

    EU DECLARATION OF CONFORMITY Product / brand: Gasoline Powered Lawn Mower / FIELDMANN Type / model: FZR 4615-20LiBES as factory model DM46ESC-D150 Engine 150cm ; 2,6kW; speed 2800 rpm; cutting width 460 mm = 84,5 dB(A); L = 96 dB(A)
  • Page 20 FZR 4615-20LiBES...
  • Page 21 FZR 4615-20LiBES...
  • Page 24 Jótállási jegy A termék gyártója: FAST ČR, a.s. (U Sanitasu elállásnak nincs helye. A fogyasztó a választott A 151/2003. (IX.22.) Korm.rendeletben meg- 1621, Říčany u Prahy 251 01, Csehország) jogáról másikra térhet át. Az áttéréssel okozott határozott tartós fogyasztási cikk meghibáso- A FAST Hungary Kft.
  • Page 25 A kereskedő tölti ki Megnevezés:................................Típus:................ Gyártási szám: ……………………………………………. A termék azonosításra alkalmas részeinek meghatározása (ha alkalmazható):…………………………………… Vásárlást igazoló bizonylat száma:………………………………………………………………………………. A vásárlás (üzembe helyezés) időpontja: 20......hó.....nap. Kereskedő bélyegzője: Kereskedő aláírása: ………………………………… Kereskedő címe: ……………………………………………… Javítás esetén alkalmazandó A kereskedő vagy szerviznél történő közvetlen bejelentés esetén a szerviz tölti ki A jótállási igény bejelentésének időpontja: ……………………………………………………………………….
