Summary of Contents for Fieldmann FZR 4010-B
-
Page 1: Illustrated Attachment
FZR 4010-B... - Page 2 English ........................................5 - 20 Čeština........................................21 - 36 Slovenčina ......................................37 - 52 Magyarul ......................................53 - 68 Polski .........................................69 - 84 FZR 4010-B...

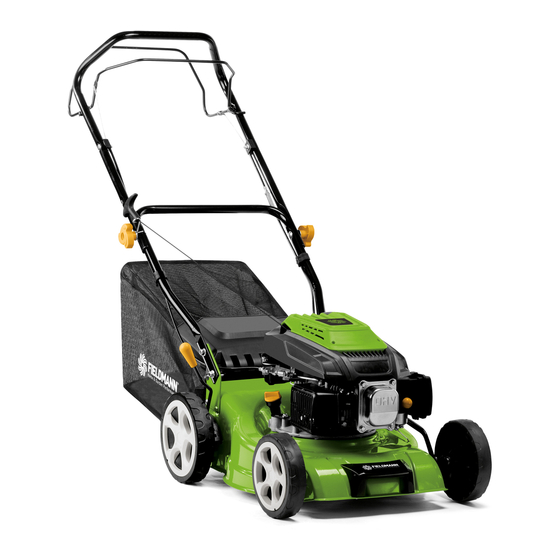

- Page 3 PETROL LAWNMOWER USER'S MANUAL...
- Page 4 FZR 4010-B...
-
Page 5: Table Of Contents
Contents Petrol Lawnmower USER'S MANUAL Thank you for purchasing this rotary petrol lawnmower. Before you start using it, please, carefully read this user's manual and save it for possible future use. CONTENTS ILLUSTRATED ATTACHMENT .............................1 1. GENERAL SAFETY INSTRUCTIONS .........................6 Important safety notice Packaging Operating instructions... -
Page 6: General Safety Instructions
The user's manual also contains operating, maintenance and repair instructions. The manufacturer takes no responsibility for accidents or damages resulting from not following the instructions in this manual. FZR 4010-B... -
Page 7: Explanation Of Instruction Labels On The Machine
Explanation of instruction labels on the machine 2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE Before putting into operation, please carefully read the user's manual. Keep other persons away from the work area. Attention, rotating blades! Protect yourself against the danger of injury to limbs. Emission of toxic gasses. - Page 8 Always maintain a distance from moving parts. Travel along the slope on contours, not up and down. Conforms to all relevant European directives. Petrol is extremely fl ammable and therefore allow the engine to cool down for 2 minutes before adding more fuel. FZR 4010-B...
-
Page 9: Description Of The Machine
Description of the machine | Assembly instructions | Operation 3. DESCRIPTION OF THE MACHINE 1. Switch / brake lever 2. Travel lever 3. Top part of the handle 4. Quick coupling screw 5. Bottom part of the handle 6. Grass catcher 7. -
Page 10: Starting The Engine
5.4 If the engine does not start up after 1 - 2 pulls of the cord, press the fuel primer bulb once or twice and attempt to start it again. Note: If you are unsuccessful starting the engine, contact an authorised service centre. Turn off the engine. Release the brake control lever. FZR 4010-B... -
Page 11: General Mowing Tips
Operation 6. Mowing with travel (applies only to lawnmowers equipped with travel) If you wish to take advantage of the independent travel feature when mowing, press the travel control lever 1 (bottom lever) against the handle and hold it (fi gure 12). If you do not wish to use the travel feature, simply release the travel control lever. -
Page 12: Recommended Maintenance Plan
Replace the air fi lter once per year. If you operate the lawnmower in dusty conditions, replace the fi lter more frequently. 1. See chapter Preparing for maintenance. 2. Take off the air fi lter cover. 3. Replace the air fi lter. 4. Reattach the lawnmower cover. FZR 4010-B... -
Page 13: Changing The Motor Oil
Operation Changing the motor oil Before changing the oil, allow the engine to run for a while to heat up the oil. Warm oil is easier to drain and also binds more impurities to itself. 1. See chapter Preparing for maintenance. 2. -
Page 14: Safety Instructions
In the event of damage, take the lawnmower to a specialised service centre for repairs. ATTENTION: The mowing blade continues to rotate for several seconds after the engine is turned off. FZR 4010-B... -
Page 15: Maintenance
Safety instructions | Maintenance if the lawnmower is vibrating abnormally (immediately identify and remedy the cause of the vibration). For the purpose of ensuring safe operation, regularly check that the pins, bolts and nuts on the lawnmower are securely tightened. ATTENTION: FUEL IS A VERY FLAMMABLE LIQUID. -
Page 16: Warranty Does Not Cover
Mechanical damage resulting from the machine being dropped, impact, etc. Damages resulting from unprofessional handling, overloading, use of incorrect parts, inappropriate tools, etc. On returned products that were not properly protected against mechanical damage during transport, the risk of potential damage is borne exclusively by the owner. FZR 4010-B... -
Page 17: Storage
Maintenance | Technical specifi cations Storage If you will not be using the machine for an extended period of time, store it according to the following instructions. This will extend the lifetime of the machine. Fully drain fuel from the fuel tank and the carburettor. Close the choke and 3 to 5 times pull on the cord. Screw out the spark plug and pour a small amount of motor oil into the socket. -
Page 18: Declaration Of Conformity
We Fast ČR, a.s., Černokostelecká 251 01 Říčany u Prahy, tel.:323204111, hereby declare, that the Fieldmann FZR 4010 B Petrol Lawnmower (year of manufacture is indicated on the rating label and is followed by the serial number of the machine, meets the directives COUNCIL DIRECTIVE: 2006/42/EC –... -
Page 19: Disposal
Disposal 10. DISPOSAL INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Take the packaging material to a designated municipal waste facility. The machine and its accessories are manufactured from various materials, e.g. metal and plastic. Take damaged parts to a recycling centre. Inquire at the relevant government department. This product meets all the basic requirements of EU directives that apply to it. - Page 20 Notes FZR 4010-B...
