Summary of Contents for Fieldmann FZR 1015

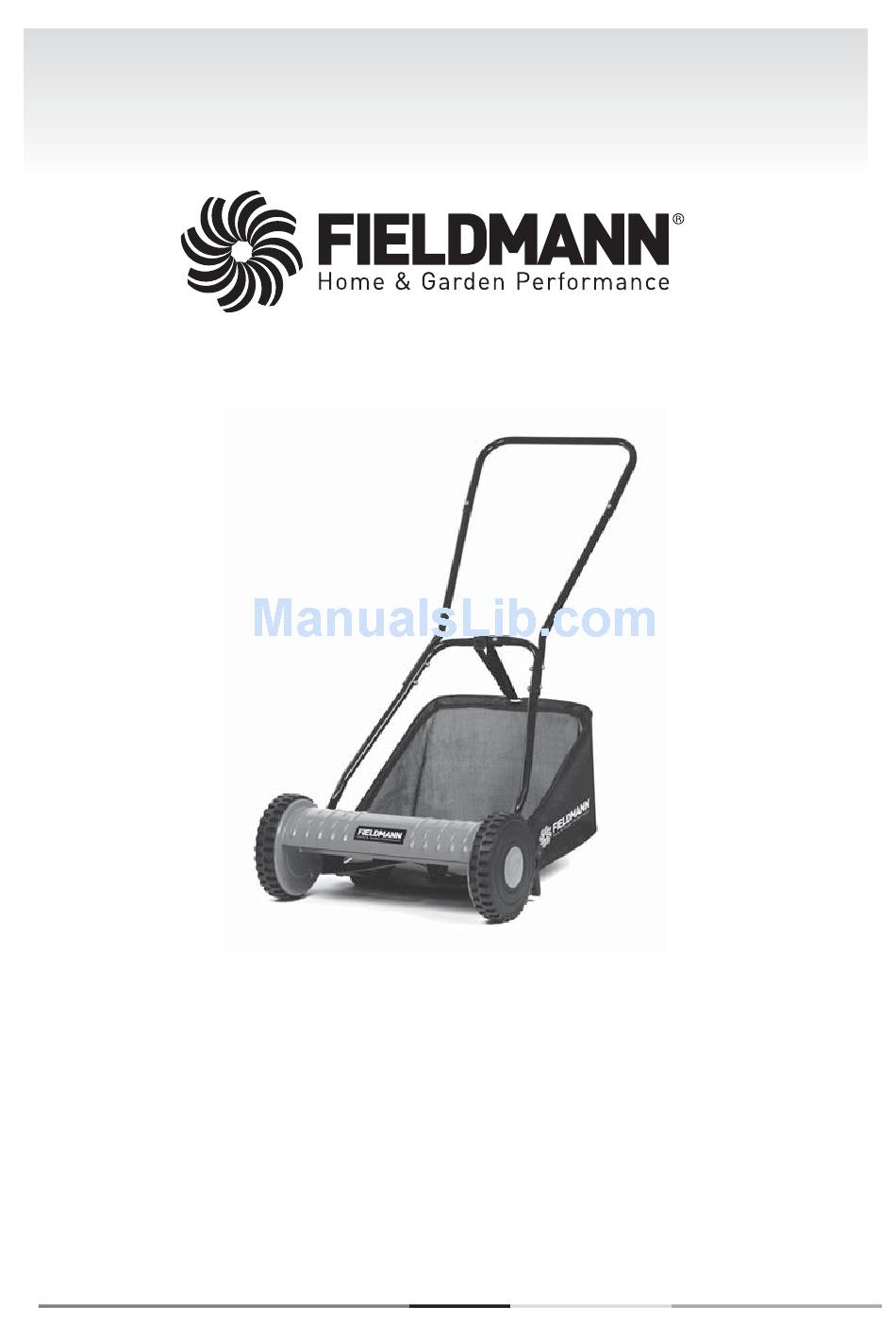

- Page 1 FZR 1015...
-
Page 2: Table Of Contents
Table of Contents Push Reel Mower USER'S MANUAL Thank you for purchasing this push reel mower. Before you start using it, please, carefully read this user's manual and save it for possible future use. TABLE OF CONTENTS 1. GENERAL SAFETY INSTRUCTIONS .........................4 Important safety notice ............................4 Instructions for use ..............................4 2. -
Page 3: General Safety Instructions
Caution! Read all the safety directives and all instructions. If you do not adhere to the provided safety directives and instructions an accident or serious injury may result. Store all safety directives and instructions for future reference. FZR 1015... -
Page 4: Explanation Of Instruction Labels On The Machine
Explanation of instruction labels on the machine | Description 2. EXPLANATION OF INSTRUCTION LABELS ON THE MACHINE Before putting into operation, please carefully read the user's manual. Attention, rotating blades! Protect yourself against the danger of injury to limbs. Always maintain a distance from moving parts. Use hearing protection. -
Page 5: Supplied Parts
Please keep in mind that the product was not designed for use in commercial, business or industrial sectors. If this mower is used in the commercial, business or industrial sectors or equivalent applications, the validity of our warranty will become void. FZR 1015... -
Page 6: Assembly
Assembly 6. ASSEMBLY ASSEMBLING THE LAWNMOWER Using the included M6x30 bolts (14) and M6 nuts (15), connect the top part of the handle (10) to the middle parts of the handle (11). Using the included M6x30 bolts (14) and M6 nuts (15), connect the bottom part of handle A to the bottom part of handle B, and then connect them to the middle parts of the handle (11). -
Page 7: Setting The Mowing Height
Store the mower in a dry location to which children will not have access. Check that all fastening elements (bolts, nuts, etc.) are fi rmly tightened so that the mower can always be operated safely. Immediately replace damaged or excessively worn out parts. FZR 1015... -
Page 8: 10. Packaging
Packaging | Disposal All parts with threads as well as wheels and shafts must be regularly cleaned and lubricated to ensure many years of service from your mower. Maintaining your mower in good operating condition will not only ensure its long operational lifetime and high performance, but will also enable you to mow your lawn with minimal effort. - Page 9 FZR 1015...
