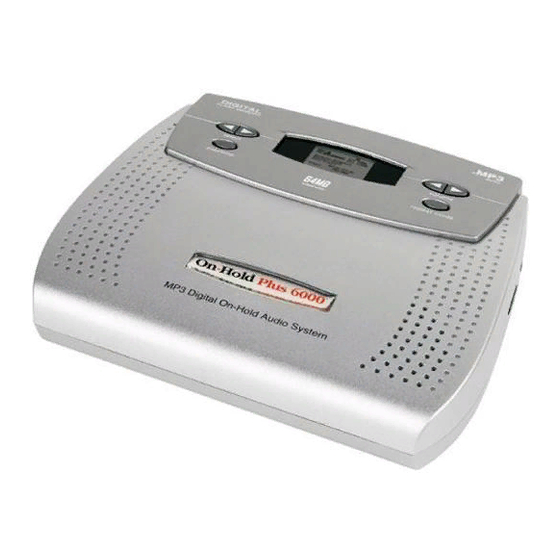

On-Hold Plus OHP-6000 User Manual

On-Hold Plus OHP-6000 User Manual

Digital mp3/wma on-hold audio system
Hide thumbs Also See for OHP-6000:

Advertisement

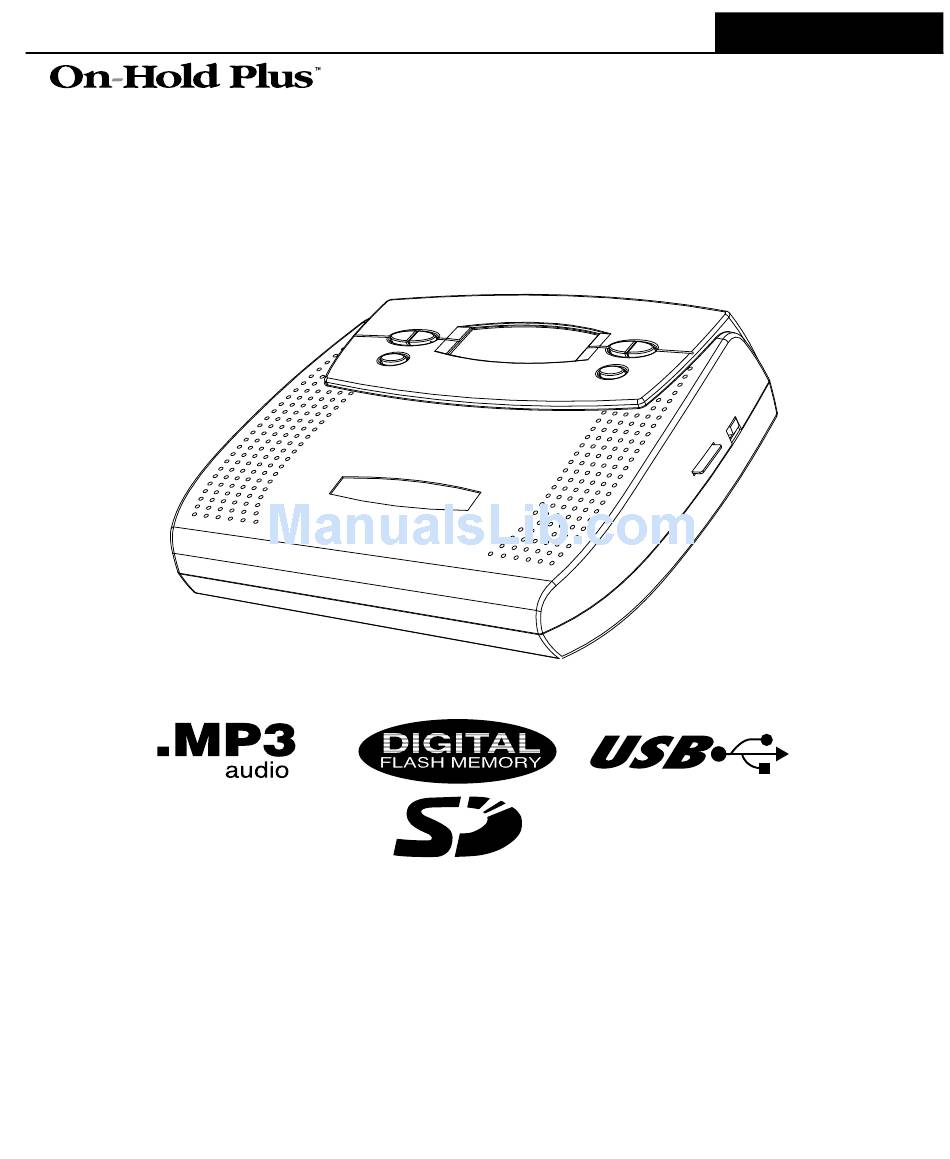

OHP 6000
User Manual
On-Hold Plus 6000
Digital MP3/WMA On-Hold Audio System
Before using this unit, please read these operating instructions carefully.
Afterwards, keep them handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OHP-6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for On-Hold Plus OHP-6000

  • Page 1 OHP 6000 User Manual On-Hold Plus 6000 Digital MP3/WMA On-Hold Audio System Before using this unit, please read these operating instructions carefully. Afterwards, keep them handy for future reference.
  • Page 2: Supplied Accessories

    OHP 6000 User Manual Supplied Accessories USB Cable Connector Cable A (Phono /RCA plugs) OHP 6000 Series Features Connector Cable B (3.5mm mini to RCA) MP3/WMA file playback - Plays ordinary MP3 and WMA files. USB connectivity - Update content by connecting the 6000 to a PC and transferring MP3 or WMA files to its on-board flash memory.
  • Page 3 Set-up Connection to PBX or KEY phone systems Plug AC adapter into wall outlet. Plug AC adapter cable into jack marked "DC9V". Plug "Connector Cable*" to "AUDIO OUT" jack. Plug other end of "Connector Cable" into phone system's music-on-hold (MOH) input jack. NOTE: If the jack cannot be located, contact your phone vendor for assistance.
  • Page 4: Installing Drivers

    OHP 6000 User Manual Set-up Connection to PC Player USB cable IMPORTANT: Before connecting the USB cable from the PC to the unit, please make sure the power switch on the player is in the OFF position. Plug USB cable (square socket) into the USB jack on the back panel of the player.
  • Page 5: Controls And Functions

    "play" (arrow) or "stop" (square) VOLUME LEVEL bar graph displays relative volume level ID3 TAG displays name of track and other identifying information Acoustic Elegance On-Hold Plus 02:36/07:45 select Song: 02/008 play/stop REPEAT MODE displays continuous playback mode selected (repeat all,...
  • Page 6: Operation

    OHP 6000 User Manual Operation Playback Playing Audio Stored in Memory By default, the unit is always in "playback" mode. When unit is playing, the LCD will display a running time. Playback After Power Loss If power to the unit is lost, the unit will resume playback as soon as power is reapplied.
  • Page 7: Usb Connection

    Operation (cont'd) USB Connection Turn the POWER switch on the back of player to the OFF position. Plug the USB cable into the USB port on the back of your player Plug the other end of the cable into the USB port on your computer. Turn the POWER switch to the ON position (LCD will show an icon of a computer and a memory card with the word "READY.") Locate and select any MP3 or WMA audio file(s) or file(s) created and...
  • Page 9: Fcc Information

    Toll-free customer support is available from 8AM to 5PM (PST) Monday thru Friday by calling 800-839-7277 On-Hold Plus and MessageStudio are registered trademarks of IntelliTouch Communications. © IntelliTouch Communications. All rights reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of IntelliTouch Communications.
