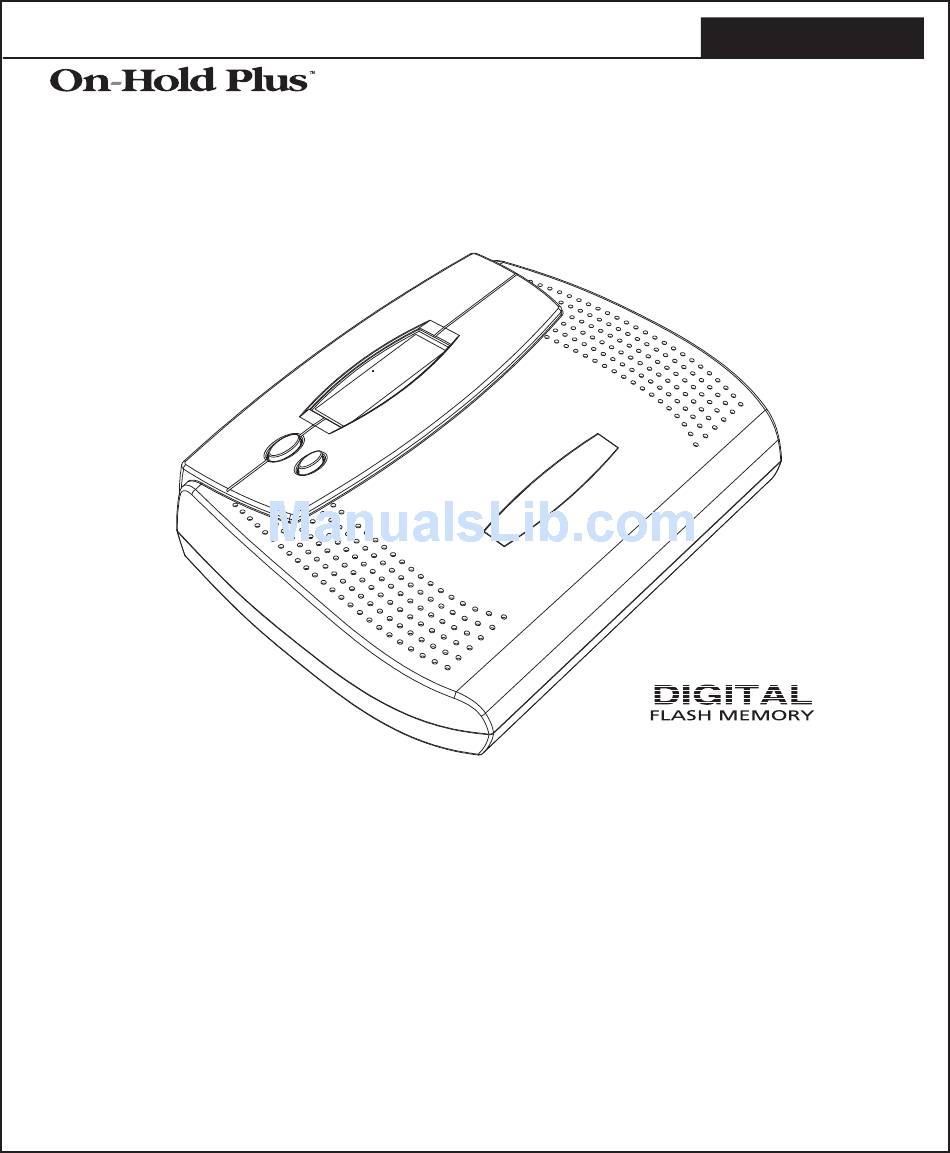

- Page 1 OHP 4000 User Manual On-Hold Plus 4000 Digital On-Hold Audio System Before using this unit, please read these operating instructions carefully. Afterwards, keep them handy for future reference.
-
Page 2: Supplied Accessories
Message production software for On-Hold Plus digital player/recorders © On-Hold Plus, Inc., All rights reserved. MessageStudio is a trademark of On-Hold Plus, Inc. All other brand or product names are trademarks or registered trademarks of their respective holders. Unauthorized duplication or distribution is prohibited. - Page 3 OHP 4000 User Manual Set-up Connection to PBX or KEY phone systems Plug AC adapter into wall outlet. Plug AC adapter cable into jack marked "DC12V". Plug "Connector Cable A" to "AUDIO OUT" jack. Plug other end of "Connector Cable A" into phone system's music-on- hold (moh) input jack.
- Page 4 OHP 4000 Series User Manual Set-up Connection to External Source for Recording Plug "Connector Cable B" into "speaker out" or "audio out" jack of your computer's sound card or connect to the "headphone" jack of your PC's speakers (if available). NOTE: If using CD or tape player for recording audio content,, connect to the headphone jackof the tape or CD player.
-
Page 5: Controls And Functions
OHP 4000 Series User Manual Controls & Functions Player Controls & LCD Display RECORD Record Mode Indicator Playback Indicator used to initiate manual displayed when audio is displayed when unit recording function is playing being recorded to memory SPEAKER turns speaker on/off SPEAKER IMPEDANCE allows selection between 8... -
Page 6: Operation
OHP 4000 User Manual Operation Playback Playing Audio Stored in Memory By default, the unit is always in "playback" mode. When unit is playing, the LCD will display a running time and the segments on the speaker icon will move. Playback After Power Loss If power to the unit is lost, the unit will resume playback as soon as power is reapplied. -
Page 7: Manual Recording
OHP 4000 User Manual Operation (cont'd) Settings Manual Recording 1. Insert 3.5 mm mini plug into the jack marked "AUDIO IN". 2. Press the "REC" button to begin recording. 3. Begin playback of your external source. 4. When finished, press "REC" button again to stop recording. OPERATION -- Once "REC"... -
Page 8: Other Functions
OHP 4000 User Manual Other Functions Adding Additional Memory Remote Trigger Location -- rear panel Connection -- 2.5 mm mini jack Operation -- By connecting a momentary switch to this jack, the unit will play audio content from memory when triggered. Content will play through once and then reset, ready for next trigger sequence. -
Page 9: Player Software
Message production software for On-Hold Plus digital player/recorders © On-Hold Plus, Inc., All rights reserved. MessageStudio is a trademark of On-Hold Plus, Inc. All other brand or product names are trademarks or registered trademarks of their respective holders. Unauthorized duplication or distribution is prohibited. - Page 10 Using the MessageStudio Player, you will add these professionally voiced message files to the program for playback with your choice of background music. To submit your production to On-Hold Plus for professional production, just follow the step-by-step instructions in the MessageStudio Writer software.
-
Page 11: Limited Warranty
• Pack the unit in a well-padded, heavy, corrugated box. • Enclose proof of purchase. • Enclose your check or money order payable to On-Hold Plus in the amount of $10.00 to cover shipping and handling costs. • Ship the unit prepaid via UPS or parcel post (insured). -
Page 12: Fcc Information
Toll-free customer support is available from 8AM to 5PM (PST) Monday thru Friday by calling 800-839-7277 On-Hold Plus and MessageStudio are registered trademarks of IntelliTouch Communications. © IntelliTouch Communications. All rights reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of IntelliTouch Communications.
