On-Hold Plus OHP-5500 User Manual

On-hold audio player/recorder cd autoload system with analog line capability
Hide thumbs Also See for OHP-5500:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Troubleshooting Manual

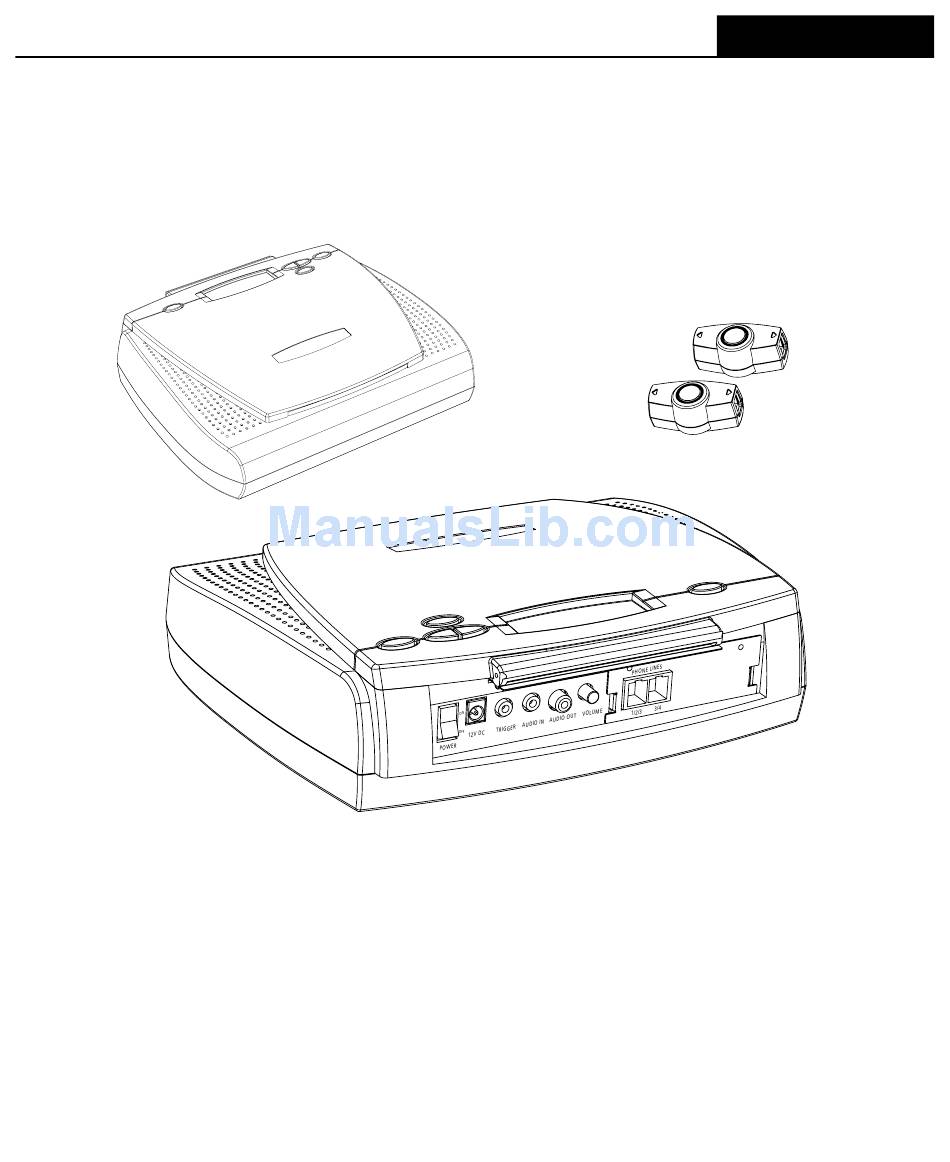

OHP 5500

User Manual

DIGITAL
FLASH MEMORY
On-Hold Plus 5500
On-Hold Audio Player/Recorder
CD Autoload System with
analog line capability
Before using this unit, please read these operating instructions carefully.
Afterwards, keep them handy for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OHP-5500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for On-Hold Plus OHP-5500

Summary of Contents for On-Hold Plus OHP-5500

  • Page 1: User Manual

    OHP 5500 User Manual DIGITAL FLASH MEMORY On-Hold Plus 5500 On-Hold Audio Player/Recorder CD Autoload System with analog line capability Before using this unit, please read these operating instructions carefully. Afterwards, keep them handy for future reference.

  • Page 2: Supplied Accessories

    OHP 5500 User Manual Supplied Accessories 4" handset cords 6' Phone Line Cords OHP 5500 Features Digital flash memory - design retains music/message content even during power loss...unit ships with preloaded audio. Integrated CD mechanism - quickly and easily record high quality audio.

  • Page 3: Player Set-Up

    Player Set-up Connection to analog phone lines step Lines 1 & 2 are combined in one wall jack and lines 3 & 4 are combined in another wall jack Plug the supplied "T adapter" into any modular phone jack which services line 1 and 2. (This will allow you to share the phone jack with any phone extension which you have plugged in to the wall jack.) Plug the provided phone cord into the jack marked "Line 1/2/3"...
  • Page 4 OHP 5500 User Manual Corded Phone Set-up Telephone Extension Hold Music Activators (TEHMA) For true "hold button activation" of on-hold audio, each phone extension requires a "hold music activator". Two activators have been included in your package. If you require additional activators for other phones, contact your reseller or visit www.onholdplus.com to purchase them on-line.
  • Page 5 Cordless Phone Set-up Telephone Extension Hold Music Activators (TEHMA) For true "hold button activation" of on-hold audio, each cordless phone requires the use of a telephone headset (not included) in conjunction with a "hold music activator". Two hold music activators and headset adapter cables have been included in your package.

  • Page 6: Controls And Functions

    OHP 5500 User Manual Controls & Functions Track Number displays CD track number during programming used to initiate recording from multi-track CD LCD Display Record Mode Indicator displayed when audio is being recorded to memory Track Select Indicator Track Indicator displayed when a track displays CD track length is selected for recording...

  • Page 7: Operation

    OHP 5500 User Manual Operation Playback Playing Audio Stored in Memory By default, the unit is always in "playback" mode. When unit is playing, the LCD will display a running time and the segments on the speaker icon will move. Playback After Power Loss If power to the unit is lost, the unit will resume playback as soon as power is reapplied.

  • Page 8: Volume Control

    OHP 5500 User Manual Operation (cont'd) External Recording 1. Insert 3.5 mini plug into the jack marked AUX IN. 2. Press the REC button to begin recording. 3. Begin playback of your external source. 4. When finished, press REC button again to stop recording. OPERATION -- Once REC button is pressed, the unit will begin recording the content of external source audio into the unit's digital memory.
  • Page 9 HoldTracks Audio CD Restoring or Updating Player's Original Audio Content Included with your OHP 5500 unit is a multi-track audio CD with a choice of eight different styles. By using this audio CD you can change or restore the original audio that came prerecorded with the unit.

  • Page 10: Limited Warranty

    OHP 5500 User Manual Warranty Limited Warranty Intellitouch warrants this product to be free from manufacturing defects in material and workmanship under normal use and conditions for a period of 3 years from date of original purchase in the United States. Should service be necessary under this warranty for any reason due to manufacturing defect during this 3-year period from date of original purchase, Intellitouch will either repair the unit or replace it with a reconditioned unit at no charge.

  • Page 11: Fcc Information

    NO ADDITIONAL ROYALTIES ARE DUE TO ON-HOLD PLUS OR ANY OTHER THIRD-PARTY MUSIC LICENSING AGENCY. For complete copy of the licensing agreement go to www.intellitouch.com/music_license.html...
  • Page 12 800-839-7277 www.intellitouch.com On-Hold Plus and MessageStudio are registered trademarks of IntelliTouch Communications. © IntelliTouch Communications. All rights reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of IntelliTouch Communications.
