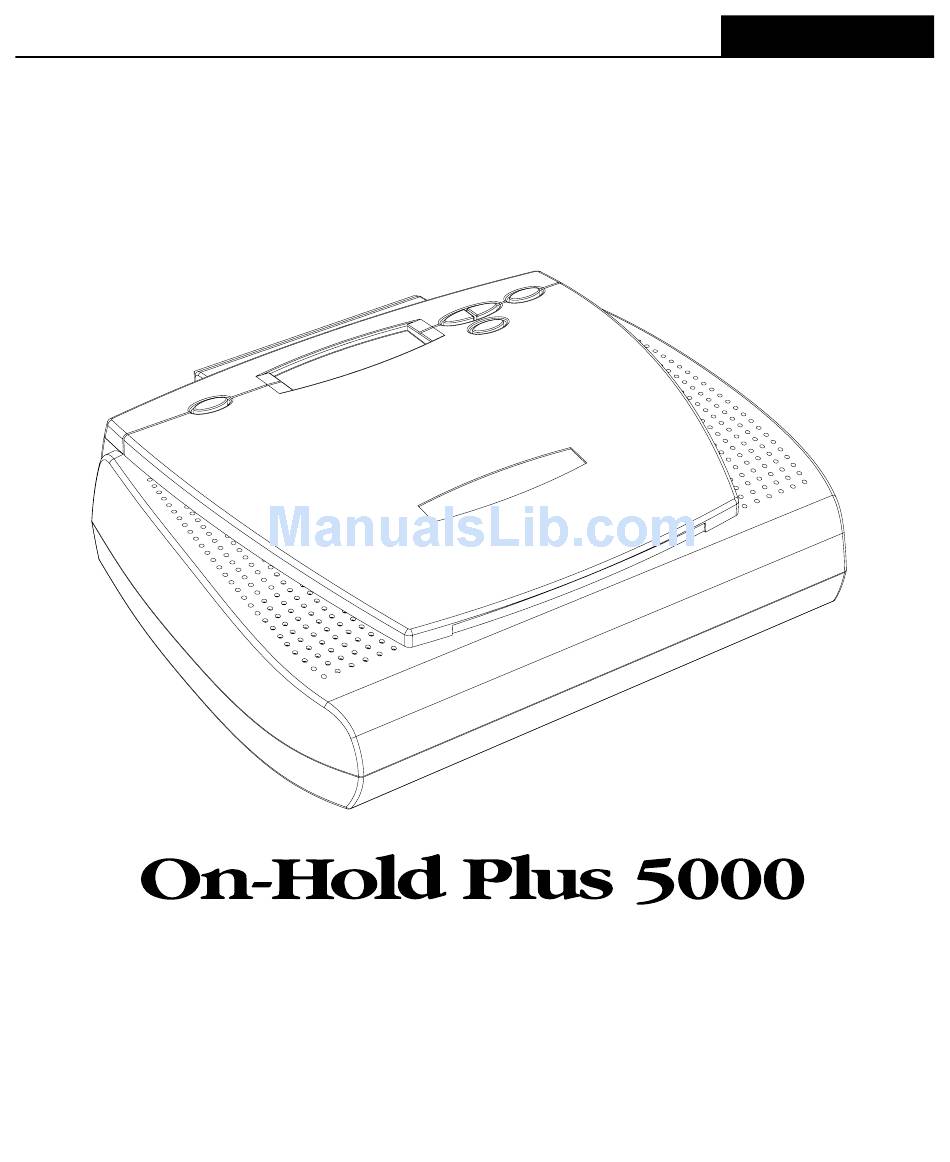

Page 1: User Manual

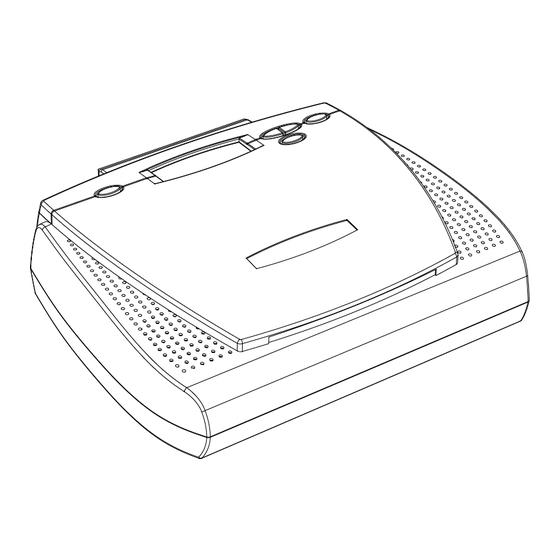

OHP 5000 User Manual DIGITAL FLASH MEMORY On-Hold Audio Player/Recorder CD Autoload System Before using this unit, please read these operating instructions carefully. Afterwards, keep them handy for future reference. -
Page 2: Supplied Accessories
OHP 5000 User Manual Supplied Accessories Connector Cable OHP 5000 Features Digital flash memory - design retains music/message content even during power loss...unit ships with preloaded audio. Integrated CD mechanism - quickly and easily record high quality audio. CD media is easy and inexpensive to duplicate and distribute. - Page 3 Set-up Connection to PBX or KEY phone systems Plug AC adapter into wall outlet. Plug AC adapter cable into jack marked "DC12V". Plug "Connector Cable" to "AUDIO OUT" jack. Plug other end of "Connector Cable" into phone system's music-on-hold (moh) input jack. NOTE: If the jack cannot be located, contact phone vendor for information.
-
Page 4: Controls And Functions
OHP 5000 User Manual Controls & Functions LCD Display Track Number displays CD track number during programming Player Controls RECORD used to inmate recording from multi-track CD Record Mode Indicator displayed when audio is being recorded to memory Track Select Indicator Track Indicator displayed when a track displays CD track length... -
Page 5: Operation
OHP 5000 User Manual Operation Playback Playing Audio Stored in Memory By default, the unit is always in "playback" mode. When unit is playing, the LCD will display a running time and the segments on the speaker icon will move. Playback After Power Loss If power to the unit is lost, the unit will resume playback as soon as power is reapplied. -
Page 6: External Recording
OHP 5000 User Manual Operation (cont'd) External Recording 1. Insert 3.5 mini plug into the jack marked AUX IN. 2. Press the REC button to begin recording. 3. Begin playback of your external source. 4. When finished, press REC button again to stop recording. OPERATION -- Once REC button is pressed, the unit will begin recording the content of external source audio into the unit's digital memory. -
Page 7: Other Functions
Other Functions Remote Trigger Location -- rear panel Connection -- 2.5 mm mini jack Operation -- by connecting a momentary switch to this jack, the unit will play audio content from memory when triggered. Content will play through once and then reset, ready for next trigger sequence. - Page 8 OHP 5000 User Manual HoldTracks Audio CD Restoring or Updating Player's Original Audio Content Included with your OHP 5000 unit is a multi-track audio CD with a choice of eight different styles. By using this audio CD you can change or restore the original audio that came prerecorded with the unit.
-
Page 9: Limited Warranty
• Pack the unit in a well-padded, heavy, corrugated box. • Enclose proof of purchase. • Enclose your check or money order payable to On-Hold Plus in the amount of $10.00 to cover shipping and handling costs. • Ship the unit prepaid via UPS or parcel post (insured). -
Page 10: Fcc Information
NO ADDITIONAL ROYALTIES ARE DUE TO ON-HOLD PLUS OR ANY OTHER THIRD-PARTY MUSIC LICENSING AGENCY. For complete copy of the licensing agreement go to www.intellitouch.com/music_license.html... - Page 11 OHP 5000 User Manual Notes:...
- Page 12 800-839-7277 www.intellitouch.com On-Hold Plus and MessageStudio are registered trademarks of IntelliTouch Communications. ©2000 IntelliTouch Communications. All rights reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of IntelliTouch Communications.
