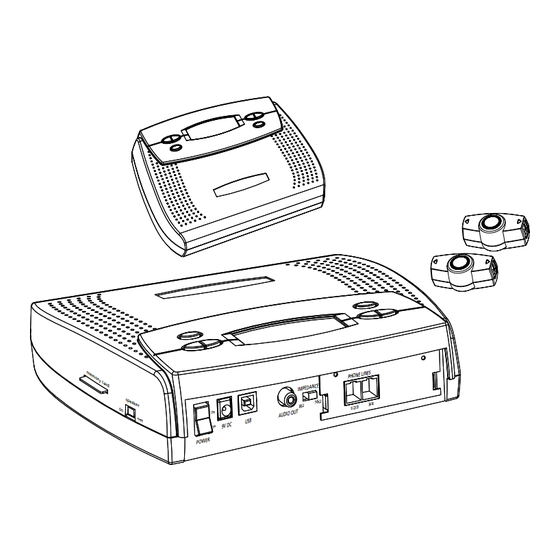

- Page 1 OHP 6500 User Manual On-Hold Plus 6500 Digital On-Hold Audio System with analog line capability Before using this unit, please read these operating instructions carefully. Afterwards, keep them handy for future reference.
-
Page 2: Supplied Accessories
OHP 6500 User Manual Supplied Accessories 4" handset cords Cordless phone Cordless phone Telephone Extension 6' Phone Line Cords adapter cable (male) adapter cable (female) Hold Music Activators (TEHMA) USB Cable AC Adapter "T" Adapters MessageStudio Software & Drivers OHP 6500 Series Features Analog Line Capability - provides on-hold audio capability to ordinary analog and KSU-less phones. -
Page 3: Player Set-Up
Player Set-up Connection to analog phone lines step Lines 1 & 2 are combined in one wall jack and lines 3 & 4 are combined in another wall jack Plug the supplied "T adapter" into any modular phone jack which services line 1 and 2. (This will allow you to share the phone jack with any phone extension which you have plugged in to the wall jack.) Plug the provided phone cord into the jack marked "Line 1/2/3"... - Page 4 OHP 6500 User Manual Corded Phone Set-up Telephone Extension Hold Music Activators (TEHMA) step step corded phones NOTE GE 2-9450 & 2-9460 Phones The wiring in the handsets of GE 9450 and GE 9460 phones is reversed and your TEHMAs will require a special crossover cable to work.
-
Page 5: Cordless Telephone Connection
Cordless Phone Set-up Telephone Extension Hold Music Activators (TEHMA) For true "hold button activation" of on-hold audio, each cordless phone requires the use of a telephone headset (not included) in conjunction with a "hold music activator". Two hold music activators and headset adapter cables have been included in your package. -
Page 6: Installing Drivers
OHP 6500 User Manual Set-up Connection to PC Player USB cable IMPORTANT: Before connecting the USB cable from the PC to the unit, please make sure the power swith on the player is in the OFF position. Plug USB cable (square socket) into the USB jack on the back panel of the player. -
Page 7: Controls And Functions
"play" (arrow) or "stop" (square) VOLUME LEVEL bar graph displays relative volume level ID3 TAG displays name of track and other identifying information Acoustic Elegance On-Hold Plus 02:36/07:45 Song: 02/0008 REPEAT MODE displays continuous playback mode selected (repeat all, repeat shuffle, repeat one) -
Page 8: Operation
OHP 6500 User Manual Operation Playback Playing Audio Stored in Memory By default, the unit is always in "playback" mode. When unit is playing, the LCD will display a running time. Playback After Power Loss If power to the unit is lost, the unit will resume playback as soon as power is reapplied. -
Page 9: Usb Connection
Operation (cont'd) USB Connection Turn the POWER switch on the back of player to the OFF position. Plug the USB cable into the USB port on the back of your player Plug the other end of the cable into the USB port on your computer. Turn the POWER switch to the ON position (LCD will show an icon of a computer and a memory card with the word "READY.") Locate and select any MP3 or WMA audio file(s) or file(s) created and... -
Page 10: Player Software
You may record new messages in your own voice (using a mic hooked up to your PC sound card) or have messages professionally produced by On-Hold Plus or any other professional voice talent (see MessageStudio Writer on the following page). When your production is finished, click "EXPORT AS MP3"... - Page 11 Plus for professional voiceover of your custom messages by one of our certified prodction partners. Professional Production Services from On-Hold Plus On-Hold Plus' certified production partners offer complete, professional production services featuring "national broadcast quality voice talent." Your finished on-hold messages can be sent as a fully mixed production, or the voice files can be e-mailed individually for use with the MessageStduio Software.
-
Page 12: Fcc Information
Customer Support Toll-free customer support is available from 8AM to 5PM (PST) Monday thru Friday by calling 800-839-7277 On-Hold Plus and MessageStudio are registered trademarks of IntelliTouch Communications. © IntelliTouch Communications. All rights reserved. Music Content License Your purchase includes a perpetual license for unlimited use, on a single telephone system, of the music content provided with this system, as well as the content which was recorded into the playback unit at the factory.
