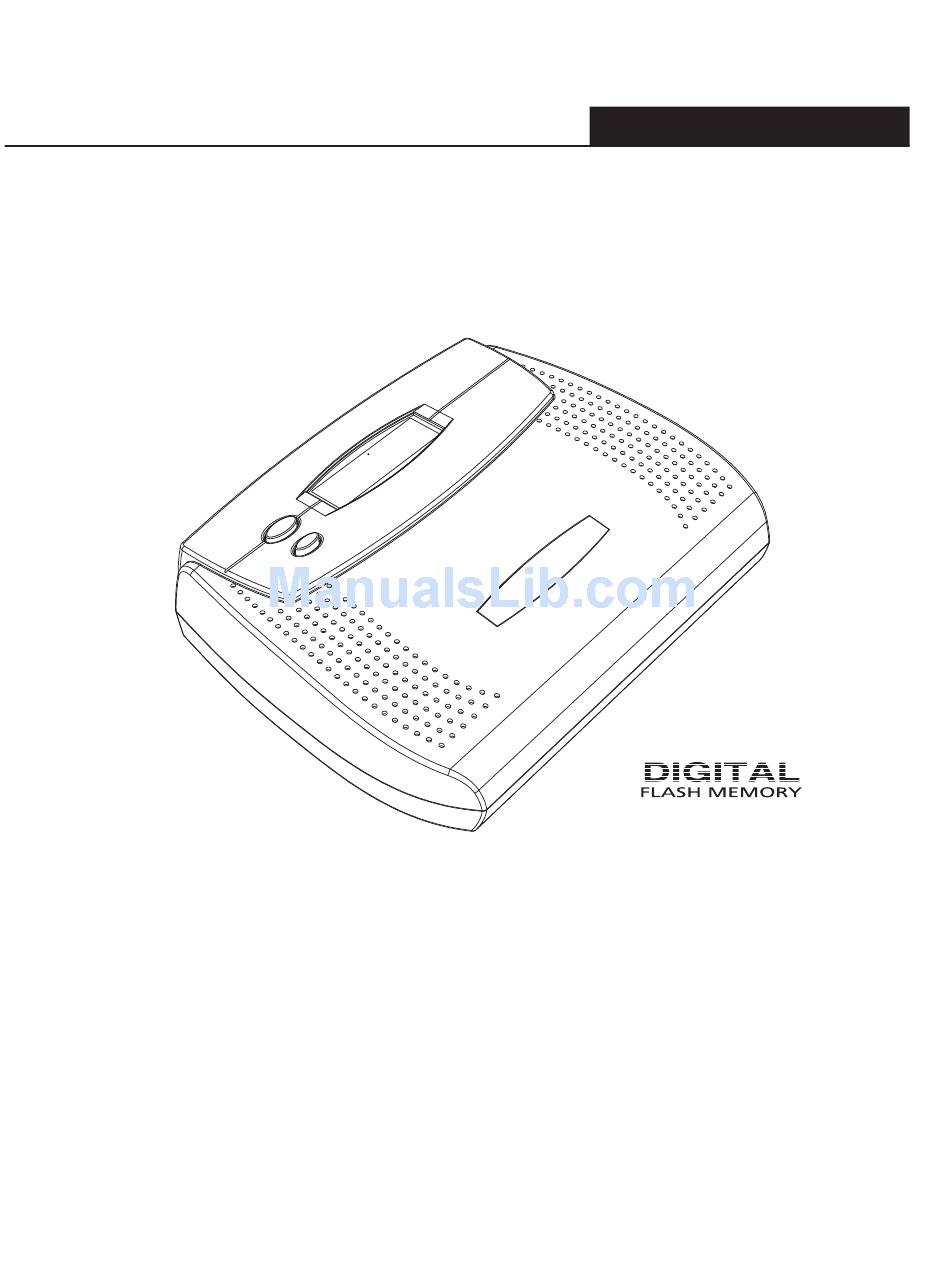

- Page 1 OHP 4000 Series User Manual On-Hold Plus 4000/4500 Digital On-Hold Audio System Before using this unit, please read these operating instructions carefully. Afterwards, keep them handy for future reference.
-
Page 2: Supplied Accessories
Message production software for On-Hold Plus digital player/recorders © On-Hold Plus, Inc., All rights reserved. MessageStudio is a trademark of On-Hold Plus, Inc. All other brand or product names are trademarks or registered trademarks of their respective holders. Unauthorized duplication or distribution is prohibited. - Page 3 OHP 4000 Series User Manual Set-up (OHP 4000) Connection to PBX or KEY phone systems music-on-hold input PBX or Key System Plug AC adapter into wall outlet. Plug AC adapter cable into jack marked "DC12V". Plug "Connector Cable A" to "AUDIO OUT" jack.
- Page 4 OHP 4000 Series User Manual Set-up (OHP 4500) Connection to Ordinary Analog or KSU-less Phones Combined Line Connection Lines 1 & 2 are combined in one wall jack and lines 3 & 4 are combined in another wall jack Phone Extensions...
-
Page 5: Controls And Functions
OHP 4000 Series User Manual Controls & Functions Recording Connection Plug "Connector Cable B" into "speaker out" or "audio out" jack of your computer's sound card or connect to the "headphone" jack of your PC's speakers (if available). NOTE: If using CD or tape player for recording audio content,, connect to the headphone jackof the tape or CD player. -
Page 6: Operation
OHP 4000 Series User Manual Operation Playback Playing Audio Stored in Memory By default, the unit is always in "playback" mode. When unit is playing, the LCD will display a running time and the segments on the speaker icon will move. -
Page 7: Manual Recording
OHP 4000 Series User Manual Operation (cont'd) Manual Recording 1. Insert 3.5 mm mini plug into the jack marked "AUDIO IN". 2. Press the "REC" button to begin recording. 3. Begin playback of your external source. 4. When finished, press "REC" button again to stop recording. -
Page 8: Other Functions
OHP 4000 Series User Manual Other Functions Remote Trigger Location -- rear panel Connection -- 2.5 mm mini jack Operation -- By connecting a momentary switch to this jack, the unit will play audio content from memory when triggered. Content will play through once and then reset, ready for next trigger sequence. -
Page 9: Player Software
PC with a 486 or better processor and a 16-bit sound card. © On-Hold Plus, Inc., All rights reserved. MessageStudio is a trademark of On-Hold Plus, Inc. All other brand or product names are trademarks or registered trademarks of their respective holders. - Page 10 Using the MessageStudio Player, you will add these professionally voiced message files to the program for playback with your choice of background music. To submit your production to On-Hold Plus for professional production, just follow the step-by-step instructions in the MessageStudio Writer software.
-
Page 11: Limited Warranty
• Pack the unit in a well-padded, heavy, corrugated box. • Enclose proof of purchase. • Enclose your check or money order payable to On-Hold Plus in the amount of $10.00 to cover shipping and handling costs. • Ship the unit prepaid via UPS or parcel post (insured). -
Page 12: Fcc Information
800-839-7277 www.onholdplus.com On-Hold Plus and MessageStudio are registered trademarks of IntelliTouch Communications. © IntelliTouch Communications. All rights reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of IntelliTouch Communications.
