Quick Links

Version: 2019.04.01
All the rights to this manual are reserved, especially reproduction, publication and translation rights. No portion of this manual may be
reproduced by no means (photocopy, microfilm or other methods) without previous written authorization from ECLERIS. Neither can it
be reproduced, multiplied or published through any electronic data processing form.
The information contained in this manual may be modified or broaden without previous notification, without it representing any
responsibility to ECLERIS.
ECLERIS USA.
11801 NW 100th Rd
Suite 17
Medley, FL 33178
Phone: +1 786 483 7490
USER MANUAL
STROBOLIGHT
LARYNGOSTROBOSCOPE
ABOUT THIS MANUAL
Year: 2019
Language: English
CMC Medical Devices & Drugs S.L.
C/ Horacio Lengo Nº18, CP29006,
Málaga, Spain
Ph. +34951214054
Email: info@cmcmedicaldevices.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STROBOLIGHT and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Ecleris STROBOLIGHT

  • Page 1 All the rights to this manual are reserved, especially reproduction, publication and translation rights. No portion of this manual may be reproduced by no means (photocopy, microfilm or other methods) without previous written authorization from ECLERIS. Neither can it be reproduced, multiplied or published through any electronic data processing form.
  • Page 2: Table Of Contents

    USER MANUAL – STROBOLIGHT TABLE OF CONTENT SYMBOLS ..........................3 SECURITY WARNINGS ......................3 DESCRIPTION......................... 4 INTENDED USE ........................4 INTENDED USER ........................ 4 DESCRIPTION AND FUNCTIONING ................... 4 3.3.1. PARAMETERS TO BE ASSESSED BY STROBOSCOPY ..........5 COMPONENTS ........................5 3.4.1...
  • Page 3: Symbols

     Repair or manipulation by unauthorized personnel. …personal or material damage is produced to a third party, ECLERIS, the manufacturer and sales agent of this equipment, will not assume responsibility for said damage.. The device should never be discarded with the household waste. Please check local regulations for electronic components disposal or recycling.
  • Page 4: Description

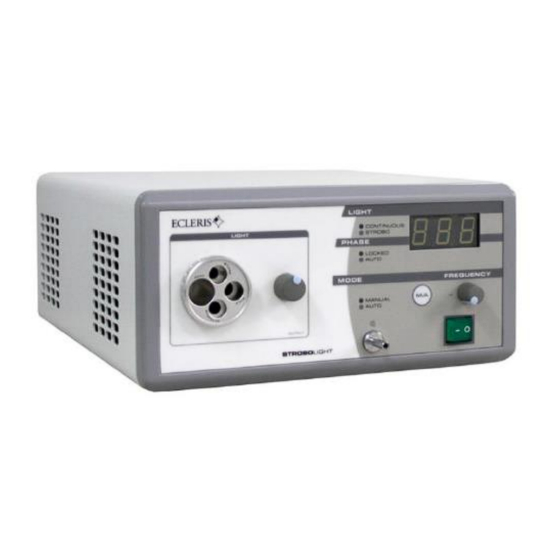

    The StroboLIGHT has been designed to be used by medical, paramedical or health professionals. 3.3 DESCRIPTION AND FUNCTIONING STROBOLIGHT stroboscope has a Xenon arc lamp, and has been designed to be used in Laryngostroboscopy as well as in endoscopic procedures, due to its versatility to provide, using the same lamp, completely continuous and stroboscopic light.
  • Page 5: Parameters To Be Assessed By Stroboscopy

     Results monitoring For a proper use of STROBOLIGHT it is essential to know the basic functioning of the equipment. 3.3.1. PARAMETERS TO BE ASSESSED BY STROBOSCOPY It is essential to know the parameters that have to be evaluated by stroboscopy. The different parameters are briefly discussed below.
  • Page 6: Front Panel

    USER MANUAL – STROBOLIGHT  Ecleris Procam video camera (Optional) It is advisable to use endoscopes and accessories that meet IEC60601-1 and IEC60601- 2-18 regulations. 3.4.1 FRONT PANEL 1. Frequency control (Manual Mode) 2. On/Off Switch 3. Contact microphone connector 4.
  • Page 7: Revision And Operation

    5. REVISION AND OPERATION 5.1 REVISION Once installation is over and before turning the STROBOLIGHT on, please go through the following check list:  Verify that the electrical power has its grounding connection in perfect conditions and that it makes perfect contact with the equipment.
  • Page 8: Equipment Controls Specifications

    The Xenon Lamp takes 2 seconds to turn on after the STROBOLIGHT is ON. 3) Use the diaphragm control (4) to regulate lighting intensity. 4) Once the procedure is over, turn the STROBOLIGHT off in order to maximize the lamp useful life and energy saving.
  • Page 9: Performing An Examination

    USER MANUAL – STROBOLIGHT pulses shall be sent to generate visual display of the desired folds. It is the normal functioning mode. 6. PERFORMING AN EXAMINATION 6.1 GENERAL CONSIDERATIONS It is essential to perform a stroboscopic examination in a quiet and noiseless environment; and to follow the series of steps described in this section: 1) Prepare the patient for the examination.
  • Page 10: Recommendations

    It is recommended to check the proper condition of the contact microphone. It can be damaged or cut, thus affecting the normal functioning of the equipment. Given that, request a replacement to your provider. ECLERIS is not liable for personal injuries or material damages caused to third-parties as a consequence of: ...
  • Page 11: Cleaning

    USER MANUAL – STROBOLIGHT Contact your local dealer or the closest ECLERIS’s office for the inspection or maintenance of any device. Only maintenance works expressly written on this manual are authorized by The Company. The guarantee will become void if any other work is done without ECLERIS’s consent.
  • Page 12 USER MANUAL – STROBOLIGHT 4) Disconnect the lamp power supply connector. 5) Remove the lamp holder screw and take away the defective lamp. Lamp holder Lamp power screw connector 6) Place the new 180W xenon lamp in the lamp holder as shown in pictures.
  • Page 13: Technical Specifications

    USER MANUAL – STROBOLIGHT 8. TECHNICAL SPECIFICATIONS Equipment: Laryngostroboscope Model: SL102 STROBOLIGHT Equipment Class Grade of protection against water IPXO Applicable part type Function Mode Continuous Input voltage 110/220VAC Phase number 1 (single-phased) Current type Alternate Frequencies 50/60 Hz Consumption 350W T 5AL / 250V ~ (110 V)T 2.5AL / 250V ~ (220...
  • Page 14: Troubleshooting

     Description of the problem. Send the STROBOLIGHT for repair or replacement. You must send the STROBOLIGHT in its original packing so that the equipment is not damaged during transport. Our company is not responsible for damages, which may occur during transport, caused by deficient packaging.
  • Page 15 USER MANUAL – STROBOLIGHT ECLERIS shall not be liable for any damage caused to/by the STROBOLIGHT due to incorrect use, negligence, cleaning or incorrect storage. Any repairs made by personnel not authorized by ECLERIS will void this warranty. The described warranty is exclusively valid for the original buyer.
