Summary of Contents for Hunter Douglas Pirouette

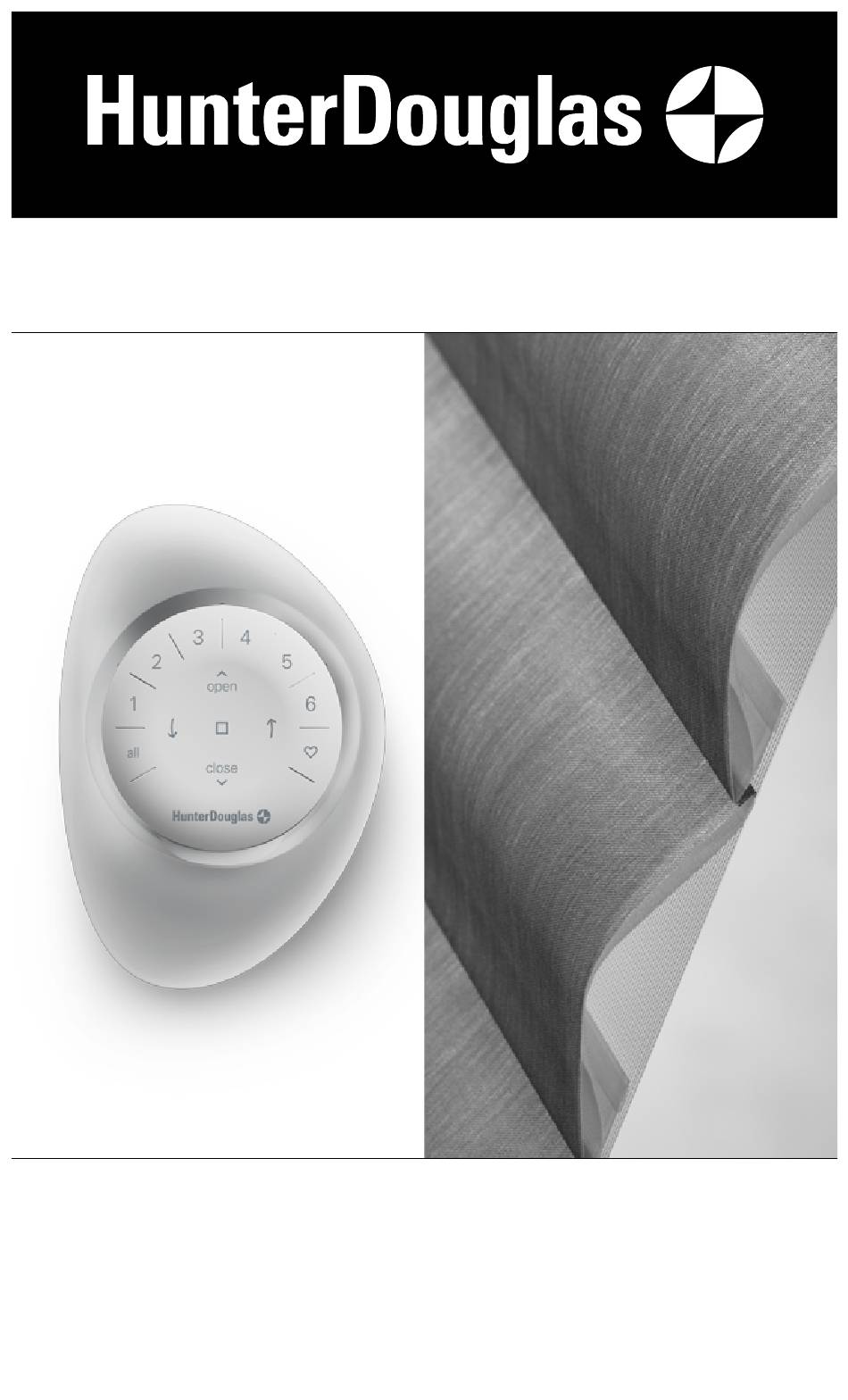

- Page 1 Installation Operation Care • • Pirouette Window Shadings ® PowerView Gen 3 Automation ®...
-
Page 2: Table Of Contents
Removing the Shading ..............26 Cleaning Procedures ..............26 DECLARATIONS................28 CHILD SAFETY ................29 WARRANTY .................30 Questions? Call Hunter Douglas Consumer Support at (800) 789-0331. © 2022 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their respective owners. -
Page 3: Getting Started
GETTING STARTED Product View Optional Dust Cover (For Outside Mount) Optional Back Cover (For Inside and End Mount) Fabric-covered Installation Headrail Brackets Battery Wand Headrail Control End Cap Button Fabric Bottom Rail... -
Page 4: Important Operating Note
GETTING STARTED Thank you for purchasing Hunter Douglas Pirouette Window Shadings with PowerView ® ® Gen 3 Automation. With proper installation, operation, and care, your new shadings will provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation. -
Page 5: Installation
INSTALLATION Installation Overview To install your shading, you will need to perform the following four steps: STEP 1: Mount the Installation Brackets STEP 2: Connect the Battery Wand, If Applicable STEP 3: Install the Shading STEP 4: Connect the Power Source, If Applicable STEP 1 —... -
Page 6: Inside Mount Bracket Installation
INSTALLATION Inside Mount Bracket Installation Prepare the Installation Brackets Back Cover Bracket NOTE: The back cover bracket is not provided with Top Tab the rechargeable battery wand. If using the optional back cover: ■ Back Cover NOTE: If you have the battery wand, do not remove Slots Bottom Tab the top tab on the back cover bracket. - Page 7 INSTALLATION The depth required for mounting will vary depending on the power supply and ■ mounting type. NOTE: Applies to all Pirouette Fabrics and Vane Sizes ® Minimum Fully Recessed Power Supply Mounting Depths Mounting Depths Battery Wand and Back Cover 1"...
-
Page 8: Outside Mount Bracket Installation
INSTALLATION Outside Mount Bracket Installation Mount the Installation Brackets Center the headrail over the window opening at the desired height. Use a pencil to lightly ■ mark the wall at each end of the headrail. Alternatively, measure the width of the headrail and use that width to mark the ➤... - Page 9 INSTALLATION Drill the screw holes using a ⁄ " drill bit. ■ CAUTION: Use drywall anchors when mounting into drywall. Attach the installation or extension brackets using the screws provided. ■ IMPORTANT: The top of the installation brackets or extension brackets must be level with their front edges aligned.
-
Page 10: End Mount Bracket Installation
INSTALLATION End Mount Bracket Installation End mount the headrail when conventional mounting techniques will not work — for example, in an arched window opening. Mount the Extension and Installation Brackets Mount extension brackets to each side of the opening at the desired height of the shading. ■... -
Page 11: Step 2 - Connect The Battery Wand/Mount (If Applicable)
INSTALLATION STEP 2 — Connect the Battery Wand/Mount (If Applicable) For the headrail-mounted battery wand and rechargeable battery wand, battery wand clips and battery wand/rechargeable battery mounts are installed before the shading is installed. For other power options, the power source will be connected after the shading is installed. For Standard Battery Wand Plug the Power Cable into the Battery Wand From the back of the shading headrail, connect the power cable from the motor side into... - Page 12 INSTALLATION Headrail-Mounted Rechargeable Battery Wand Install the Rechargeable Battery Wand Clips Attach the battery wand clips to the headrail. ■ Hook the battery wand clip onto the back channel of the headrail. ■ Rechargeable IMPORTANT: Position the clip so that the battery wand will be between Front of Battery Wand Clip Headrail...
-
Page 13: Step 3 - Install The Shading
INSTALLATION STEP 3 — Install the Shading IMPORTANT: Leave the protective cover on the fabric-covered headrail until you are satisfied with the installation and operation of your shading. Lever Headrail Ensure that each lever is pushed ■ to the left side of the bracket before installing the shading. -
Page 14: Step 4 - Connect The Power Source (If Applicable)
For an optional 18V DC Power Supply, see page 15. ➤ For an optional 18V DC Power Supply with daisy-chain connections, see page 16. ➤ For any other Hunter Douglas power options, see the instructions that came with ➤ the unit. Satellite Battery Pack (If Applicable) NOTE: Refer to this section only a satellite battery pack was included with the shade. - Page 15 INSTALLATION Plug the power cable from the shading into the satellite battery pack cable. ■ Plug the other end of the cable into the socket in the battery wand. ■ Battery Wand Cover Extension Cable Power Cable from Shading Secure the extension cable using wire retainers (not supplied). ■...
- Page 16 INSTALLATION Satellite-Mounted Rechargeable Battery Wand Install the Rechargeable Battery Mount Decide where you want to install the rechargeable battery mount. This may be mounted ■ behind the headrail, or in any desired location near the window covering. A satellite battery mount may be installed in any orientation. NOTE: Satellite mount required for rechargeable batteries less than 22"...
- Page 17 INSTALLATION Insert the Battery Wand into the Battery Mount NOTE: The rechargeable battery wand ships fully charged, so it is ready to install out of the package. Match the direction of the arrow on the underside of the battery wand with the arrow on ■...
- Page 18 INSTALLATION 18V DC Power Supply with Daisy-Chain Connections NOTE: The daisy-chain feature is only available with the 18V DC Power Supply option. Refer to this section if you have an 18V Power Supply with daisy-chain connections. The daisy-chain feature allows up to three PowerView Gen 3 automated shades to be ®...
-
Page 19: Testing The Shading
INSTALLATION Testing the Shading CAUTION: The shading should be installed before following Headrail Bottom View the steps below. Testing the shading with the control button will allow you to ensure that the motor and power source are working correctly. Control Button Press the control button on the bottom of the motor side ■... -
Page 20: Operation

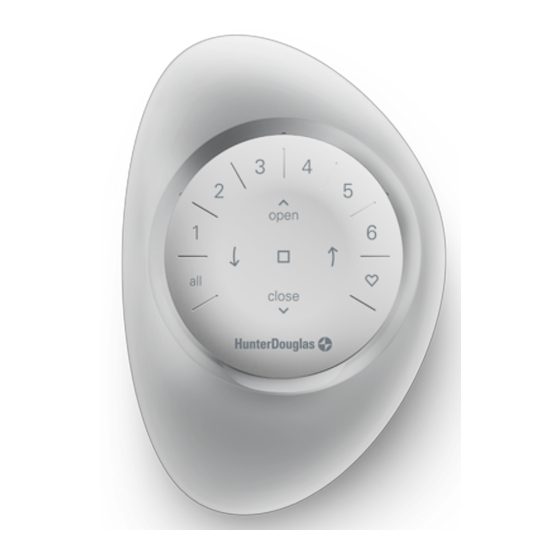

OPERATION Operating the PowerView App and Gen 3 Remote Syncing and Programming Your Remote Activate the remote by pulling both plastic tabs from the back battery compartment. ■ Download the PowerView App for your smartphone or tablet at hdpvapp.com. ■ ®... -
Page 21: Resetting The Shading
OPERATION Resetting the Shading Calibration Reset The calibration reset is used to recalibrate the shading’s travel limits. This action is performed in the PowerView App. Select Calibrate Shade in the Advanced Options section of the Shade Settings menu in the ■... -
Page 22: Troubleshooting
■ Refer to the following troubleshooting procedures for specific solutions for your shade. ■ If questions remain, please contact Hunter Douglas Consumer Support at (800) 789-0331. Problem PowerView Gen 3 only: The shading does not respond to the remote. Solution IMPORTANT: A shade will not operate until it is joined to a group. - Page 23 TROUBLESHOOTING Problem The shading does not operate using the control button. Solution Unplug the power cable from the motor, then plug it back in. A blue LED inside the control button housing should flash to indicate the motor has power. Check that the batteries in the battery wand, satellite battery pack, or C-size satellite battery wand are correctly inserted and fresh.
- Page 24 Press the cap on until Squeeze Latch it latches. NOTE: Hunter Douglas recommends AA alkaline batteries for use with our battery-powered shadings. These will provide more than one year of operation, depending on usage. Lithium and rechargeable batteries are not recommended.
- Page 25 CAUTION: The rechargeable battery wand can only be charged with these Hunter Douglas provided charging options. Attempting to charge battery wands with an alternative charger may result in permanent damage. Removing the Rechargeable Battery Wand from the Mount To safely remove the rechargeable battery wand from your shading, grasp ■...
- Page 26 TROUBLESHOOTING Problem Rechargeable battery needs recharging (continued). Solution Recharging Via the Single Charger Remove the rechargeable battery wand from the mount, or insert the single charger cable without removing from the shading. Attach the plug adapter to the charger. ■ Attach the female end of the charging ■...
- Page 27 TROUBLESHOOTING Problem Rechargeable battery needs recharging (continued). Solution Reinserting the Rechargeable Battery Wand into the Mount Match the direction of the arrow on the underside of the battery wand ■ with the arrow on the battery mount. Insert the nose of the battery wand into the cavity of the battery mount. ■...
-
Page 28: Care
Spot clean with a damp cloth using a mixture of water and mild detergent. ■ Injection/Extraction All Pirouette fabrics may be cleaned using the Injection/Extraction method. For ■ recommendations on Injection/Extraction Professional Cleaners, please call Consumer Support at (800) 789-0331. - Page 29 ■ A Note About Pirouette Fabric As with all textiles, Pirouette fabrics are subject to some variations. Slight wrinkling, puckering, or bowing is inherent to this textile product and should be considered normal, acceptable quality. These characteristics are not usually visible from the front or rear but may be visible from a side angle.
-
Page 30: Declarations
CE Statement Hunter Douglas Window Fashions, One Duette Way, Broomfield, CO 80020, USA Hunter Douglas hereby declares that the PV33 is in compliance with the essential requirements and other relevant provisions of Electromagnetic Compatibility (EMC) Directive 2014/30/EU and Radio Equipment Directive (RED) 2014/53/EU. -
Page 31: Child Safety
CHILD SAFETY... -
Page 32: Warranty
2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations. 3. Contact Hunter Douglas at (800) 789-0331 for technical support, certain parts free of charge, for assistance in obtaining warranty service or for further explanation of our warranty.
