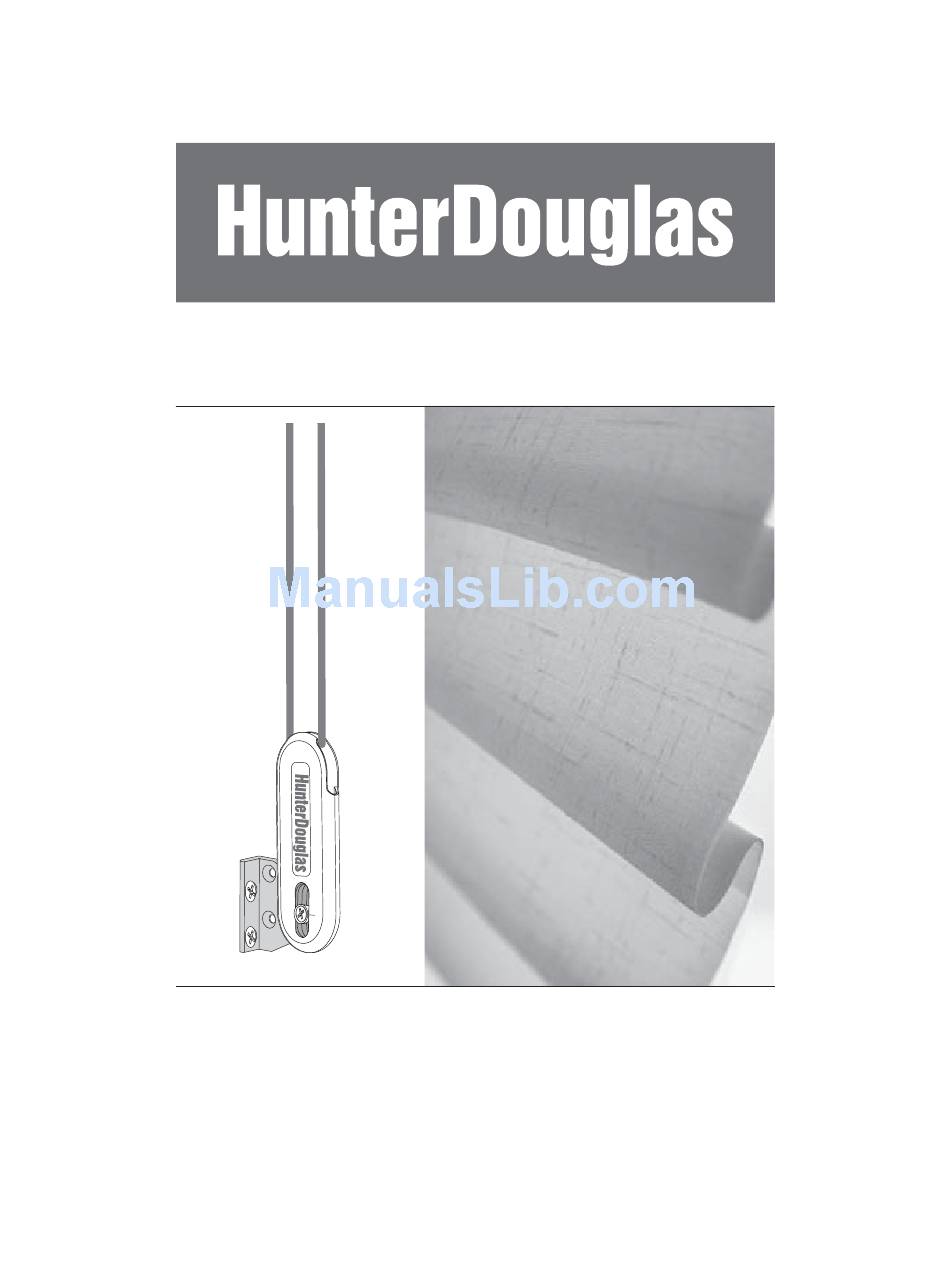

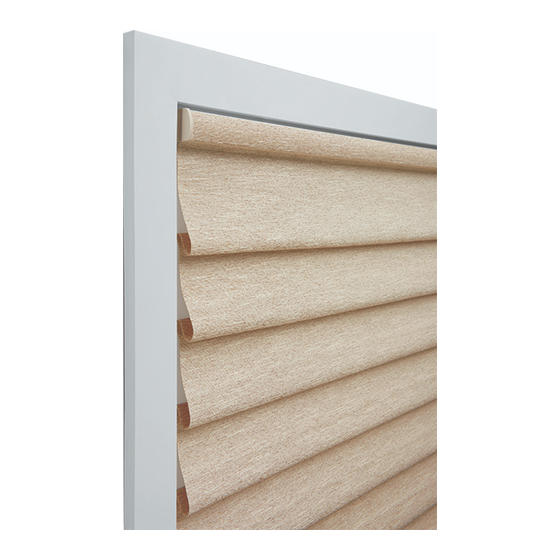

- Page 1 Installation Operation Care • • ® Vignette Modern Roman Shades ™ EasyRise Lifting Systems Standard, Top-Down/Bottom-Up and Two-On-One Headrail...
-
Page 2: Table Of Contents
Remove The Shade ............. 12 Child Safety: Warning ..............13 Cord Loop Shades ............13 Questions? Call the Hunter Douglas Customer Information Center at 1-888-501-8364. © 2009 Hunter Douglas Inc. ® Registered trademark of Hunter Douglas Inc. ™ Trademark of Hunter Douglas Inc. -
Page 3: Getting Started
GETTING STARTED ® Thank you for purchasing Hunter Douglas Vignette Modern Roman Shades. With proper installation, operation, and care, your new shades will provide years of beauty and performance. Please thoroughly review this instruction booklet before beginning the installation. Mounting Types And Window Terminology If the installation brackets are mounted correctly, the rest of the installation process will follow easily. -
Page 4: Tools And Fasteners Needed
GETTING STARTED Optional Components ■ Extension Brackets. Extension brackets can add up to 3 " of clearance for end mounts. If requested, there should be the same number of extension brackets as installation brackets. Extension Bracket (Optional) ■ Spacer Blocks. Each spacer block projects the installation bracket ∕... -
Page 5: Product View
GETTING STARTED Product View Installation Brackets Headrail Headrail Cord Tensioner Bracket Hold-Down Bracket (Optional) Cord Tensioner Bracket Hold-Down Bracket (Optional) Not Shown: Two-On-One Headrail... -
Page 6: Installation
INSTALLATION Mount The Installation Brackets — Inside Mount Remove ■ Use pliers to break off and discard the tab of each bracket. ■ Measure in 3" from each jamb for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s) on studs, evenly between the two end brackets. -
Page 7: Mount The Installation Brackets - Outside Mount
INSTALLATION Mount The Installation Brackets — Outside Mount Remove ■ Use pliers to break off and discard the tab of each bracket. ■ Determine the bracket locations. ➤ With the shade lowered, center it over the window opening at the desired height. Use a pencil to lightly mark each end of the headrail. -
Page 8: Mount The Installation Brackets - End Mount
INSTALLATION ■ Fasten installation brackets to the mounting surface using the hex head screws provided. ➤ If using spacer blocks, attach a Spacer Blocks maximum of three spacer block(s) and installation bracket to a fl at vertical mounting surface with a #6 screw long enough for a secure installation (screws not provided). -
Page 9: Attach The Hold-Down Brackets (Optional)
INSTALLATION Attach The Hold-Down Brackets (Optional) Hold-down brackets may be used with outside mount shades only. ■ With the shade fully lowered, insert the pin on the hold-down bracket into the hole on the bottom rail end cap. ■ Mark the hole locations on the mounting surface. ■... -
Page 10: Operation
OPERATION Operate The Shade ■ Pull the front cord of the cord loop to lower the shade from the top. Continue to pull until the shade is fully lowered and rotated back toward the window. ■ Pull the rear cord of the cord loop to raise the shade. - Page 11 Allow the shade to dry in the fully lowered position. ■ If necessary, reapply the static spray each time the shade is professionally cleaned. ■ ® Vignette Top-Down/ Gently lift the lower side of the midrail until the shade Bottom-Up Shades Only: appears level. Shade midrail appears uneven.
- Page 12 OPERATION Problem Solution ■ The shade raises or Check that the window is square by measuring the lowers unevenly, or the diagonals. bottom rail is uneven ■ Check that the headrail is level. Shim the installation when fully raised. brackets to level, if necessary. ■...
-
Page 13: Care
A Note On Textiles As with all textiles, the Vignette fabrics are subject to some inherent variations in the fabric weave. Subtle dye-lot variations, puckering, or wrinkling fall within textile industry standards and should be considered as normal, acceptable quality. Additionally, there will be slight differences in pattern alignment from the fabric on the headrail to the fabric of the shade, which do not detract from the product’s appeal. -
Page 14: Remove The Shade
Allow the shade to dry in the completely lowered position. CAUTION: Do not ultrasonically clean the fabric on the headrail. Injection/Extraction Cleaning ® Vignette Modern Roman Shades can be cleaned by a professional using the injection/extraction method of deep cleaning. ■... -
Page 15: Child Safety
7. This can prevent children from pulling cord loops around their necks. ■ Hunter Douglas provides a cord tensioner installation kit with instructions for attaching the cord tensioner. For the shade to operate properly, the cord tensioner must be correctly mounted and secured. - Page 16 2. Visit hunterdouglas.com/customersupport for additional warranty information and frequently asked questions. 3. Contact Hunter Douglas Inc. at 1-888-501-8364 (9:00 AM - 8:00 PM EST) for technical support, certain parts free of charge, for assistance in obtaining warranty service or for further explanation of our warranty.
