Motorized roller shades 4" fascia coupled

Advertisement

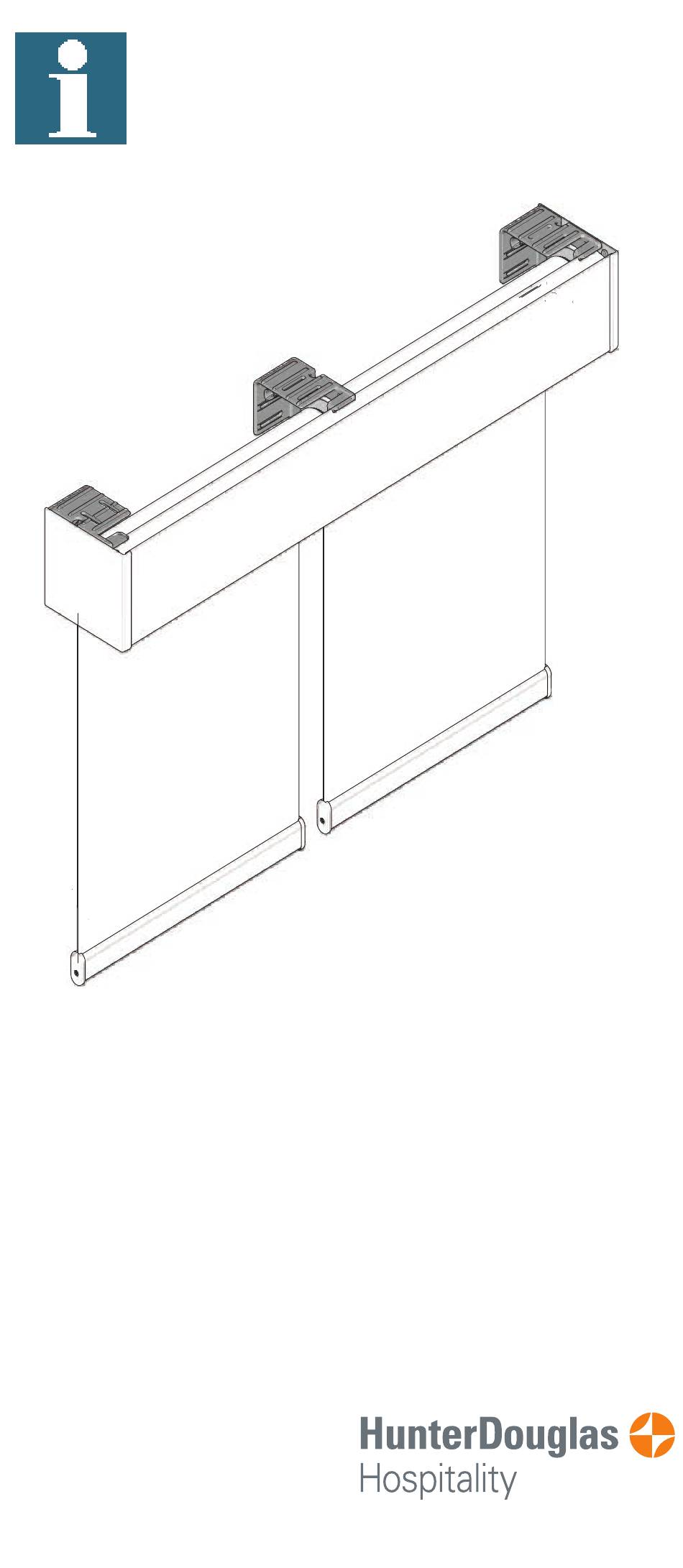

Installation Instruction
RB 500 Motorized Roller Shades
4" Fascia Coupled
Series 5-287–216
Compatible Motors
LT50 RA 525A2
LT50 Altus RTS 525A2
Sonesse 50 RTS 506S2
Sonesse 50 DCT 506S2
Sonesse 50 RA 506S2
Sonesse 50 RS485 506S2
Sonesse 50 RTS 510S2
Sonesse 50 DCT 510S2
Sonesse 50 RA 510S2
Sonesse 50 RS485 510S2
Sonesse ULTRA 50 RTS 506A2
Sonesse ULTRA 50 RA 506A2
Sonesse ULTRA 50 RS485 506A2
LT50 RS485 515S2
LT50 RS485 535A2
Sonesse ULTRA 50 DC RTS 504A8
Sonesse 50 DC RS485 504A8
Sonesse 30 RTS
Sonesse 30 DCT
Sonesse 30 RS485
S
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RB 500 5-287-216 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Hunter Douglas RB 500 5-287-216 Series

  • Page 1 Installation Instruction RB 500 Motorized Roller Shades 4" Fascia Coupled Series 5-287–216 Compatible Motors LT50 RA 525A2 Sonesse ULTRA 50 RTS 506A2 LT50 Altus RTS 525A2 Sonesse ULTRA 50 RA 506A2 Sonesse 50 RTS 506S2 Sonesse ULTRA 50 RS485 506A2 Sonesse 50 DCT 506S2 LT50 RS485 515S2 Sonesse 50 RA 506S2...
  • Page 2 Installation Install the clutch bracket and intermediate bracket first. a) recess b) ceiling c) wall Insert the Plate L into the intermediate bracket. Turn the Plate L in the rolling off direction(1) and secure with the locking p i l Not necessary when using bracket with leveler.
  • Page 3 Turn the blind (10°) in the rolling off direction (1) and Fix the blind by turning the locking ring against the bearing.
  • Page 4 Option: Leveller To adjust skewing, put the provided Allen key into the screw of the leveller and turn it left or right to move the blind up and down. Support lifting of large heavy blinds with the palm of your hand.
  • Page 5 Installation: Coupled shade Use a pair of pliers to break off the stopper from the intermediate bracket. Install the outer bracket with the screws provided. Slide the aligner or the connector set through the intermediate bracket into the tube bearing plug.
  • Page 6 Place the tube with plug connector on the aligner or connector set head. Press the tube bearing plug, lift the roller shade and snap it into the bracket. To align the bottom hembars, pull the shade away from aligner set (1), turn shade to line up bottom hembars together (2).
  • Page 7 Secure shade band by turning the locking ring on tube bearing plug furthest away from the bracket. Option: Leveler To adjust skewing, put the provided Allen key into the screw of the leveler and turn it left or right to move the shade up and down.
  • Page 8 Push the fascia to snap it into the bracket. Slide the bracket covers onto the brackets. Removal Place the screw driver under the bracket cover, turn the screw driver and slide the bracket cover from the bracket.
  • Page 9 Press the bottom of the fascia upwards (1) and pull it outwards (2). Unfasten the locking ring. Slide a screw driver between locking ring and bracket and push the tube bearing plug in the aligner/connector direction. Move the roller shade downwards out of the brack- et.
  • Page 10 Connect the motor and all controls in accordance with all safety standards.
