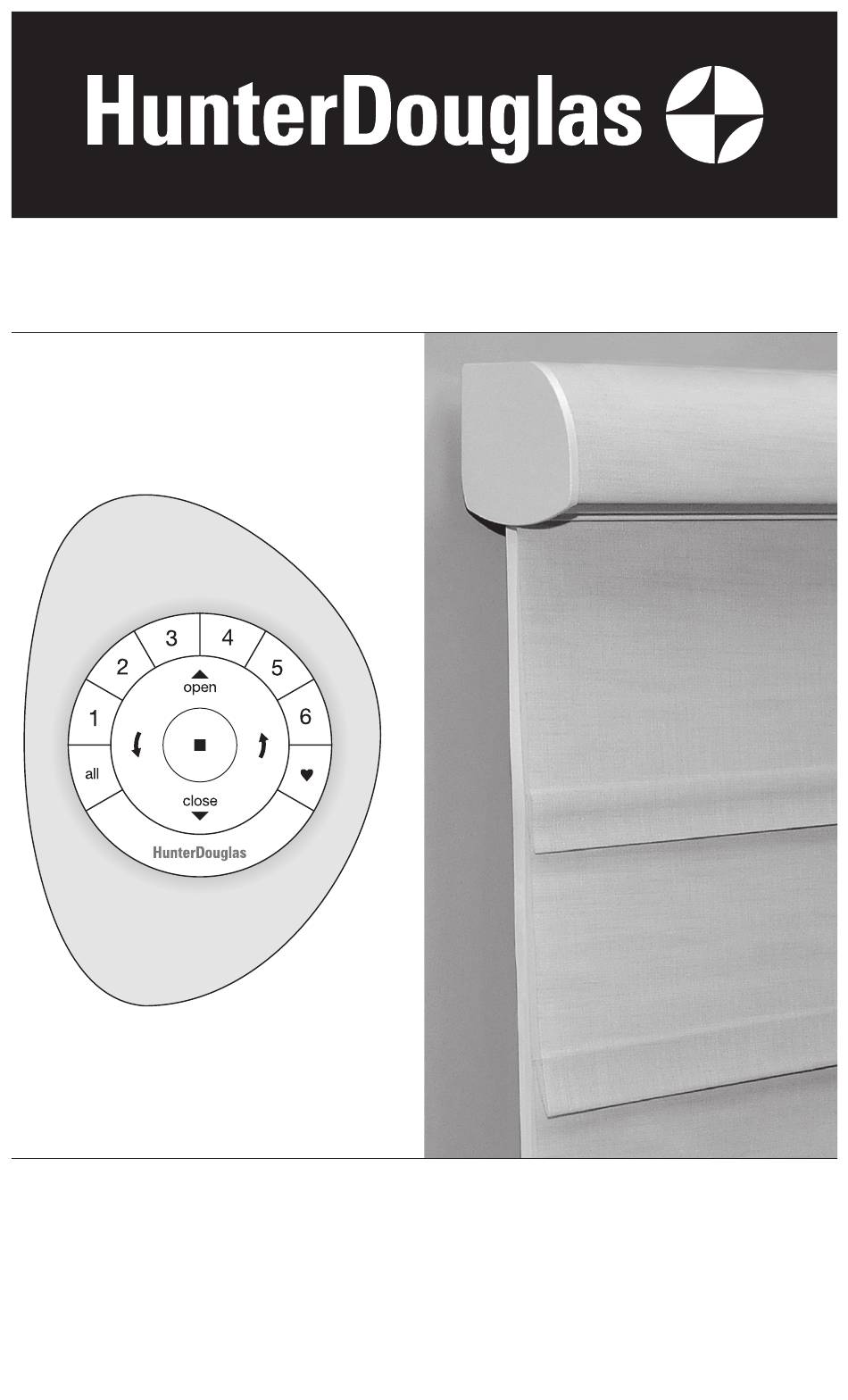

  • Page 1 Installation Operation Care • • Vignette Modern Roman Shades ® Rolling Style Duolite Shades ® PowerView Motorization ®...
  • Page 2: Table Of Contents

    Removing the Shade ........... 19 Cleaning Procedures ........... 19 Declarations .............. 21 Warranty ............Back Cover Questions? Call Hunter Douglas Consumer Support at 1-888-501-8364. © 2018 Hunter Douglas. All rights reserved. All trademarks used herein are the property of Hunter Douglas or their respective owners.
  • Page 3: Getting Started

    GETTING STARTED Product View Battery Battery Wand Clips Wand Spacer Power Cable* Blocks Installation Headrail Brackets Wire Saddle Programming Button* Front Shade Front Back Panel Shade Bottom Rail Back Panel Bottom Rail Bottom Rail Weight Remote Front Shade Bottom Rail Bottom Rail Weight Clips *The power cable, PowerView...
  • Page 4: Tools And Fasteners Needed

    GETTING STARTED Thank you for purchasing Hunter Douglas Vignette Modern Roman Shades Duolite with ® ® PowerView Motorization. With proper installation, operation, and care, your new shades will ® provide years of beauty and performance. Please thoroughly review this instruction booklet and the enclosed packing list before beginning the installation.
  • Page 5: Installation

    INSTALLATION Installation Overview To install your shade, you will need to perform the following four steps: STEP 1: Mount the Installation Brackets STEP 2: Remove the Shipping Clips STEP 3: Install the Shade STEP 4: Connect the Power Source STEP 1 — Mount the Installation Brackets Your order includes the correct number of installation brackets for your shade width, as ■...
  • Page 6 INSTALLATION Mount the Installation Brackets — Inside Mount Measure and mark 3" in from each jamb (two bracket widths) for bracket location. ■ If more than two installation brackets came with your order, space additional bracket(s) ➤ evenly between the two end brackets and mark the location. Mount into wood whenever possible.
  • Page 7 INSTALLATION Mount the Installation Brackets — Outside Mount Center the headrail over the window opening at the desired height. Use a pencil to lightly ■ mark each end of the headrail. Alternatively, measure the width of the headrail and use that width to mark the headrail ➤...
  • Page 8 INSTALLATION Attach the installation brackets using the screws provided. ■ IMPORTANT: Additional clearance is required for PowerView shades with the battery wand. Use a ® minimum of one " and one " spacer blocks per 3" installation bracket to provide the clearance required for the battery wand.
  • Page 9: Step 2 - Remove The Shipping Clips

    INSTALLATION STEP 2 — Remove the Shipping Clips Shipping clips are used to stabilize the back panel bottom rail during shipping. Remove the Top of the Clip Grasp the headrail with one hand and hold the ■ shipping clip with the other hand. Pull the top of the clip out and up to release it from ■...
  • Page 10: Step 3 - Install The Shade

    INSTALLATION STEP 3 — Install the Shade Install the Battery Wand Clips Attach each battery wand clip to the rear of the headrail, avoiding the installation brackets. NOTE: The battery wand clips can simply slide to clear the installation brackets. Mount the Headrail Installation CAUTION: Be sure the cables do not become...
  • Page 11: Step 4 - Connect The Power Source

    INSTALLATION STEP 4 — Connect the Power Source ■ NOTE: When power is connected to the motor, a green LED inside the programming button housing will flash to indicate the shade is ready for operation. Refer to the appropriate page based on the ordered power source. ■...
  • Page 12 INSTALLATION If You Have a Satellite Battery Pack... Mount the Satellite Battery Pack Decide where you want to attach the wall mount bracket. ■ Wall Mount Bracket A satellite battery pack may be mounted in any orientation. Mark the screw holes. ■...
  • Page 13 INSTALLATION If You Have an 18V DC Power Supply... Connect the Power Supply Plug the power cable from the shade into ■ Power Cable from Shade the extension cable. Plug the other end of the extension cable ■ Wire Retainers into the 18V DC power supply.
  • Page 14 INSTALLATION If You Have an 18V DC Power Supply with Daisy-Chain Connections... The daisy-chain feature allows up to three PowerView motorized shades to be powered by a ® single 18V DC power supply. However, each shade has its own RF receiver and can operate independently.
  • Page 15: Operation

    OPERATION Operate the Shade The shade can be operated using the programming button or the PowerView remote. A single ® control is used to operate both the front shade and the back panel. Operation is sequential. The front shade must be fully lowered before the back panel can be lowered. Conversely, the back panel must be fully raised before the front shade can be raised.
  • Page 16: Using The Powerview Remote

    OPERATION Using the PowerView Remote ® First, activate the remote by pulling both plastic tabs from the back battery compartment. OPEN Group 3 Group 4 (Raises the front shade and back panel) Group 2 Group 5 Group 1 Group 6 LEFT ARROW RIGHT ARROW (Lowers the front shade...
  • Page 17: Resetting The Shade (If Necessary)

    OPERATION Press the left arrow or the right arrow to lower the front shade to fully closed and raise the ■ back panel to fully open. While a shade is in motion, press the opposite of shade motion (▲ OPEN or ▼ CLOSE) to ■...
  • Page 18: Troubleshooting

    First review the guide that came with your control device. ■ Refer to the following troubleshooting procedures for specific solutions for your shade. ■ If questions remain, please contact Hunter Douglas Consumer Support at 1-888-501-8364. Problem The shade will not snap into the installation brackets. Solution Check that the installation brackets are level and aligned.
  • Page 19 Press the cap on until it latches. Latch Squeeze NOTE: Hunter Douglas recommends AA alkaline batteries for use with our battery-powered shades. These will provide more than one year of operation, depending on usage. Lithium and rechargeable batteries are not recommended.
  • Page 20 OPERATION Problem Adjacent shades do not roll up evenly. Solution It is considered normal if the roll-up on adjacent shades is within " of each other. If one shade rolls up tighter than another, repeatedly lower and raise both shades. The shade may need to be reset. Refer to “Resetting the Shade (If Necessary)”...
  • Page 21: Care

    Cleaning Procedures Hunter Douglas Vignette Modern Roman Shades are made with anti-static, dust-resistant ® fabrics that repel dirt and dust. For most fabrics, the following cleaning options are available.
  • Page 22 Allow the shade to dry in the completely lowered position. ■ Injection/Extraction Cleaning Vignette Modern Roman Shades can be cleaned by a professional using the injection/extraction method of deep cleaning. CAUTION: Do not use the injection/extraction method of deep cleaning on the headrail or bottom rail fabric.
  • Page 23: Declarations

    RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person’s body. European Conformity We, the undersigned, Hunter Douglas Window Fashions One Duette Way, Broomfield, CO 80020, USA Hunter Douglas Europe B.V. Piekstraat 2, 3071 EL Rotterdam, The Netherlands certify and declare under our sole responsibility that assembly PV13 conforms with the essential requirements of RED 2014/53/EU.
  • Page 24: Warranty

    2. Visit hunterdouglas.com for additional warranty information, frequently asked questions and access to service locations. 3. Contact Hunter Douglas at (888) 501-8364 for technical support, certain parts free of charge, for assistance in obtaining warranty service or for further explanation of our warranty.
