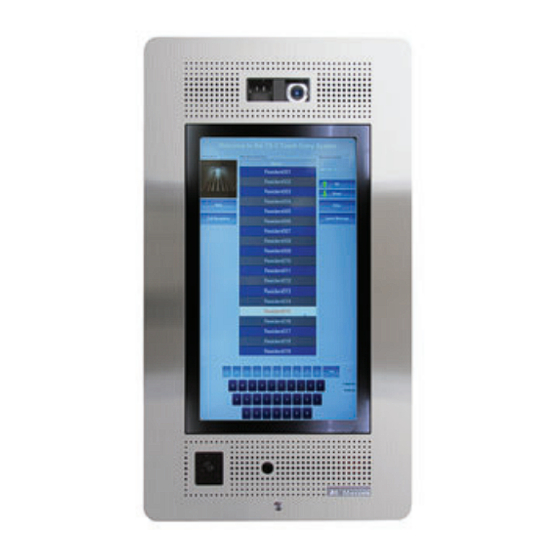

Mircom TX3-TOUCH-UPS-KIT Installation Instructions

TX3-TOUCH-UPS-KIT Installation Instructions
A.

Package contents

• APC Back-UPS uninterruptible power supply (model: BE 550G,
rating: 550VA 120V) including manufacturer's documentation
and USB A male to USB B male cable (shown on right)
• 2 USB over Ethernet extender cables (shown on right). Use
with an Ethernet cable (not included) if more distance is
required. Maximum distances is 46 m (150 feet)
B.

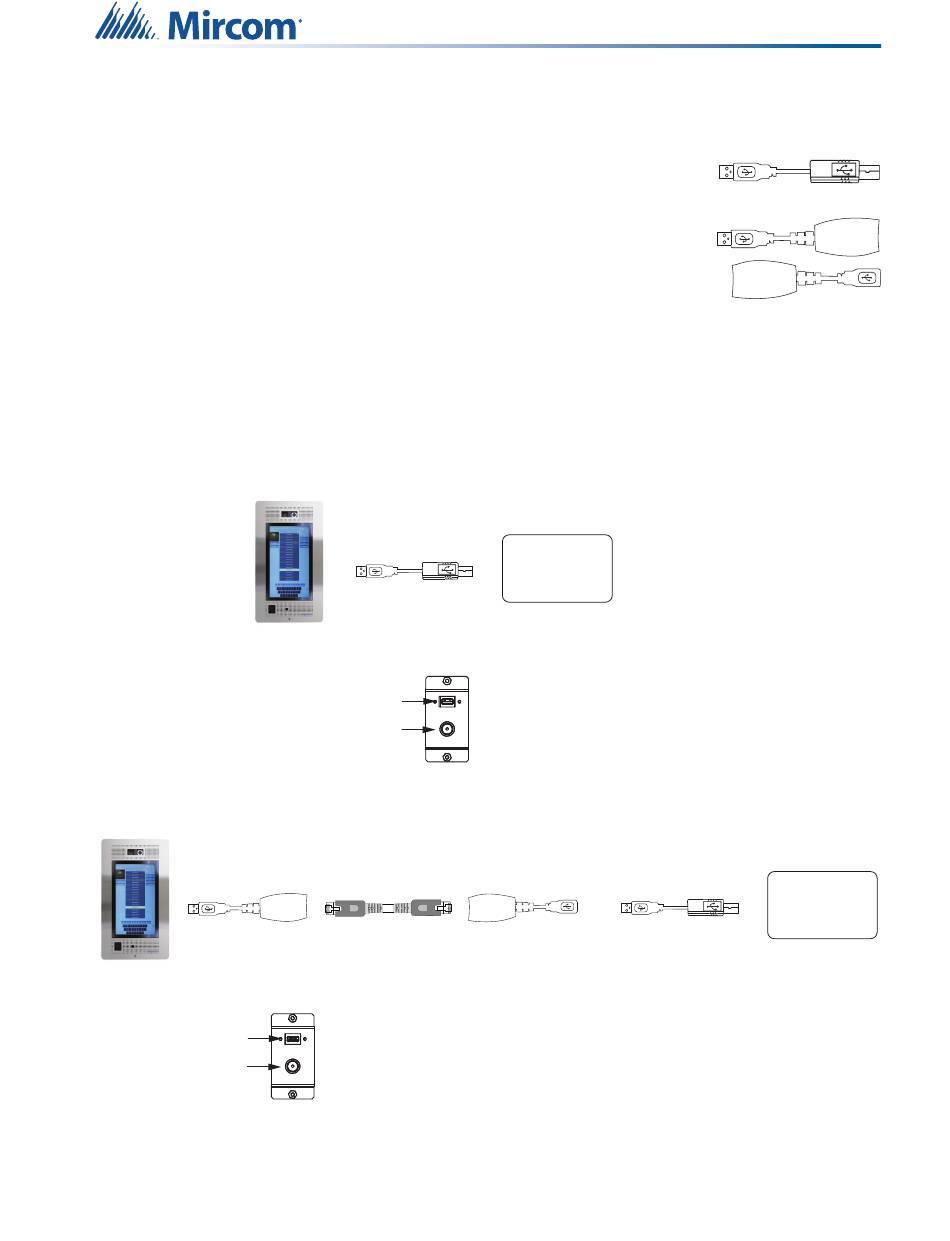

Connect the USB Cable

The USB connection between the uninterruptible power supply and the TX3 Touch (in
conjunction with the APC software) ensures that the TX3 Touch will shut down properly during
a power outage.
Note:
1. Connect the USB port on the uninterruptible power supply to the USB port on the TX3
Touch.
TX3 Touch
If the USB A male to B male cable is too short, use an Ethernet cable (not included) and
the included USB over Ethernet extender cables as shown below. The maximum
distance is 46 m (150 feet).
USB A male to Ethernet
(Connect to the USB
port at the bottom of
TX3 Touch
the Touch chassis, above
the On/Off switch)
USB port
On/Off switch
2. Go to page 2.
LT-6714 Rev 0 http://www.mircom.com
Read the manufacturer's documentation included with the
uninterruptible power supply.
USB A male to USB B male
(Connect to the USB port
at the bottom of the
Touch chassis, above the
On/Off switch)
USB port
On/Off switch
Ethernet cable Ethernet to USB A female
maximum distance:
46 m (150 feet)
Back-UPS
Uninterruptible
power supply
USB A male to USB B male
Back-UPS
Uninterruptible
power supply
Page 1 of 3
