Regent Lighting Solutions IRIS Series Installation Instructions

Save These Instructions for Future Reference
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Electronic/Magentic Control Device
IRIS BOLLARD
Save These Instructions for Future Reference
Electrical products can cause death, injury, or damage to
property. Installation of this product must be carried out by a
qualified electrician, in compliance with SANS 10142 or
corresponding regulations of the country of installation. On
completion of installation, the Certificate of Compliance must
be updated.
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specifications modify designs and discontinue items without
incurring obligation and whilst every effort is made to ensure that descriptions, specifications and other
information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be
liable for any error therein.
www.regentlight.co.za
REGENT LIGHTING A DIVISION OF WAHL
INDUSTRIES.
www.regentlight.co.za
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171
January 2018

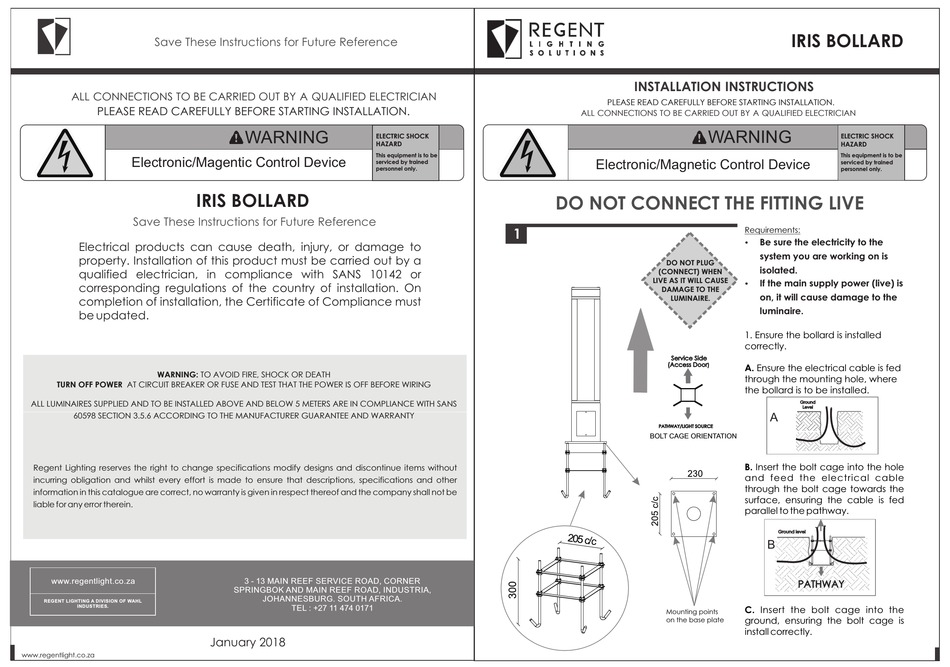

INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Electronic/Magnetic Control Device
DO NOT CONNECT THE FITTING LIVE
1
1
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
Service Side
(Access Door
2 PATHWAY/LIGHT SOURCE
BOLT CAGE ORIENTATION
Mounting points
on the base plate
IRIS BOLLARD
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Requirements:
Be sure the electricity to the

system you are working on is
isolated.
If the main supply power (live) is

on, it will cause damage to the
luminaire.
1. Ensure the bollard is installed
correctly.
)
A. Ensure the electrical cable is fed
through the mounting hole, where
the bollard is to be installed.
Ground
Level
A
B. Insert the bolt cage into the hole
and feed the electrical cable
through the bolt cage towards the
surface, ensuring the cable is fed
parallel to the pathway.
Ground level
B
PATHWAY
C. Insert the bolt cage into the
ground, ensuring the bolt cage is
install correctly.
