Regent Lighting Solutions Bedford Bollard - Buried Installation Instructions

Save These Instructions for Future Reference
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Electronic/Magnetic Control Device

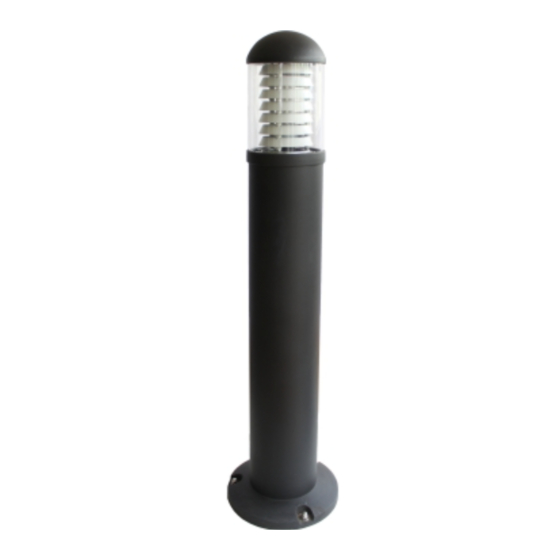

Bedford Bollard - Buried
Save These Instructions for Future Reference
Electrical products can cause death, injury, or damage to
property. Installation of this product must be carried out by a
qualified electrician, in compliance with SANS 10142 or
corresponding regulations of the country of installation. On
completion of installation, the Certificate of Compliance must
be updated.
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specifications modify designs and discontinue items without
incurring obligation and whilst every effort is made to ensure that descriptions, specifications and other
information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be
liable for any error therein.
www.regentlight.co.za
REGENT LIGHTING A DIVISION OF WAHL
INDUSTRIES.
www.regentlight.co.za
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171
July 2017

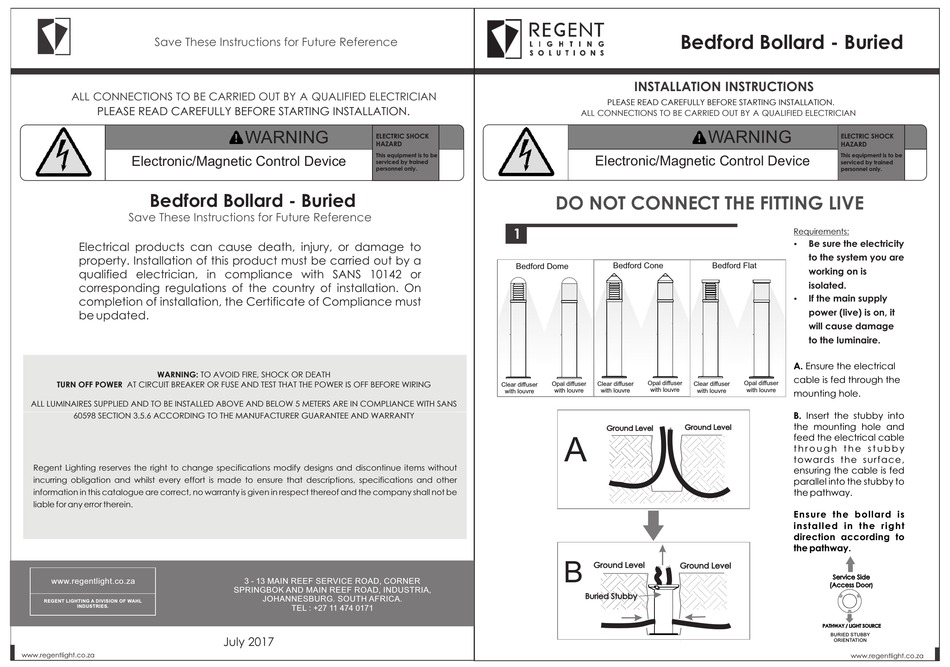

Bedford Bollard - Buried
INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Electronic/Magnetic Control Device
DO NOT CONNECT THE FITTING LIVE
1
1
Bedford Cone
Bedford Dome
0 - 1 -1 LIGHT_5 0 - 1 -1 1 1 ,1,1 LIGHT_6 1 1 ,1,1 LIGHT_6 0 - 1 -1 LIGHT_5 1 1 ,1,1 0 - 1 -1 1 1 ,1,1 LIGHT_5 0 - 1 -1 1 1 ,1,1 1 1 ,1,1 0 - 1 -1 LIGHT_6
0 - 1 -1 LIGHT_5 1 1 ,1,1 1 1 ,1,1 LIGHT_6 0 - 1 -1
Opal diffuser Clear diffuser Opal diffuser
Clear diffuser
with louvre
with louvre with louvre
with louvre
2
Ground Level
A
B
Ground Level Ground Level
Buried Stubby
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.

Requirements:

Be sure the electricity

to the system you are
Bedford Flat
working on is
isolated.
 If the main supply
power (live) is on, it
will cause damage
1 1 ,1,1 LIGHT_6 0 - 1 -1 0 - 1 -1 1 1 ,1,1 LIGHT_5 1 1 ,1,1 0 - 1 -1 1 1 ,1,1 LIGHT_6 0 - 1 -1 LIGHT_5
to the luminaire.
A. Ensure the electrical
cable is fed through the
Opal diffuser
Clear diffuser
with louvre with louvre
mounting hole.
B. Insert the stubby into
the mounting hole and
Ground Level
feed the electrical cable
t h r o u g h t h e s t u b b y
towards the surface,
ensuring the cable is fed
parallel into the stubby to
the pathway.
Ensure the bollard is
installed in the right
direction according to
the pathway.
Service Side
(Access Door
PATHWAY / LIGHT SOURCE
BURIED STUBBY
ORIENTATION
