Regent Lighting Solutions Challenger Mini Installation Instructions

Save These Instructions for Future Reference
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Magnetic/ Electronic Control Device
Challenger Mini
Save These instructions for Future Reference
Electrical products can cause death, injury, or damage to
property. Installation of this product must be carried out by a
qualified electrician, in compliance with SANS 10142 or
corresponding regulations of the country of installation. On
completion of installation, the Certificate of Compliance must
be updated.
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specifications modify designs and discontinue items without
incurring obligation and whilst every effort is made to ensure that descriptions, specifications and other
information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be
liable for any error therein.
www.regentlight.co.za
REGENT LIGHTING A DIVISION OF WAHL
INDUSTRIES.
October 2017
www.regentlight.co.za
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171

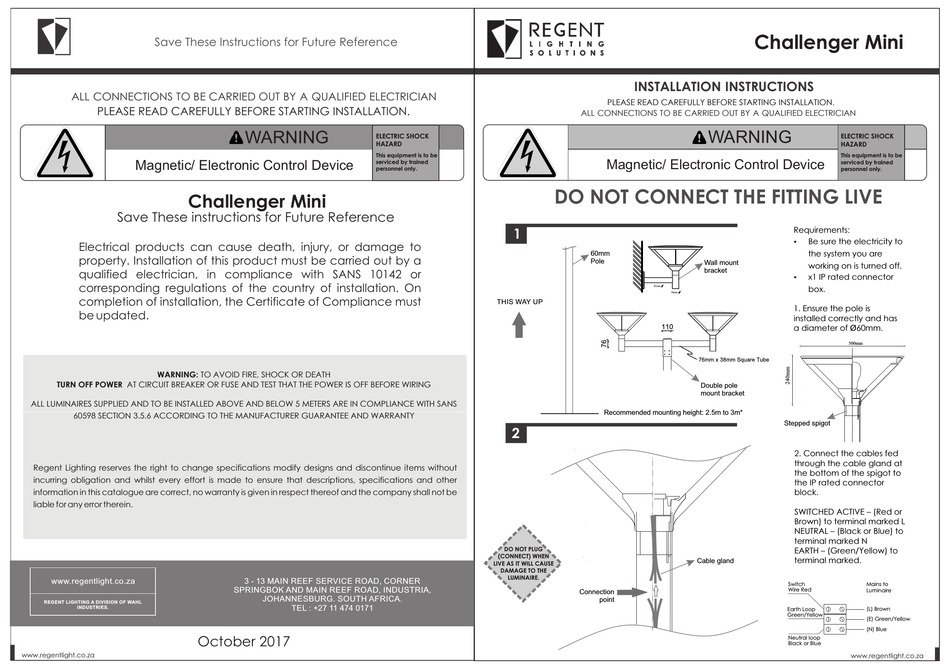

INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Magnetic/ Electronic Control Device
DO NOT CONNECT THE FITTING LIVE
1
1
60mm
Pole
THIS WAY UP
Recommended mounting height: 2.5m to 3m*
2
2
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
Connection
point
Challenger Mini
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Requirements:
Be sure the electricity to

the system you are
Wall mount
working on is turned off.
bracket
 x1 IP rated connector
box.
1. Ensure the pole is
installed correctly and has
a diameter of Ø60mm.
500mm
Double pole
mount bracket
Stepped spigot
2. Connect the cables fed
through the cable gland at
the bottom of the spigot to
the IP rated connector
block.
SWITCHED ACTIVE – (Red or
Brown) to terminal marked L
NEUTRAL – (Black or Blue) to
terminal marked N
EARTH – (Green/Yellow) to
terminal marked.
Cable gland
Switch Mains to
Wire Red Luminaire
Earth Loop (L) Brown
Green/Yellow
(E) Green/Yellow
(N) Blue
Neutral loop
Black or Blue
www.regentlight.co.za
