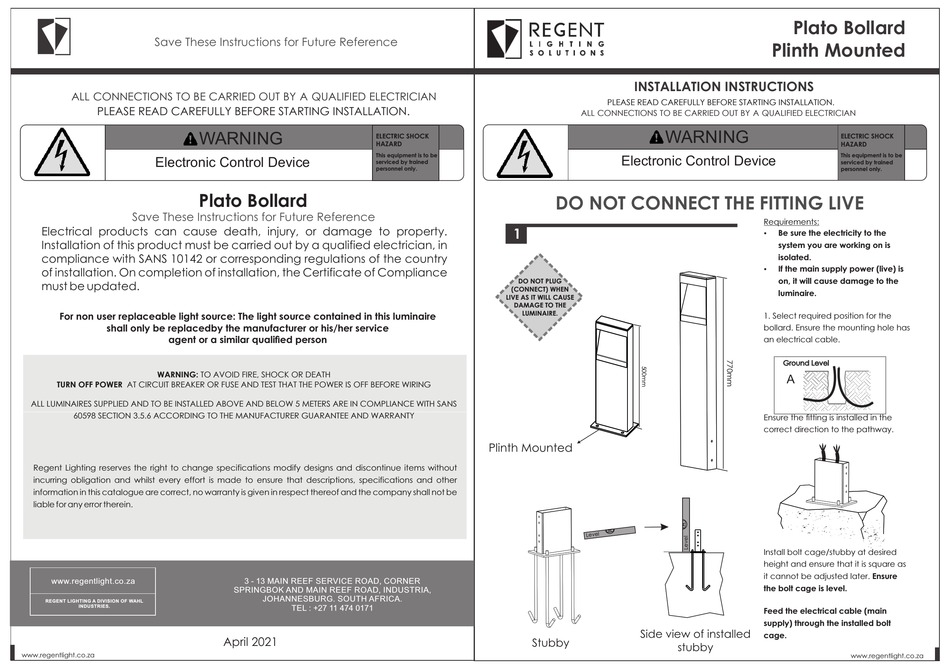

Regent Lighting Solutions Plato Manual

Save These Instructions for Future Reference
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
WARNING
Electronic Control Device
Plato Bollard
Save These Instructions for Future Reference
Electrical products can cause death, injury, or damage to property.
Installation of this product must be carried out by a qualified electrician, in
compliance with SANS 10142 or corresponding regulations of the country
of installation. On completion of installation, the Certificate of Compliance
must be updated.
For non user replaceable light source: The light source contained in this luminaire
shall only be replacedby the manufacturer or his/her service
agent or a similar qualied person
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specifications modify designs and discontinue items without
incurring obligation and whilst every effort is made to ensure that descriptions, specifications and other
information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be
liable for any error therein.
www.regentlight.co.za
REGENT LIGHTING A DIVISION OF WAHL
INDUSTRIES.
www.regentlight.co.za
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171
April 2021

INSTALLATION INSTRUCTIONS

PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
WARNING
Electronic Control Device
DO NOT CONNECT THE FITTING LIVE
1
1
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
Plinth Mounted
Side view of installed
Stubby
Plato Bollard
Plinth Mounted
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Requirements:
Ÿ Be sure the electricity to the
system you are working on is
isolated.
If the main supply power (live) is
Ÿ
on, it will cause damage to the
luminaire.
1. Select required position for the
bollard. Ensure the mounting hole has
an electrical cable.
Ground Level
A
Ensure the tting is installed in the
correct direction to the pathway.
Install bolt cage/stubby at desired
height and ensure that it is square as
it cannot be adjusted later. Ensure
the bolt cage is level.
Feed the electrical cable (main
supply) through the installed bolt
cage.
stubby
