Regent Lighting Solutions Echo Installation Instructions

Echo
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Electronic/Magnetic Control Device
Save These Instructions for Future Reference
Electrical products can cause death, injury, or damage to
property. Installation of this product must be carried out by a
qualied electrician, in compliance with SANS 10142 or
corresponding regulations of the country of installation. On
completion of installation, the Certicate of Compliance must
be updated.
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specications modify designs and discontinue items without
incurring obligation and whilst every effort is made to ensure that descriptions, specications and other
information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be
liable for any error therein.
www.regentlight.co.za
REGENT LIGHTING A DIVISION
OF WAHL INDUSTRIES.
www.regentlight.co.za
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Echo
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171
December 2019

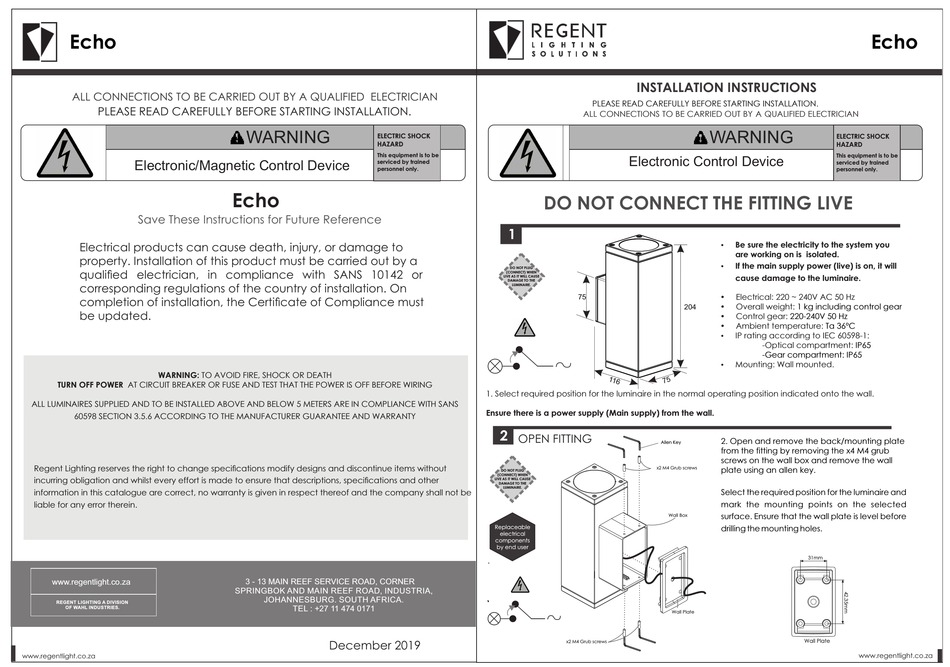

INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Electronic Control Device
DO NOT CONNECT THE FITTING LIVE
1
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
75
1. Select required position for the luminaire in the normal operating position indicated onto the wall.
Ensure there is a power supply (Main supply) from the wall.
2
OPEN FITTING
Allen Key
2
x2 M4 Grub screws
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
Replaceable
electrical
components
by end user
x2 M4 Grub screws
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Be sure the electricity to the system you
Ÿ
are working on is isolated.
If the main supply power (live) is on, it will
Ÿ
cause damage to the luminaire.
Ÿ Electrical: 220 ~ 240V AC 50 Hz
Ÿ Overall weight: 1 kg including control gear
204
Ÿ
Control gear: 220-240V 50 Hz
Ÿ Ambient temperature: Ta 36ºC
IP rating according to IEC 60598-1:
Ÿ
-Optical compartment:
-Gear compartment: IP65
Ÿ Mounting: Wall mounted.
2. Open and remove the back/mounting plate
from the fitting by removing the x4 M4
screws on the wall box and remove the wall
plate using an allen key .
Select the required position for the luminaire and
mark the mounting points on the selected
surface. Ensure that the wall plate is level before
Wall Box
drilling the mounting holes.
31mm
Wall Plate
Wall Plate
Echo
IP65
grub
