Regent Lighting Solutions T -Line Installation Instructions

Save These Instructions for Future Reference
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
Remote Electronic Control Device
Save These Instructions for Future Reference
Electrical products can cause death, injury, or damage to property.
Installation of this product must be carried out by a qualified electrician, in
compliance with SANS 10142 or corresponding regulations of the country of
installation. On completion of installation, the Certificate of Compliance must
– For non-user replaceable light sources:
"The light source contained in this luminaire shall only be replaced by the
manufacturer or his/her service agent or a similar qualied person."
WARNING: TO AVOID FIRE, SHOCK OR DEATH
TURN OFF POWER AT CIRCUIT BREAKER OR FUSE AND TEST THAT THE POWER IS OFF BEFORE WIRING
ALL LUMINAIRES SUPPLIED AND TO BE INSTALLED ABOVE AND BELOW 5 METERS ARE IN COMPLIANCE WITH SANS
60598 SECTION 3.5.6 ACCORDING TO THE MANUFACTURER GUARANTEE AND WARRANTY
Regent Lighting reserves the right to change specifications modify designs and discontinue items without
incurring obligation and whilst every effort is made to ensure that descriptions, specifications and other
information in this catalogue are correct, no warranty is given in respect thereof and the company shall not be
liable for any error therein.
www.regentlight.co.za
REGENT LIGHTING A DIVISION
OF WAHL INDUSTRIES.
www.regentlight.co.za
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
T-Line
be updated.
3 - 13 MAIN REEF SERVICE ROAD, CORNER
SPRINGBOK AND MAIN REEF ROAD, INDUSTRIA,
JOHANNESBURG. SOUTH AFRICA.
TEL : +27 11 474 0171
June 2018

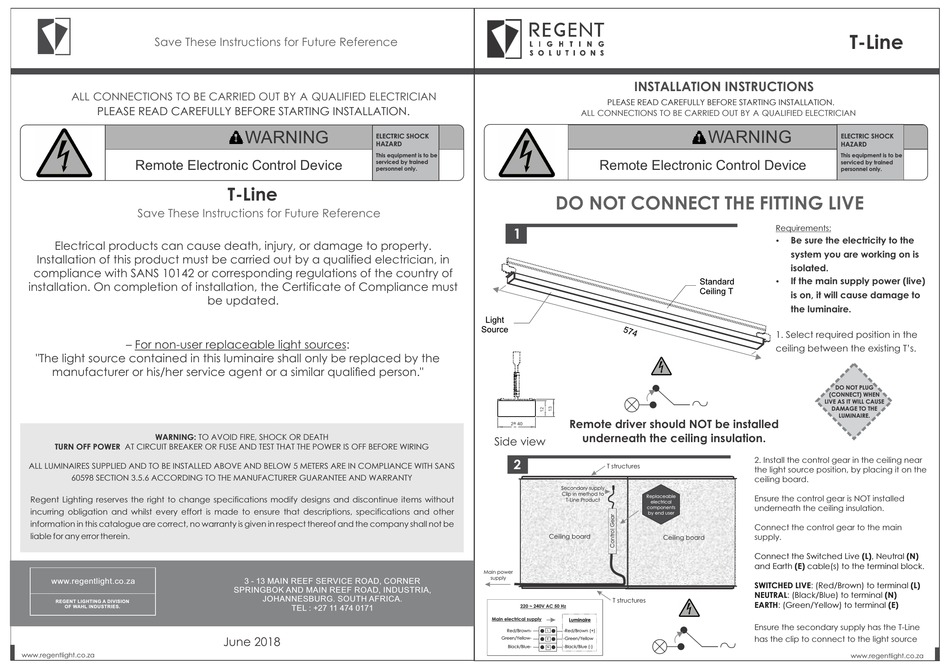

INSTALLATION INSTRUCTIONS
PLEASE READ CAREFULLY BEFORE STARTING INSTALLATION.
ALL CONNECTIONS TO BE CARRIED OUT BY A QUALIFIED ELECTRICIAN
Remote Electronic Control Device
DO NOT CONNECT THE FITTING LIVE
1
1
Remote driver should NOT be installed
2
underneath the ceiling insulation.
Side view
2
T structures
Secondary supply
Clip in method to
Replaceable
T-Line Product
electrical
components
by end user
Ceiling board
Main power
supply
T structures
220 ~ 240V AC 50 Hz
Main electrical supply
Luminaire
Red/Brown- L -Red/Brown (+)
Green/Yellow- -Green/Yellow
E
Black/Blue- -Black/Blue (-)
N
WARNING
ELECTRIC SHOCK
HAZARD
This equipment is to be
serviced by trained
personnel only.
Requirements:
Be sure the electricity to the
Ÿ
system you are working on is
isolated.
If the main supply power (live)
Ÿ
is on, it will cause damage to
the luminaire.
1. Select required position in the
ceiling between the existing T's.
DO NOT PLUG
(CONNECT) WHEN
LIVE AS IT WILL CAUSE
DAMAGE TO THE
LUMINAIRE.
2. Install the control gear in the ceiling near
the light source position, by placing it on the
ceiling board.
Ensure the control gear is NOT installed
underneath the ceiling insulation.
Connect the control gear to the main
supply.
Ceiling board
Connect the Switched Live (L), Neutral (N)
and Earth (E) cable(s) to the terminal block.
SWITCHED LIVE: (Red/Brown) to terminal (L)
NEUTRAL: (Black/Blue) to terminal (N)
EARTH: (Green/Yellow) to terminal (E)
Ensure the secondary supply has the T-Line
has the clip to connect to the light source
T-Line
www.regentlight.co.za
