Instruction Manual

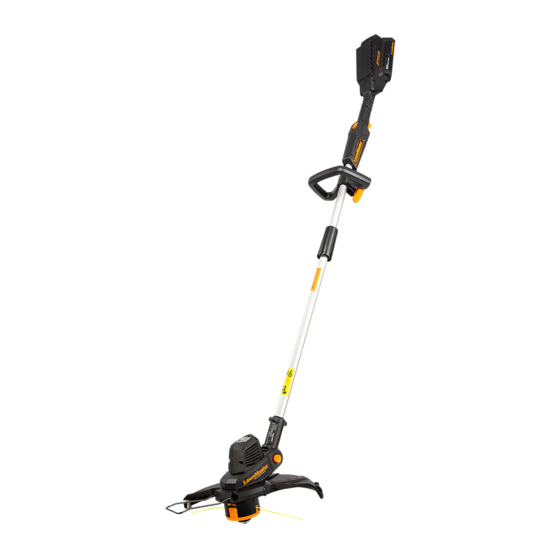

60V Max* Lithium-ion Cordless Grass Trimmer CLGT6036A
Original Instructions
WARNING:
Read all safety instructions carefully before assembling and operating
this machine. Ensure the machine has been assembled correctly and safely. Keep the
instructions safe and pass them on to any subsequent user so that the information is always
available.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for LawnMaster CLGT6036A
Summary of Contents for LawnMaster CLGT6036A
- Page 1 Instruction Manual 60V Max* Lithium-ion Cordless Grass Trimmer CLGT6036A Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always...
-
Page 4: Table Of Contents
TABLE OF CONTENTS Section Page Symbols Safety Information 7-13 In the Box Assembly Operation 15-18 Maintenance 19-20 Troubleshooting Specifications Recycling and Disposal... -
Page 5: Symbols
SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Do not expose to rain. Wear eye protection. Wear hearing protection. - Page 6 SYMBOLS SYMBOL DESIGNATION/EXPLANATION Do not dispose of battery packs in rivers or immerse in water. Do not dispose of battery packs in fire. Do not subject the battery to direct sunlight over long periods and do not leave it on or near a heat source (max. 60°C). Recycle electrical waste products in an environmentally safe way where facilities exist.
-
Page 7: Safety Information
SAFETY INFORMATION WARNING Read the instructions carefully. Be familiar with the controls and the correct use of the appliance. Personal Safety ■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 8 SAFETY INFORMATION Check for alignment of moving parts, binding of moving parts, breakage of parts, mountings and any other conditions that may affect its correct operation. Do not use the tool if any parts are damaged or defective. Have any damaged or defective parts repaired or replaced by a qualified personnel.
- Page 9 SAFETY INFORMATION ■ Only work in good daylight or appropriate and adequate artificial light. ■ Never operate the trimmer with damaged guards or without the safety guards fitted. ■ Do not fit the trimmer with a metal cutting element; this tool is designed only to be used with nylon cutting line.
- Page 10 SAFETY INFORMATION cutting line never comes into contact with the operator’s body, especially hands and feet. ■ Only operate the trimmer when the cutting line is facing away from the user. ■ Make sure the working area is free from stones, rubble, wire or other foreign bodies before operating the trimmer.
- Page 11 SAFETY INFORMATION ■ For best results, your battery tool should be charged in a location where the temperature is more than 4°C but less than 40°C. ■ Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water.
- Page 12 SAFETY INFORMATION ■ Do not use non-rechargeable batteries! ■ Do not operate the charger with a damaged cord or plug, which could cause shorting and electric shock. If damaged, immediately discontinue use. Replace the charger with the identical unit as listed in the Product Specifications in this manual.
-
Page 13: In The Box
SAFETY INFORMATION Intended Use ■ This product is intended for private domestic use only, not for any commercial trade use. It must not be used for any purposes other than those described. Any use of the machine that deviates from its intended use and is not included in these instructions is considered unauthorised use and relieves the manufacturer from his or her legal liability. -
Page 14: Assembly
ASSEMBLY Assembly Preparation ■ Carefully remove all contents from the product packaging. ■ Ensure you have all the accessories and tool(s) needed for assembly and operation. This also includes suitable personal protective equipment. Fitting the Safety Guard (See Fig. 1) ■... -
Page 15: Operation
OPERATION Switching On and Off (See Fig. 6) ■ Slide the fully charged battery into the battery chamber underneath the handle. ■ Engage and hold the lock-off safety switch. Activate the on/off trigger to operate, once started release the lock-off safety switch (Fig. 6). ■... - Page 16 OPERATION Plant protector (See Fig. 10) WARNING Only adjust the plant protector position when the product is switched off and the cutting device is at a complete stop. Use the plant protector to keep a safe distance from trees and flowers or other objects that could be hit by the cutting device (Fig.10).
- Page 17 Battery Pack Operation ■ Battery Charging ® • Use only with 60V Lawnmaster 60LFC03 battery charger. The battery charger supplied is specifically designed for the lithium-ion battery used in this garden appliance and may cause risk of fire if used with a non-compatible battery pack.
- Page 18 OPERATION ■ Align the two guide rails on the side of the battery pack with the support rails on the side of the charger. Slide the battery pack down until it locks into place (Fig. 16). ■ Connect the charger to the power supply. ■...
-
Page 19: Maintenance
MAINTENANCE General Maintenance ■ Keep all safety devices, air vents and the motor housing free of dirt and dust. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean, dry cloths to remove dirt, dust, oil, grease, etc. - Page 20 MAINTENANCE ■ Remove the empty spool and clean out any debris or grass residue from the spool cover. ■ Align the cutaway sections in the replacement spool opposite the eyelets in the holder and thread the line through. Ensure the spool is securely fitted and replace the cover (Fig. 17). CAUTION After changing the spool, run the trimmer under no load for at least a minute to verify the line and the tool are both operating correctly.
-
Page 21: Troubleshooting
TROUBLESHOOTING WARNING ONLY PERFORM THE STEPS DESCRIBED WITHIN THESE INSTRUCTIONS! WARNING REMOVE THE BATTERY PACK BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION The battery pack is not properly Insert the battery pack properly. inserted. Remove and charge the battery The battery pack is discharged. pack. -
Page 22: Specifications
SPECIFICATIONS 60V Grass Trimmer CLGT6036A Rated Voltage 60V MAX* Cutting Width 36cm Speed 6500min Sound Pressure Level (L 83.9dB(A) K=3dB Sound Power Level (L ) Guaranteed 96dB(A) Sound Power Level (L ) Measured 93dB(A) K=2.48dB Vibration (a ≤2.5m/s K=1.5m/s Cutting Line Diameter 2.0mm... -
Page 23: Recycling And Disposal
RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes throughout the EU. The machine must be delivered in rigid packaging to avoid damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly. - Page 26 Fig.1 Fig.2 Fig.3 Fig.4 Fig.5 Fig.6 Fig.7 Step 2 Step 3 Fig.8 Fig.10 Fig.9 Fig.11 Fig.12 Fig.13 Fig.14 Fig.15 Fig.16 Fig.17 Fig.18 Fig.19 Fig.20...
