Instruction Manual

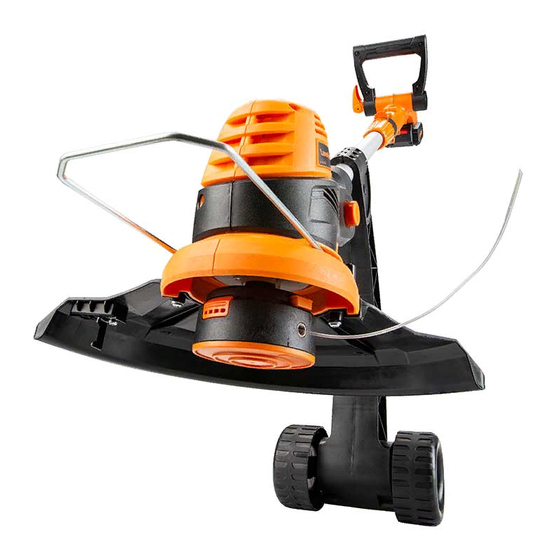

24V Lithium-ion Cordless Grass Trimmer CLGT2425S
Original Instructions
WARNING: Read all safety instructions carefully before assembling and operating this
machine. Ensure the machine has been assembled correctly and safely. Keep the instructions
safe and pass them on to any subsequent user so that the information is always available.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLGT2425S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for LawnMaster CLGT2425S

Summary of Contents for LawnMaster CLGT2425S

  • Page 1 Instruction Manual 24V Lithium-ion Cordless Grass Trimmer CLGT2425S Original Instructions WARNING: Read all safety instructions carefully before assembling and operating this machine. Ensure the machine has been assembled correctly and safely. Keep the instructions safe and pass them on to any subsequent user so that the information is always available.
  • Page 3 Fig.2 Fig.1 Fig.3 Fig.4 Fig.5 Fig.6...

  • Page 4: Table Of Contents

    TABLE OF CONTENTS Section Page Symbols Safety Information 7-13 In the Box Assembly Operation 15-20 Maintenance 21-22 Troubleshooting 23-24 Technical Data Recycling and Disposal...

  • Page 5: Symbols

    SYMBOLS The following warning symbols appear throughout this manual and indicate the appropriate safety measures you should take when operating and maintaining the appliance. SYMBOL DESIGNATION/EXPLANATION Caution Read instruction manual. Keep bystanders away. Do not expose to rain. Wear eye protection. Wear hearing protection.
  • Page 6 SYMBOLS SYMBOL DESIGNATION/EXPLANATION Do not dispose of battery packs in rivers or immerse in water. Do not dispose of battery packs in fire. Do not subject the battery to direct sunlight over long periods and do not leave it on or near a heat source (max. 60°C). Recycle electrical waste products in an environmentally safe way where facilities exist.

  • Page 7: Safety Information

    SAFETY INFORMATION WARNING Read the instructions carefully. Be familiar with the controls and the correct use of the appliance. Personal Safety ■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Page 8 SAFETY INFORMATION Check for alignment of moving parts, binding of moving parts, breakage of parts, mountings and any other conditions that may affect its correct operation. Do not use the tool if any parts are damaged or defective. Have any damaged or defective parts repaired or replaced by a qualified person.
  • Page 9 SAFETY INFORMATION ■ Only work in good daylight or appropriate and adequate artificial light. ■ Never operate the trimmer with damaged guards or without the safety guards fitted. ■ Do not fit the trimmer with a metal cutting element; this tool is designed only to be used with nylon cutting line.
  • Page 10 SAFETY INFORMATION cutting line never comes into contact with the operator’s body, especially hands and feet. ■ Only operate the trimmer when the cutting line is facing away from the user. ■ Make sure the working area is free from stones, rubble, wire or other foreign bodies before operating the trimmer.
  • Page 11 SAFETY INFORMATION ■ For best results, your battery tool should be charged in a location where the temperature is more than 4°C but less than 40°C. ■ Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water.
  • Page 12 SAFETY INFORMATION ■ Do not use non-rechargeable batteries! ■ Do not operate the charger with a damaged cord or plug, which could cause shorting and electric shock. If damaged, immediately discontinue use. Replace the charger with the identical unit as listed in the Product Specifications in this manual.

  • Page 13: In The Box

    SAFETY INFORMATION Intended Use ■ This product is intended for private domestic use only, not for any commercial trade use. It must not be used for any purposes other than those described. Any use of the machine that deviates from its intended use and is not included in these instructions is considered unauthorised use and relieves the manufacturer from his or her legal liability.

  • Page 14: Assembly

    ASSEMBLY Assembly Preparation ■ Carefully remove all contents from the product packaging. ■ Ensure you have all the accessories and tool(s) needed for assembly and operation. This also includes suitable personal protective equipment. Fitting the Safety Guard (See Fig. 1) ■...

  • Page 15: Operation

    Battery Pack Operation WARNING ® Use only with 24V Lawnmaster HYCH0132400500B or HYCH0132400500G battery charger. The battery charger supplied is specifically designed for the lithium-ion battery used in this garden appliance and may cause risk of fire if used with a non-compatible battery pack.
  • Page 16 OPERATION ■ Charger LED ( 1 ) • If the battery is not connected to the charger, a continuous green LED light indicates that the plug is plugged into an outlet socket and the battery charger is ready for operation. •...
  • Page 17 OPERATION WARNING After turning off the appliance, the trimmer head will continue to rotate for some time. Allow the trimmer head to come to a complete standstill. Keep hands and feet well away. Risk of injury! Cutting Device - Advancing the Trimmer Line (See Fig. 9) NOTE: A short or worn trimming line will not cut well.
  • Page 18 OPERATION Safety Guard WARNING The line cutting blade on the safety guard is delivered with a protective covering. Ensure this is removed before first use. Beware of sharp edges. The device is fitted with a safety guard to protect the operator against thrown objects during operation.
  • Page 19 OPERATION Pivoting Head (See Fig. 15) ■ The trimmer head has 5 different adjustable positions. ■ To adjust the trimmer head, press the head adjustment button and angle the trimmer head to the desired position (Fig. 15). Plant Protector (See Fig. 16) WARNING Only adjust the plant protector position when the product is switched off and the trimmer head is at a complete stop.
  • Page 20 OPERATION ■ Regularly remove clippings and dirt from around the spool and guard. Ensure the product is switched off and the battery removed. ■ Pay attention when performing work close to trees and bushes. The cutting device can damage sensitive bark, and damage fence posts. ■...

  • Page 21: Maintenance

    MAINTENANCE General Maintenance ■ Keep all safety devices, air vents and the motor housing free of dirt and dust. Avoid using solvents when cleaning plastic parts. Most plastics are susceptible to damage from various types of commercial solvents and may be damaged by their use. Use clean, dry cloths to remove dirt, dust, oil, grease, etc.
  • Page 22 MAINTENANCE WARNING Before replacing the spool line, make sure the battery is removed from the trimmer. The line cutting blade, located on the safety guard is sharp. Take extra care and wear protective gloves. ■ Turn the grass trimmer upside down. ■...

  • Page 23: Troubleshooting

    TROUBLESHOOTING WARNING ONLY PERFORM THE STEPS DESCRIBED WITHIN THESE INSTRUCTIONS! WARNING REMOVE THE BATTERY PACK BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE SOLUTION The battery pack is not properly Insert the battery pack properly. inserted. Remove and charge the battery The battery pack is discharged. pack.
  • Page 24 TROUBLESHOOTING Clean the battery contacts (e.g. by The battery contacts are inserting and removing the battery contaminated. several times) or replace the battery. No-charging procedure Check the mains voltage and fuse, possible. Socket outlet, fuse, mains cable if necessary, contact the after or battery charger are defective.

  • Page 25: Technical Data

    TECHNICAL DATA 24V Grass Trimmer Rated Voltage Cutting Width 25cm Speed 9200/min Sound Pressure Level (L 80dB(A) K=3dB Sound Power Level (L ) Guaranteed 96dB(A) Sound Power Level (L ) Measured 88.4dB(A) K=2.48dB Vibration (a 3.4m/s K=1.7m/s Cutting Line Diameter 1.6mm Weight (Without 2.0Ah Battery) 1.76kg...

  • Page 26: Recycling And Disposal

    RECYCLING AND DISPOSAL This marking indicates that this product should not be disposed with other household wastes throughout the EU. The machine must be delivered in rigid packaging to avoid damage during transportation. The packaging and the machine itself are manufactured from recyclable materials and should be disposed of accordingly.
