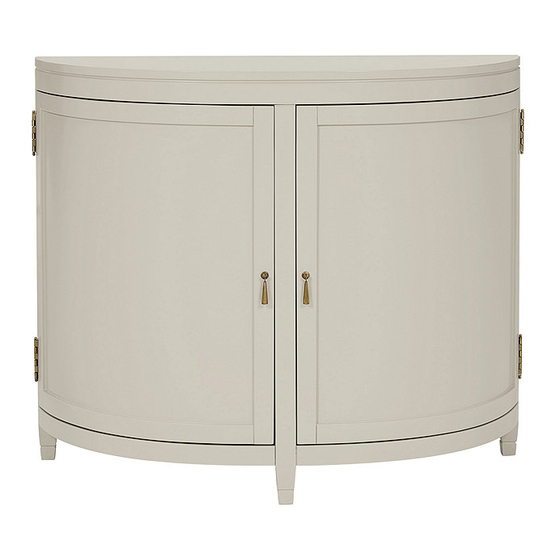

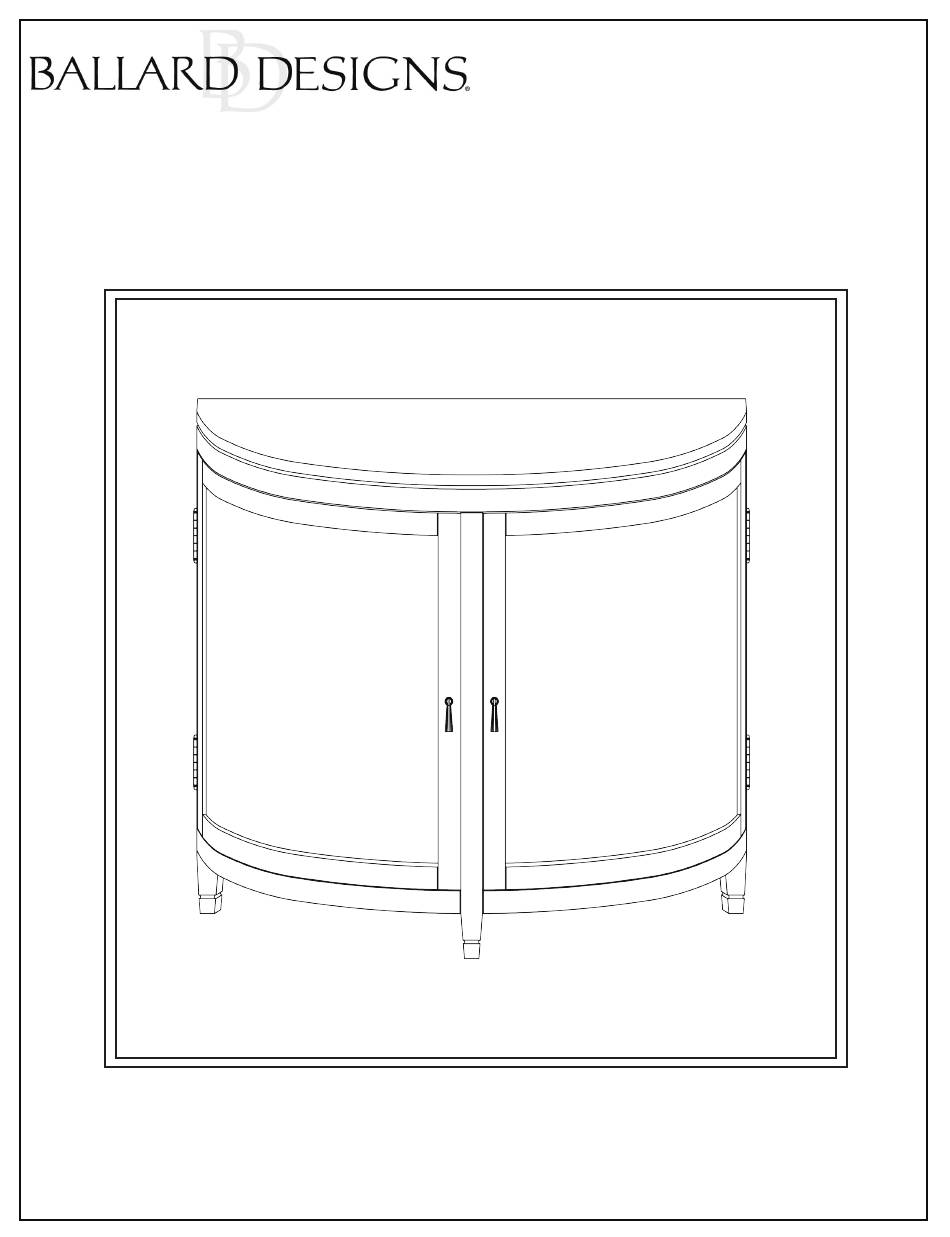

- Page 1 Customer Service: 800-367-2810 Online: www.ballarddesigns.com PRODUCT NAME: Wynn Demilune ITEM NUMBER: MS096 ASSEMBLED DIMENSIONS : 32”H x 38”W x 14”D PRODUCTS ARE NOT INTENDED MADE IN CHINA FOR COMMERCIAL USE. UPDATED: 8-19-2019 Page 1 of 4...
- Page 2 REQUIRED TOOLS: -Phillips Screwdriver Ltr. Qty. Hardware Included -Two person assembly suggested. Shelf Support Remove all parts, hardware and protective packaging from carton and carefully arrange on a clean, level, padded surface. Anti-Tip Hardware NOTE: To avoid accidentally discarding small parts or hardware, (See Page 4) retain all carton contents until assembly and installation are complete.
- Page 3 STEP 1: Gently insert Shelf Supports (A) into pre-drilled holes inside Cabinet (E). Fit Shelf (D) into Cabinet and lay upon supports. NOTE: Cabinet is equipped with Rotary Levelers located under each Leg. Gently lift Cabinet and turn Levelers clockwise/counterclockwise until level. If doors are not aligned, adjust Levelers. Cleaning &...
- Page 4 NOTE: Assemble the Bookshelf in desired location for use. WALL ANCHORING INSTALLATION: Ltr. Qty. Hardware Included Small Screw Large Screw Bracket Retention Belt 1. Locate and mark a Wall Stud behind Demilune at location for installation. 2. Corresponding to Stud location, attach one Bracket (C) to back of Demilune using Small Screw (B). 3.
