1. Bundle the drop UTP/STP cables and route them to the LAN1/PoE port.
2. Attach the cables in the cable tray of the rack.
3. Extend the cables under the AP and run in a straight line.

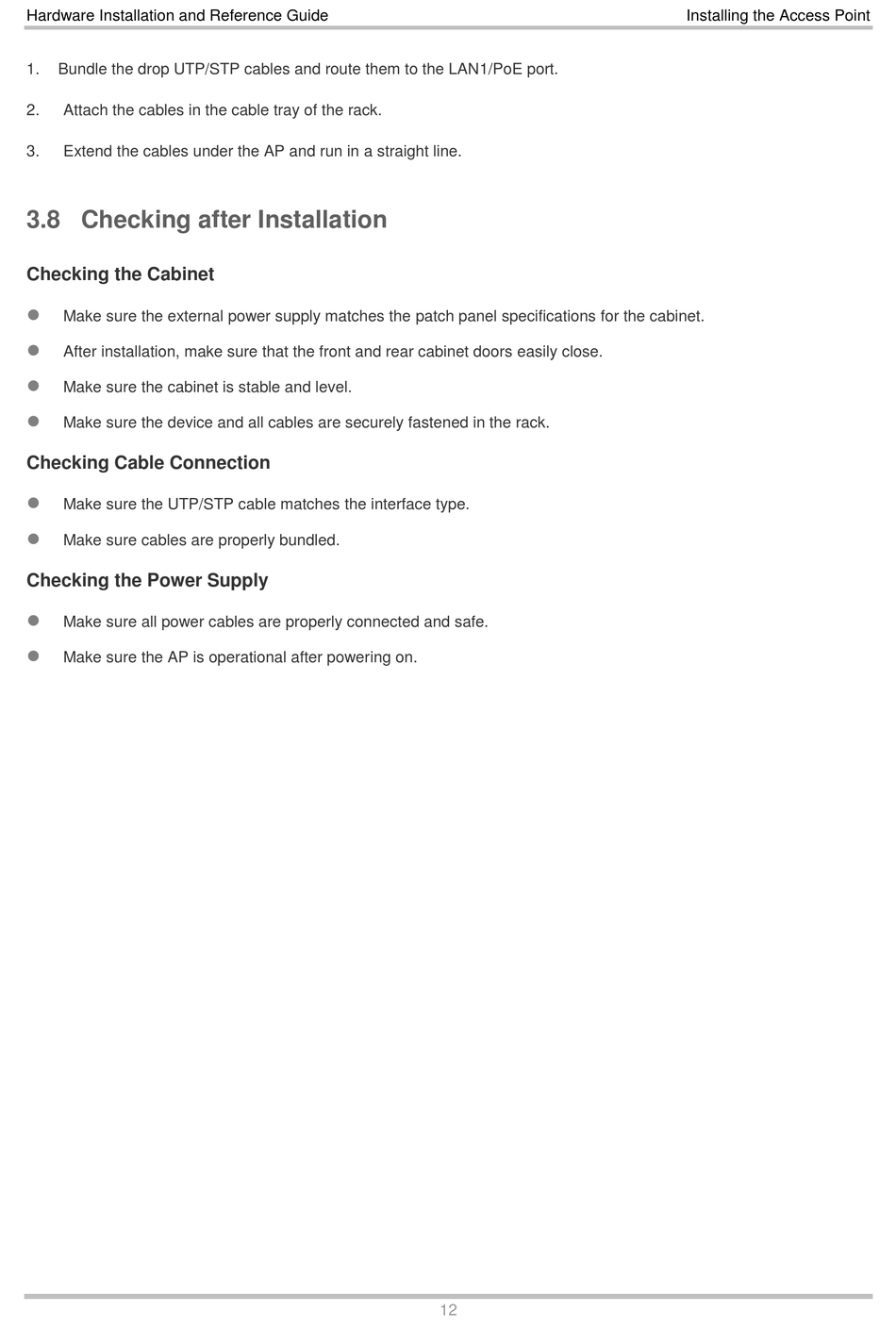

3.8 Checking after Installation

Checking the Cabinet

Make sure the external power supply matches the patch panel specifications for the cabinet.

After installation, make sure that the front and rear cabinet doors easily close.

Make sure the cabinet is stable and level.

Make sure the device and all cables are securely fastened in the rack.
Checking Cable Connection

Make sure the UTP/STP cable matches the interface type.

Make sure cables are properly bundled.
Checking the Power Supply

Make sure all power cables are properly connected and safe.

Make sure the AP is operational after powering on.
