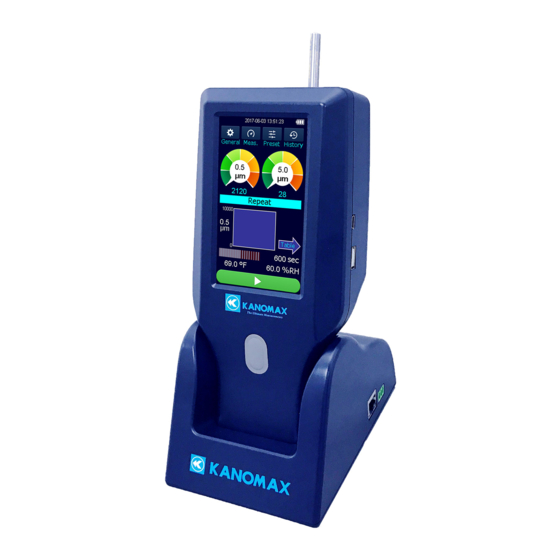

  • Page 1 Handheld Particle Counter MODEL 3888/3889 User Manual 1.800.544.2843 www.calcert.com sales@calcert.com...
  • Page 2 List of Components ■ Standard Items MODEL Functions Body 3888 Body (or 3889) AC Adaptor Operates the instrument with AC power and 3888-10 charge the internal rechargeable battery USB Cable Communicates with PC or Printer 3888-20 Zero Count Filter with tubing...
  • Page 3 Important Safety Information The symbols for the warnings used in this manual are defined below: Classifications Warning Warnings in this classification indicate risks that may result in serious injury or death if not observed. Caution Warnings in this classification indicate risks that may result in injury or damage to the surrounding objects if not observed.
  • Page 4 instructions provided in this manual. Failure to do so may cause electric shock, fire, or sensor damage. （Caution）If abnormal noise, smell, or smoke is observed, or if liquid has entered the instrument, turn off the power immediately, remove the batteries or pull out the plug.

  • Page 5: Table Of Contents

    Table of Contents §１ Part Names and Functions ....................5 §２ Getting Started ........................6 Charging Batteries ....................6 Caution ......................... 6 Checking the Temperature/Humidity Probe（Optional accessory for the MODEL 3889） .. 6 Turning the Power ON/OFF ..................6 §３ Measurement Procedures ....................

  • Page 6: １ Part Names And Functions

    §１ Part Names and Functions The cradle is an optional accessary. Names Functions 1. Inlet 2.83L/min suction volume Outer diameter 6.4mm 2. Power/Home button Turns the power ON/OFF To return to the Main screen in operation 3. USB port (for PC) Connects with your PC by using the USB cable 4.

  • Page 7: ２ Getting Started

    §２ Getting Started Charging Batteries This instrument operates on the internal rechargeable battery or the provided AC adaptor.  Connect the provided AC adaptor to start charging. It takes approximately 5 hours to charge the battery completely. If the battery’s run-time becomes shorter, the battery is replaceable. Open the ...

  • Page 8: Measurement

    Measurement Use the General setup and Measurement setup sub-menus to configure the necessary  settings. Set the measurement conditions from the Measurement mode. You can also select the  measurement conditions from the Preset. Return to the Main screen. Press the Start button to perform a measurement. ...

  • Page 9: ４ User Interface

    §４ User Interface Main Screen There are four configurations for the main screen that can be selected to best suit your  purposes. (The figures below show the user interfaces of 6 channel Model 3889.) From each Main screen, you can move to sub-menu screens. Table Table Cumulative...
  • Page 10 Icons Names Functions Opens the menus to set the unit, calendar, data, General setting sound, language display instrument information Measurement Opens the menu to set the mode, alarm, save, setting remote and temperature/humidity Preset Opens the menu to set or select up to 18 Presets History Views the historical data or measurements Change chart...

  • Page 11: General Setting

    Icons Names Functions Displays the selected measurement modes Display Mode Main Repeat Repeat Single Single Continuous Continuous Calculation Calculation Mode Display Displays the selected preset modes Display Mode Preset 1 Preset 2 Preset 3 Repeat P1(Repeat) P2(Repeat) P3(Repeat) Single P1(Single) P2(Single) P3(Single) Continuous...
  • Page 12 Icons Names Functions Confirms the information and perform operation on the entire measured data Memory remaining: Displays the ratio of the free space to the  whole memory capacity. Number of Records: Displays the number of the stored  records. Copy: Copies all files to the USB flash memory.

  • Page 13: Measurement Setting

    Measurement setting Select [Measurement Setup] in the Main screen to set the mode, alarm, save, remote, and  temperature/humidity. Icons Names Functions Selects 6 options of the measurement modes. Measurements will be performed under the latest mode setting. Repeat mode: Repeats the measurement of configured sampling ...
  • Page 14 Items Description Range Location Sets measurement locations by number. From 1 to 99 Sampling Sets the sampling time of 1 cycle. From 6 sec. to time 99 min. 59 sec. Repeat Sets the number of repeat. From 2 to 999 count Interval Sets the interval between the starting time...

  • Page 15: Preset

    Preset Select [Preset] in the Main screen to set and select measurement conditions.  Three options of Preset number provide 6 measurement modes each; therefore 18  measurement conditions in total can be preset. When setting the Preset, select one of the 18 measurement modes in the Step 3, then set ...

  • Page 16: Print Example

    Print Example The following figures show print examples of 6 channel model. (1) Repeat mode (3) Calculation mode 2017/3/30 11: 02 E= - - - 2017/3/30 11: 02 E= - - - Repeat Number Calculation Number Location Location S-Time 00:21 S-Time 00:21 I -Time...
  • Page 17 (4) ISO mode (5) GB mode 2017/3/30 11: 02 E= - - - 2017/3/30 11: 02 E= - - - Number From Number From S-Time 00:21 S-Time 00:21 I -Time 00:21 I -Time 00:21 - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - Piont=001 Times=001...

  • Page 18: Screen Transition

    Screen Transition The screens are structured by 6 layers and the operations are mainly performed from the  Layer 2 and higher. The Main screen for ready to measure is displayed when the instrument is not in the  measuring process. The Main screen for measurement is displayed when performing measurements.

  • Page 19: Specifications

    §５ Specifications Product Handheld Particle Counter 3888 (3-channel model) Model 3889 (6-channel model) Measuring Light scattering method 6 channels (0.3, 0.5, 1.0, 3.0, 5.0, 10.0µm） Size distribution 3 channels (0.3, 0.5, 5.0µm） 0.1CFM (2.83L/min) Flow rate Accuracy: ±5% (Compliant with JIS B9921 and ISO21501-4）...
  • Page 20 USB (Host: for printer and USB flash memory, Standard Communication Device: for PC） Cradle (Option) Ethernet, Wi-Fi, and RS485 (9600, 19200, 38400 baud) Media Internal memory Recording Number and media Up to 10,000 records in CSV format format Language English, Japanese, Chinese, and Spanish Internal supply Li-ion rechargeable battery (Replaceable）...

  • Page 21: Troubleshooting

    §６ Troubleshooting Symptoms Possible causes(s) → Solution(s) Reference The AC adapter is not connected properly. The display does not → Confirm the AC adapter and power cable. appear when the power is Low battery turned ON. → Replace the batteries. →...

  • Page 22: ７ Warranty And After Service

    PRODUCT as determined by KUI. Warranty for such replacements shall not extend the original warranty period of the defective PRODUCT. To obtain service under this warranty, you must notify Kanomax USA, Inc. on or before the expiration of the warranty period to obtain directions for returning the defective product. You are responsible for all return shipping charges to the authorized Kanomax service center.
