Campbell 27106T Product Manual

Vertical propeller anemometer
Hide thumbs Also See for 27106T:
Table of Contents

Advertisement

Quick Links

Download this manual
Revision: 01/2023
Copyright © 1984 – 2023
Campbell Scientific, Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 27106T and is the answer not in the manual?

Questions and answers

Related Manuals for Campbell 27106T

Summary of Contents for Campbell 27106T

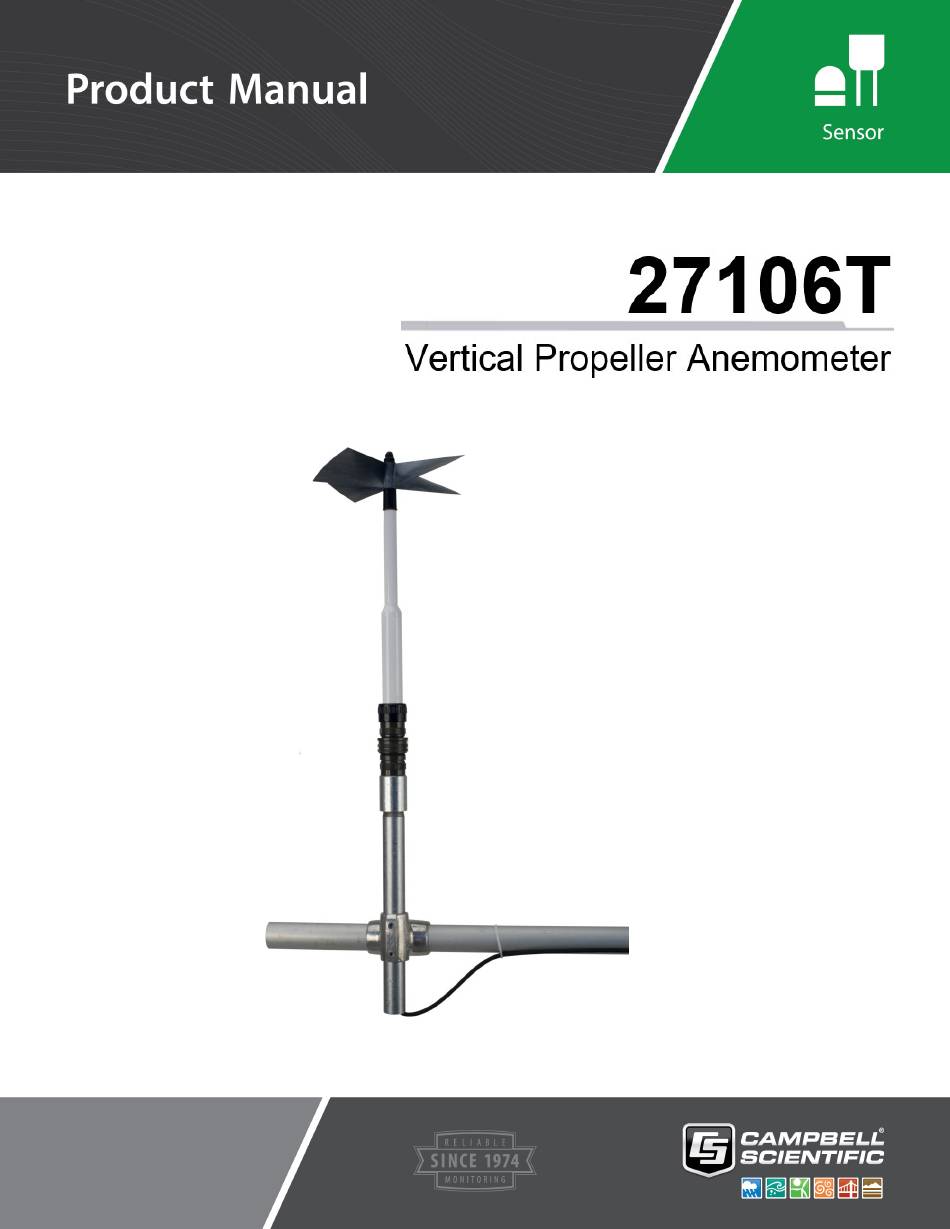

  • Page 1 Revision: 01/2023 Copyright © 1984 – 2023 Campbell Scientific, Inc.

  • Page 2: Table Of Contents

    Table of contents 1. Introduction 2. Precautions 3. Initial inspection 4. QuickStart 5. Overview 6. Specifications 7. Installation 7.1 Wiring 7.2 Programming 7.2.1 VoltSE() instruction 7.2.2 Multiplier and offset 7.3 Siting 7.4 Assembly and mounting 8. Maintenance and troubleshooting 8.1 Maintenance 8.1.1 Flange bearing replacement 8.1.2 Tach-generator replacement 8.2 Troubleshooting...

  • Page 3: Introduction

    Upon receipt of your shipment, immediately open the shipping carton and ensure that you have all of the 27106T components. If an item is not initially visible, remove the foam from the shipping carton and thoroughly inspect both sides of the foam for the item. Immediately contact Campbell Scientific if any item is missing.

  • Page 4: Quickstart

    Short Cut is available as a download on www.campbellsci.com . It is included in installations of LoggerNet, RTDAQ, or PC400. Use the following procedure to get started. 1. Open Short Cut and create a new program. 2. Double-click the data logger model. 27106T Vertical Propeller Anemometer...
  • Page 5 3. In the Available Sensors and Devices box, type 27106T. You can also locate the sensor in the Sensors > Meteorological > Wind Speed & Direction folder. Double-click 27106T Wind Speed Sensor. The units default to meters/second, which can be changed by clicking the Wind Speed box and selecting one of the other options.
  • Page 6 9. If the sensor is connected to the data logger, check the output of the sensor in the data display in LoggerNet, RTDAQ, or PC400 to make sure it is making reasonable measurements. 27106T Vertical Propeller Anemometer...

  • Page 7: Overview

    The transducer converts the propeller rotation to a DC voltage that is linearly proportional to air velocity. The 27106T connects directly to a Campbell Scientific data logger, which measures the 27106T signal and converts the signal to engineering units (mph, m/s, knots).

  • Page 8: Installation

    6). Short Cut does this work for you. See QuickStart (p. 2) for a Short Cut tutorial. 7.1 Wiring Connections to Campbell Scientific data loggers are given in Table 7-1 (p. 6). Table 7-1: Wire color, wire function, and data logger connection...

  • Page 9: Voltse() Instruction

    VoltSE() 7.2.1 instruction VoltSE() measurement instruction programs the data logger to measure the 27106T. VoltSE(Dest, Reps, Range, SEChan, MeasOff, SettlingTime, Integ/fnotch, Mult, Offset) For Range, use mV2500 (CR300, CR1000) or mV5000 (CR6, CR1000X, CR3000). If the anemometer will be in electrically noisy environments, use 50 Hz or 60 Hz rejection for...

  • Page 10: Siting

    Using the multiplier is not necessary when the anemometer is used in a UVW configuration with R.M. Young model 26601UVW Translator. 7.3 Siting The 27106T should be oriented with the propeller facing the predominant flow of air being measured. No obstacle should interfere with the vertical air flow from either the up or down direction.

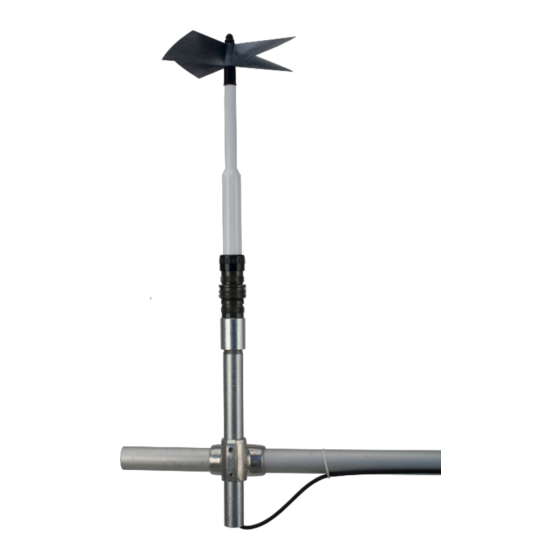

  • Page 11 (Figure 7-1 [p. 9]). Figure 7-1. 27106T mounted to a crossarm via a Nu-Rail fitting 4. Remove the dust cap from the mating connector and attach it with the sensor connector. The cable comes routed through the 3/4-inch IPS pipe to the mating connector.

  • Page 12: Maintenance And Troubleshooting

    The 27106T can also use a CM221 Right-Angle Mounting Kit; see the following figure. The CM221 uses U-bolts to secure the sensor to a crossarm. Figure 7-2. CM221 Right-Angle Mounting Kit 8. Maintenance and troubleshooting NOTE: All factory repairs and replacements require a returned material authorization (RMA) and completion of the “Declaration of Hazardous Material and Decontamination”...

  • Page 13: Tach-Generator Replacement

    Anemometer Bearing Torque Disk (available from R.M. Young). If, after replacing bearings, the torque is still too high, check the tach-generator. If the bearings need to be replaced, have either Campbell Scientific or a qualified technician replace them by using the following procedure: 1.

  • Page 14: Troubleshooting

    Holmes, R.M., Gill, G.C., and Carson, H.W., “A Propeller Type Vertical Anemometer”, Journal of Applied Meteorology, Vol 3, 1964, pp. 802-804 Drinkow, R., “A Solution to the Paired Gill-Anemometer Response Function”, Journal of Applied Meteorology, Vol 11, 1972, pp. 7-80. 27106T Vertical Propeller Anemometer...
  • Page 15 Mean Wind Vector Perpendicular to the Axis of Rotation”, Boundary-Layer Meteorology, Vol 6, 1974, pp. 363-379. McMichael, J.M., and Klebanoff, P. S., “The Dynamic Response of Helicoid Anemometers”, NBSIR 75-772, National Bureau of Standards, 1975. R.M Young Model 27106 Gill Propeller Anemometer Manual PN: 27106-90, Rev: D030106 27106T Vertical Propeller Anemometer...

  • Page 16: Appendix A. Importing Short Cut Code Into Crbasic Editor

    Block. This adds an apostrophe (') to the beginning of each of the highlighted lines, which instructs the data logger compiler to ignore those lines when compiling. The Comment Block feature is demonstrated at about 5:10 in the CRBasic | Features video 27106T Vertical Propeller Anemometer...

  • Page 17: Appendix B. Example Program

    Appendix B. Example program The following program measures the 27106T every second, and stores the maximum, minimum, and average wind speed every 10 minutes. Wiring for the example is given in Table B-1 (p. 15). Table B-1: Wiring for example program...
  • Page 18 See Product Details on the Ordering Information pages at www.campbellsci.com . Other manufacturer's products, that are resold by Campbell Scientific, are warranted only to the limits extended by the original manufacturer. Refer to www.campbellsci.com/terms#warranty for more information.
  • Page 19 To obtain a Returned Materials Authorization or Repair Reference number, contact your CAMPBELL SCIENTIFIC regional office. Please write the issued number clearly on the outside of the shipping container and ship as directed. For all returns, the customer must provide a “Statement of Product Cleanliness and Decontamination”...
  • Page 20 Do not recharge, disassemble, heat above 100 °C (212 °F), solder directly to the cell, incinerate, or expose contents to water. Dispose of spent batteries properly. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR...
  • Page 21 Campbell Scientific Regional Offices Australia France Thailand Location: Garbutt, QLD Australia Location: Vincennes, France Location: Bangkok, Thailand Phone: 61.7.4401.7700 Phone: 0033.0.1.56.45.15.20 Phone: 66.2.719.3399 Email: info@campbellsci.com.au Email: info@campbellsci.fr Email: info@campbellsci.asia Website: www.campbellsci.com.au Website: www.campbellsci.fr Website: www.campbellsci.asia Brazil Germany Location: São Paulo, SP Brazil...
