Campbell CS106 User Manual

Barometric pressure sensor
Hide thumbs Also See for CS106:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction Manual

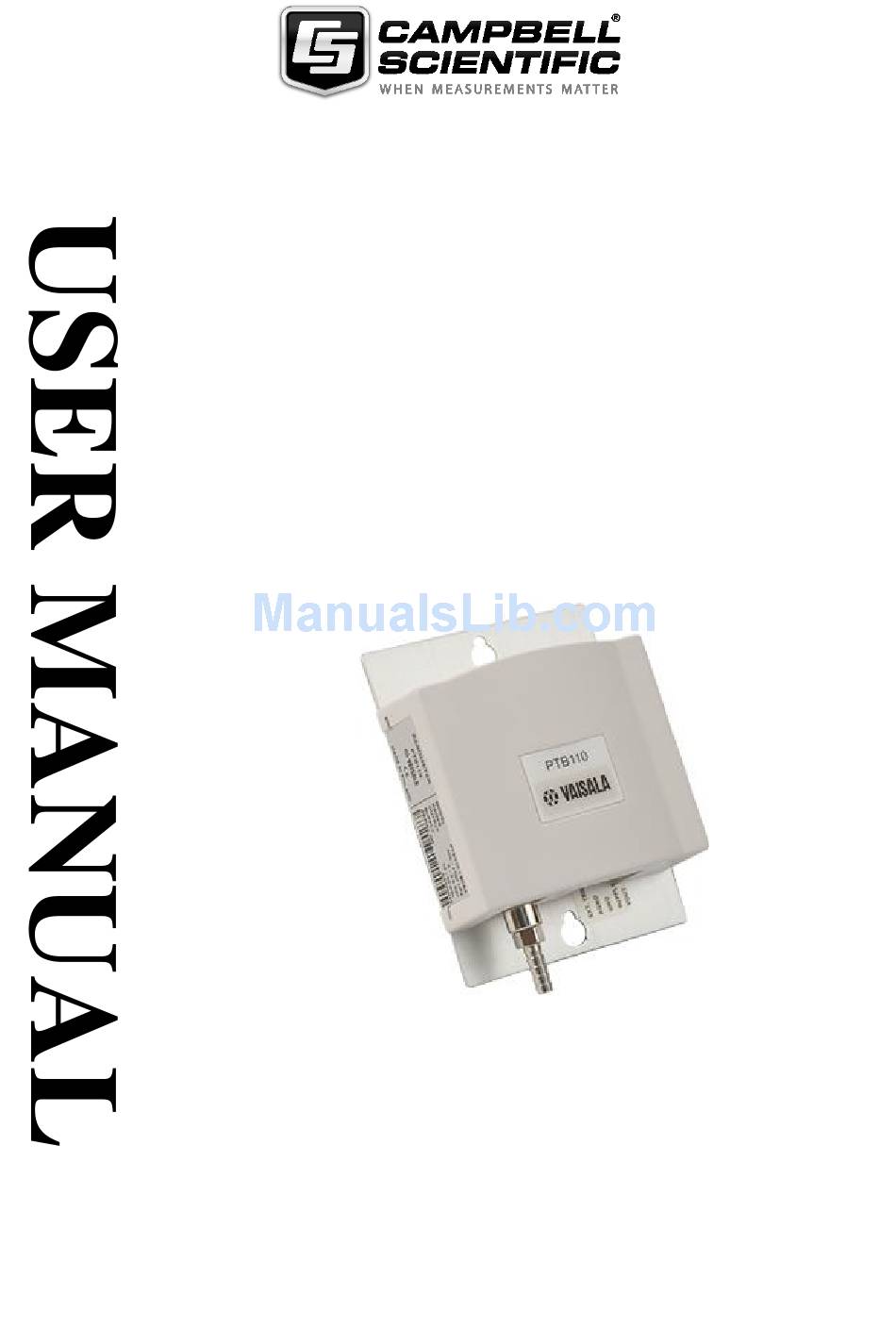

CS106
Barometric

Pressure Sensor

Issued: 12.12.17
Copyright © 1995-2017 Campbell Scientific, Inc.
Printed under licence by Campbell Scientific Ltd.
CSL 713

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CS106 and is the answer not in the manual?

Questions and answers

Related Manuals for Campbell CS106

Summary of Contents for Campbell CS106

  • Page 1: Pressure Sensor

    CS106 Barometric Pressure Sensor Issued: 12.12.17 Copyright © 1995-2017 Campbell Scientific, Inc. Printed under licence by Campbell Scientific Ltd. CSL 713...
  • Page 3 Quotations for repairs can be given on request. It is the policy of Campbell Scientific to protect the health of its employees and provide a safe working environment, in support of this policy a “Declaration of Hazardous Material and Decontamination”...

  • Page 5: About This Manual

    Campbell Scientific Ltd can advise on the recycling of the equipment and in some cases arrange collection and the correct disposal of it, although charges may apply for some items or territories.
  • Page 7 • Periodically (at least yearly) check electrical ground connections. WHILE EVERY ATTEMPT IS MADE TO EMBODY THE HIGHEST DEGREE OF SAFETY IN ALL CAMPBELL SCIENTIFIC PRODUCTS, THE CUSTOMER ASSUMES ALL RISK FROM ANY INJURY RESULTING FROM IMPROPER INSTALLATION, USE, OR MAINTENANCE OF TRIPODS, TOWERS, OR ATTACHMENTS TO TRIPODS AND TOWERS...

  • Page 9: Table Of Contents

    Contents PDF viewers: These page numbers refer to the printed version of this document. Use the PDF reader bookmarks tab for links to specific sections. 1. Introduction ..............1 2. Cautionary Statements ..........1 3. Initial Inspection ............1 4. Quickstart ..............1 5.
  • Page 10 Edlog Program ................. B-3 Figures 7-1. CS106 jumper settings ................. 6 7-2. ENC100 is a very small enclosure that can house one CS106 ..... 7 7-3. CS106 wiring diagram ................. 8 7-4. Connector key attached to 5-pin screw terminal plug connector ..9 8-1.

  • Page 11: Introduction

    File damage claims with the shipping company. Quickstart Short Cut is an easy way to program your datalogger to measure the CS106 and assign datalogger wiring terminals. Use the following procedure to get started. Install Short Cut by clicking on the install file icon. Get the install file from either www.campbellsci.com, the ResourceDVD, or find it in installations of...
  • Page 12 CS106 Barometric Pressure Sensor When Short Cut opens, select New Program. Select Datalogger Model and Scan Interval (default of 5 seconds is OK for most applications). Click Next.
  • Page 13 User Manual Under the Available Sensors and Devices list, select Sensors | Meteorological | Barometric Pressure folder. Select CS106 Barometric Pressure Sensor. Click to move the selection to the Selected device window. Enter the Sea Level Elevation Correction. The default units for the sea level elevation correction is metres;...

  • Page 14: Overview

    (ABS/PC blend) fitted with an intake port for pressure equalization. The CS106 outputs a linear 0 to 2.5 Vdc signal that corresponds to 500 to 1100 mb. It can be operated in a shutdown or normal mode (see Section 7.1, Jumper Settings).

  • Page 15: General

    CS106 on and off with a control port or excitation channel; to use the excitation channel, the datalogger must be able to provide an excitation voltage of 5 Vdc. When the jumper is installed, the CS106 is in normal mode and powered continuously.

  • Page 16: Mounting In The Enclosure

    Campbell Scientific also offers the ENC100 for situations where it is desirable to house the CS106 in its own enclosure (see Figure 7-2). The ENC100 is a 17 cm (6.7 in) x 13.9 cm (5.5 in) x 9.3 cm (3.7 in) enclosure that includes a...

  • Page 17: Wiring

    User Manual Figure 7-2. ENC100 is a very small enclosure that can house one CS106 Remember that for the sensor to detect the external ambient pressure, the enclosure must vent to the atmosphere (i.e., not be “hermetically sealed”). Enclosures purchased from Campbell Scientific properly vent to the atmosphere.

  • Page 18: Cs106 Wiring Diagram

    See Table 3-1 Black – Power Ground (GND) Table 7-1 Control Port or Excitation Channel Green – Control (EXT. TRIG) Control Port or Excitation Channel Ground or Analog Ground Clear – Shield (G or AGND) Ground or Analogue Ground Figure 7-3. CS106 wiring diagram...

  • Page 19: 5-Pin Screw Terminal Plug Connector

    This connector is removable and may be replaced. The replacement connector may come with a connector key attached to it to ensure that the connector is plugged into the CS106 right side up (see Figure 7-4). When the connector is right side up, it will easily plug into the barometer.

  • Page 20: Programming

    In most weather station applications, measuring the barometer pressure once an hour is adequate. See Appendix B, Example Programs, for more information. 7.4.2 Edlog Instructions The Volt (SE) (P1) measurement instruction programs Edlog dataloggers (CR500, CR510, CR10(X), CR23X, CR7, and 21X) to measure the CS106.

  • Page 21: Operation

    User Manual Volt (SE) (P1) Reps 2500 mV 60 Hz Rejection Range SE Channel Loc [ CS106 0.240 Multiplier Offset At sea level, a multiplier of 0.24 and an offset of 500 will report the barometric pressure in mbar or hPa. The offset will need to be adjusted if the barometer is not at sea level (see Section 8.5, Correcting Pressure to Sea Level).

  • Page 22: Long Lead Lengths

    Torr 0.75006 Long Lead Lengths There is a 0.06 mV/foot voltage drop in the CS106 signal leads. This voltage drop, in long lead lengths, will raise the barometric reading by approximately 1.44 mb per 100 feet. For lead lengths greater than 20 feet, use the differential instruction (VoltDiff() in CRBasic or Volt (DIFF) (P2) in Edlog) to measure the CS106.

  • Page 23: Maintenance And Calibration

    Vaisala recommends recalibration every two years under normal use. In areas where a lot of contaminants are present, recalibration every year is recommended. Contact Campbell Scientific Ltd for an RMA number before returning the sensor for recalibration. Should you lose the five terminal connector (pn #16004), the replacement part can be purchased from Campbell Scientific Ltd.

  • Page 25: Importing Short Cut Code Into Crbasic Editor

    Appendix A. Importing Short Cut Code Into CRBasic Editor This tutorial shows:  How to import a Short Cut program into a program editor for additional refinement.  How to import a wiring diagram from Short Cut into the comments of a custom program.

  • Page 26: Edlog

    Appendix A. Importing Short Cut Code Into CRBasic Editor Import wiring information to the program by opening the associated .DEF file. Copy and paste the section beginning with heading “-Wiring for CRXXX–” into the CRBasic program, usually at the head of the file. After pasting, edit the information such that a ' character (single quotation mark) begins each line.

  • Page 27: Example Programs

    In the example, the CR1000 measures the CS106 once an hour. To do this, the CR1000 uses a control port to turn on the CS106 one minute before the top of the hour. On the hour, the datalogger measures the CS106, and then turns the CS106 off.

  • Page 28: Example Cr1000 Program Using Pipeline Mode

    Although this example is for the CR1000, other CRBasic dataloggers, such as the CR6, CR200(X), CR800, CR850, CR3000, and CR9000(X) are programmed similarly. In the example, the CR1000 measures the CS106 once an hour in a program that runs at 1 Hz. In order to keep the CR1000 running in a pipeline mode, the measurement instruction is placed outside the “If”...

  • Page 29: Edlog Program

    CR510, CR23X, 21X, and CR7, are programmed similarly. In the example, the CR10X turns on the CS106 one minute before the top of the hour using a control port. On the hour the datalogger measures the CS106, and then it turns the CS106 off.
  • Page 30 Appendix B. Example Programs *Table 3 Subroutines End Program -Input Locations- 1 CS106 1 1 1...
  • Page 32 CAMPBELL SCIENTIFIC COMPANIES Campbell Scientific, Inc. (CSI) 815 West 1800 North Campbell Scientific Centro Caribe S.A. (CSCC) Logan, Utah 84321 300N Cementerio, Edificio Breller UNITED STATES Santo Domingo, Heredia 40305  COSTA RICA www.campbellsci.com info@campbellsci.com  www.campbellsci.cc info@campbellsci.cc Campbell Scientific Africa Pty. Ltd. (CSAf) PO Box 2450 Campbell Scientific Ltd.
